When we needed heavy-duty shelving for our new shed, we followed a clear tutorial from Ana White. These shelves hold heavy items like power tools and paint cans and are surprisingly easy to build — even for beginners.
We liked this approach so much we repeated it in the beach-house shed and the small shed at our current home. These long shelves with generous spacing create flexible storage and easy access to bulky items. They’re also adaptable to almost any space and especially straightforward to install when you can screw directly into exposed wall studs.
Tools & Materials Needed
The materials list is short, which makes this a great option when you need quick, sturdy shelving for a garage or shed.
- 2×4 boards
- 1/2″ plywood, MDF, or scrap wood for shelf tops
- Miter saw
- Table saw or circular saw
- Pocket hole jig (optional but helpful)
- Tape measure
- Long level
- Nail gun (optional)
- Drill and wood screws
- Stud finder (optional)
How much lumber you need depends on the wall length and the number of shelves. We usually build from the floor to about 18″ below the ceiling to leave top clearance for tall items.
DIY Garage Shelves Tutorial
Overview of the build steps:
- Step 1: Cut pairs of 2×4 shelf supports
- Step 2: Hang one 2×4 from each pair on the wall
- Step 3: Temporarily screw the other 2×4 to each mounted board
- Step 4: Attach vertical supports
- Step 5: Remove the temporary screws
- Step 6: Add side pieces to connect front and back supports
- Step 7: Nail or screw the plywood shelf tops in place
This method reduces guesswork when lining up shelves and results in a very sturdy system.
Step 1: Cut Pairs Of 2×4 Shelf Supports

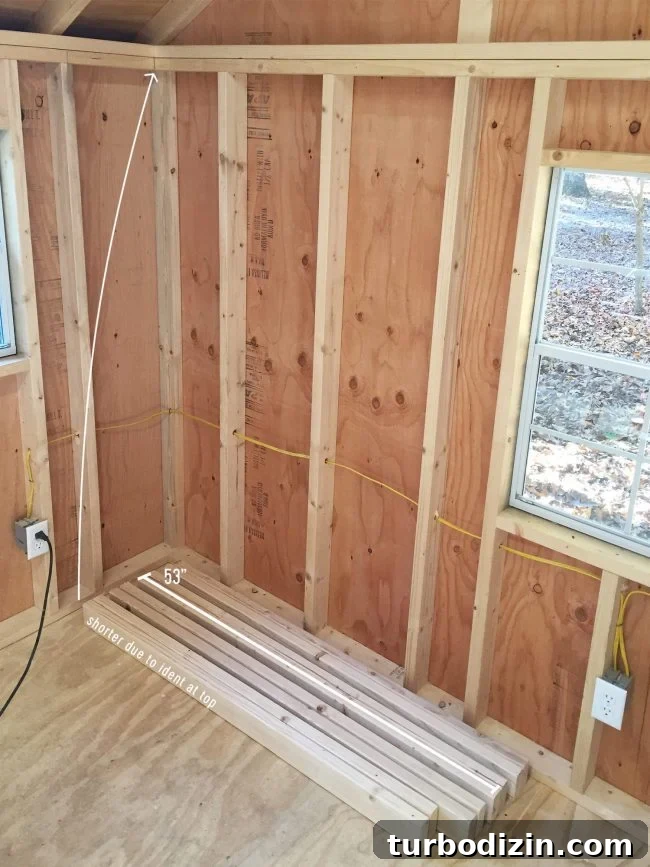

I built ours along a wall next to a window. I cut four pairs of matching 2×4s with a miter saw to span the distance between the corner and the window (53″ in our case). Each pair forms the bottom of a shelf: one board fastened to the wall and one forming the front edge.

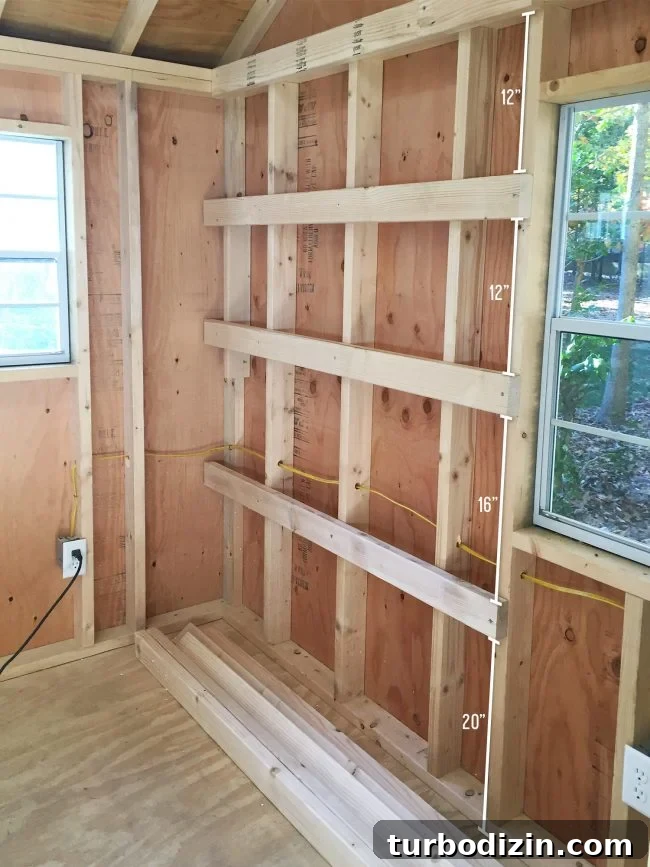

Step 2: Hang One 2×4 From Each Pair

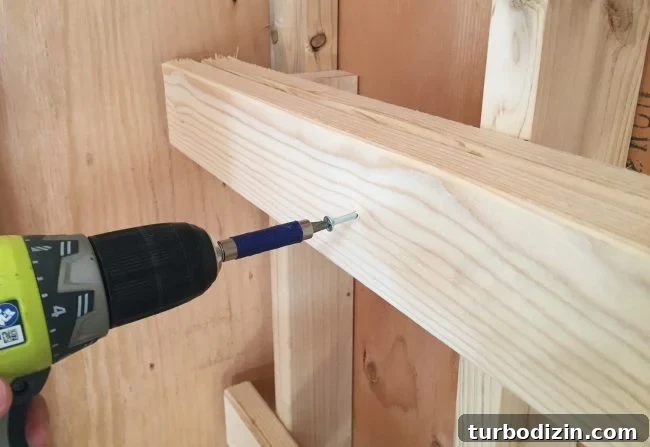

Using a level and tape measure, fasten one board of each pair to the wall with long screws driven into studs. These wall-mounted boards are what the shelves will rest on. Choose shelf spacing to suit the items you plan to store — make the bottom shelf taller for large items and leave space at the top so you can fit taller items below the ceiling.
A taller bottom shelf makes it easier to store and lift heavy items. Adjust heights based on what you need to store, such as totes, paint cans, or power tools.

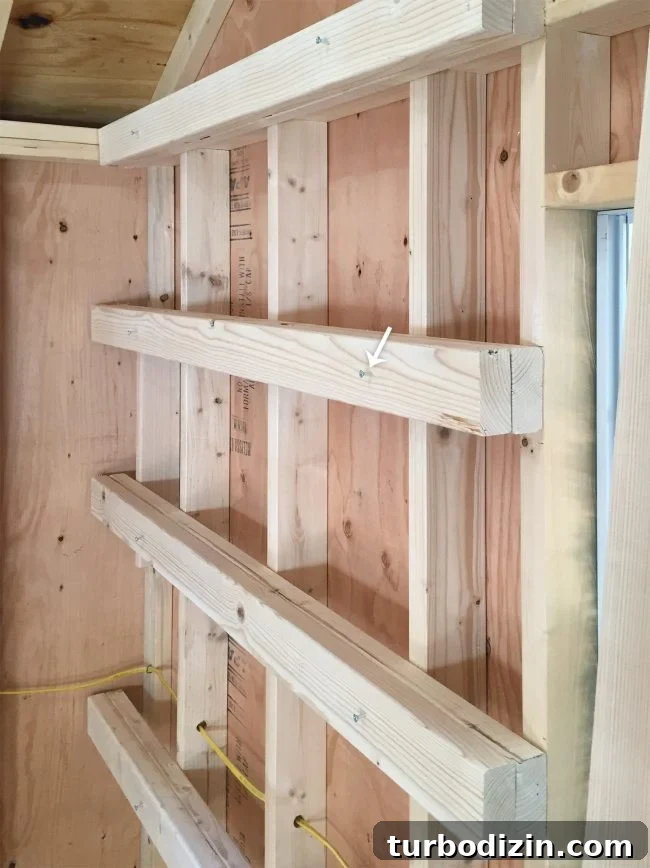

Step 3: Screw The Other 2×4 Into The First (Temporarily)
Loosely attach the matching front board over each wall-mounted board so the pairs line up perfectly. Use two screws per board but don’t drive them all the way in — just enough to hold the front pieces in place temporarily.

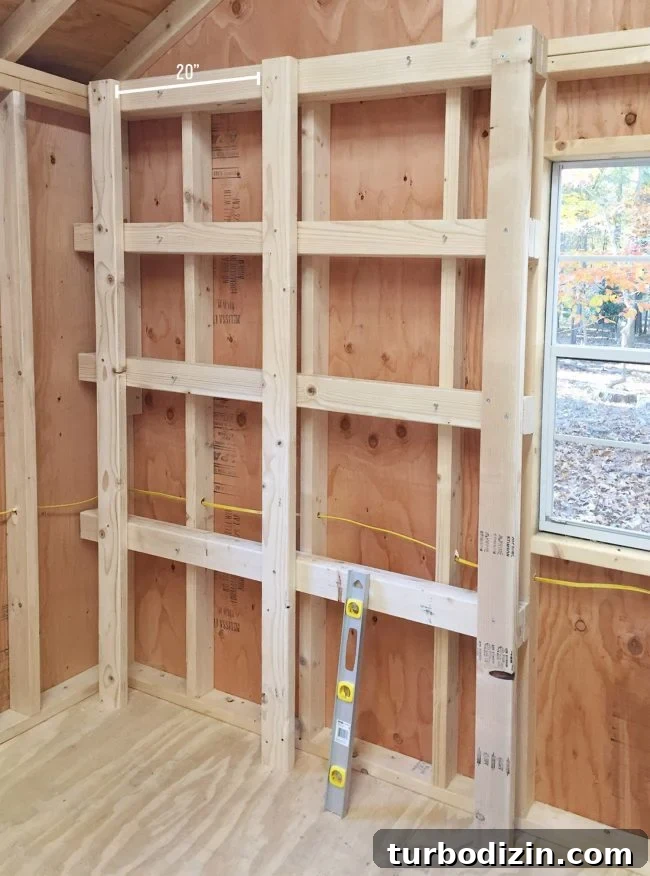

Step 4: Attach 2×4 Vertical Supports
Cut vertical 2×4 supports to rest on the floor and reach just below your top board. Fasten these vertical posts to the outer horizontal pieces with screws, keeping them plumb with a level. I started with three vertical supports and later removed the middle one after confirming the unit was solid.
Step 5: Remove Your Temporary Screws

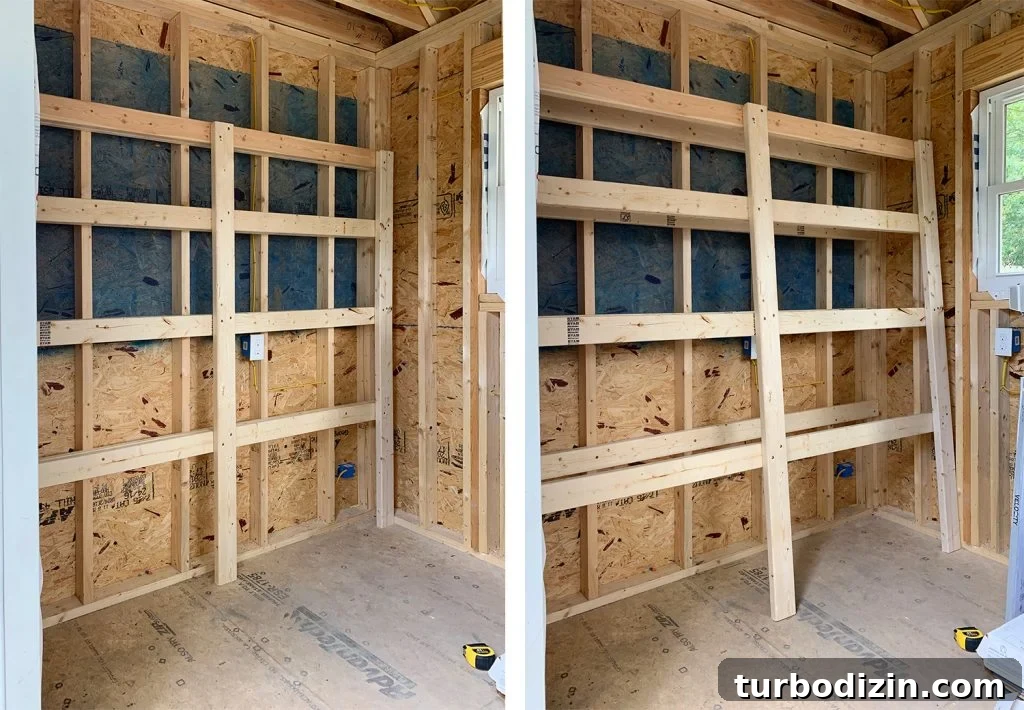

Remove the temporary screws so the front portion pulls away from the wall. This gives you a matching front frame that lines up with the back supports. The paired horizontal supports will now be perfectly aligned when you reattach the frame.
Step 6: Add Side Pieces

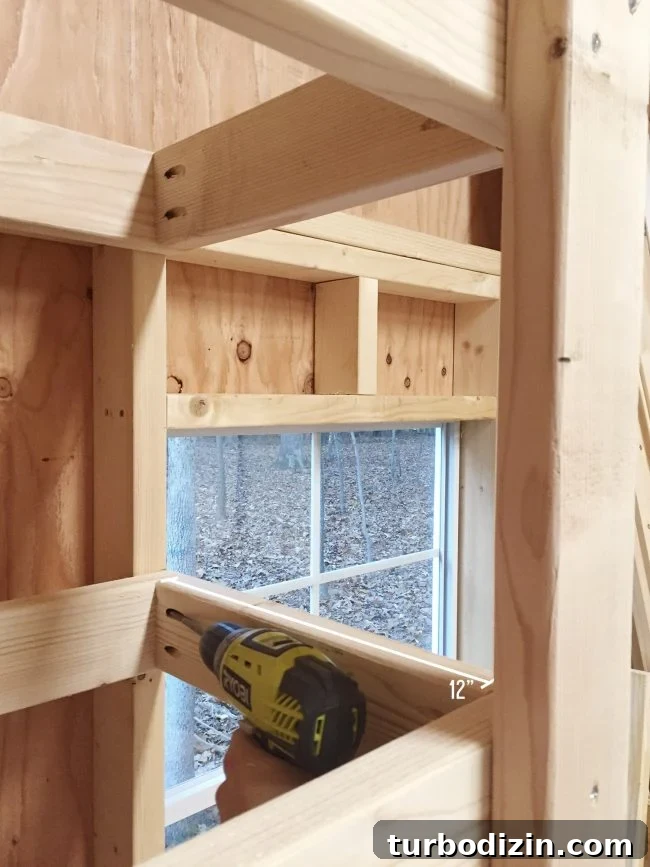

Cut side pieces to connect the front and back horizontal supports. We used 12″ side pieces and pocket holes to attach them, creating about a 15″ shelf depth. Adjust depth to fit your needs; avoid depths larger than 18″ without adding extra support or thicker plywood to prevent sagging.

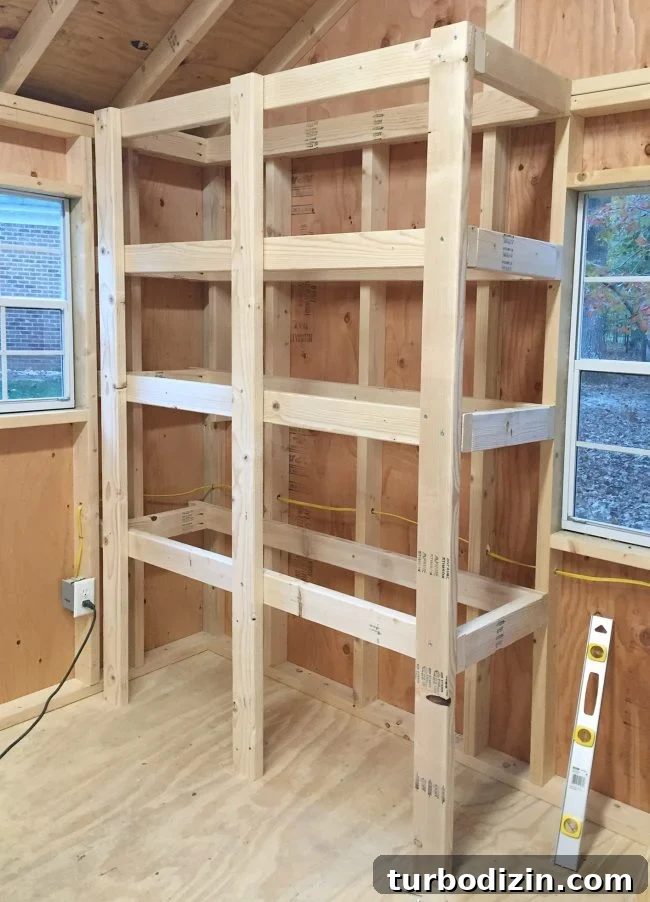

After attaching the side pieces, the shelf frame will be ready for tops.
Step 7: Nail In Shelf Tops

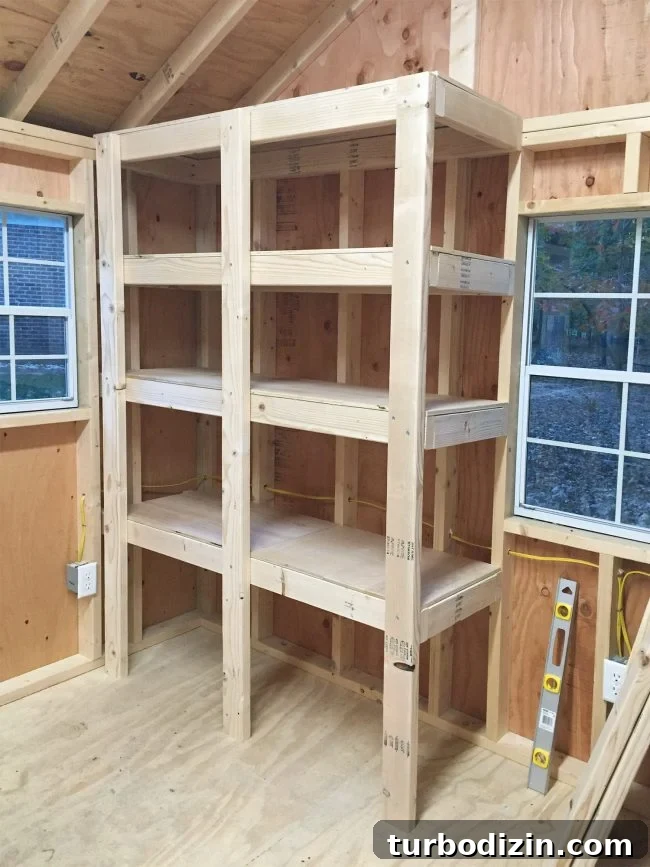

Attach 1/2″ plywood to the tops of the frames with nails or screws and glue if desired. Cut the plywood to size with a table saw or circular saw; many home centers will cut sheets for you. Once the tops are installed the unit is very rigid — I was comfortable removing the middle vertical post to make it easier to slide large items onto the shelves.

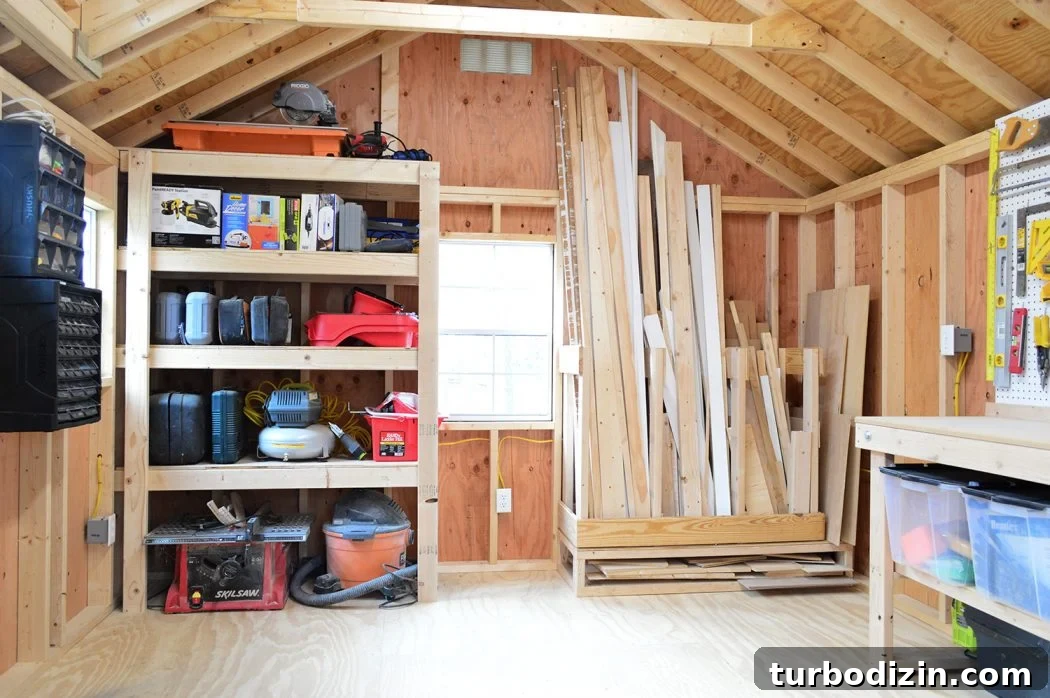

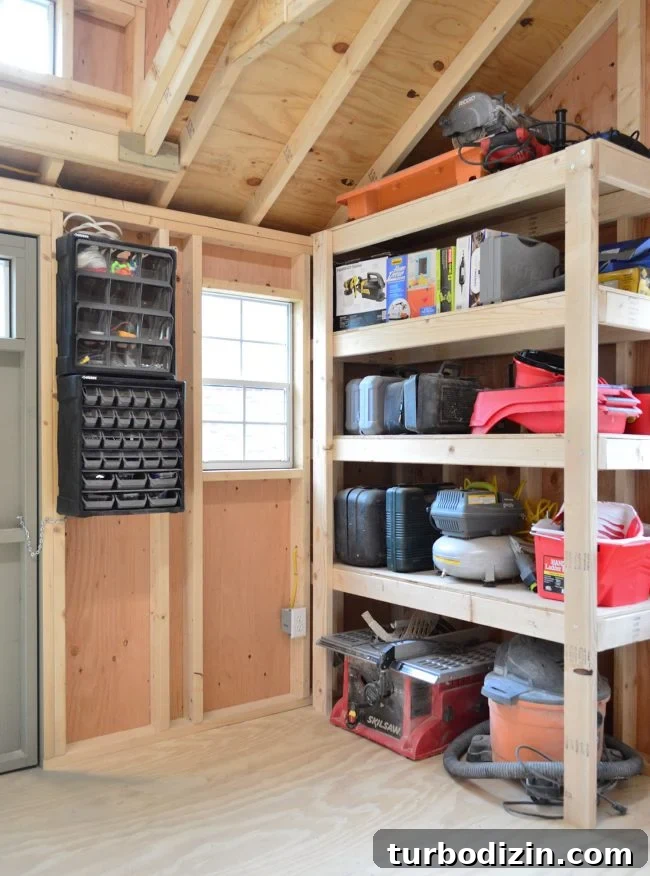

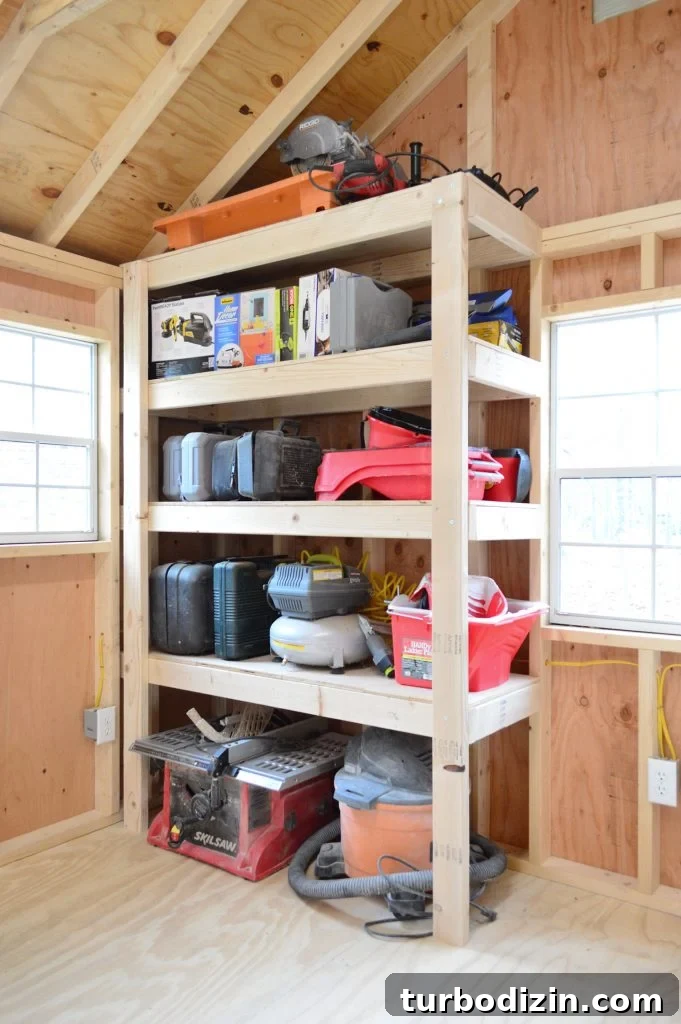

These shelves ended up working great for boxed tools, painting supplies, and saws. They’re so sturdy they can handle heavy loads without sagging.

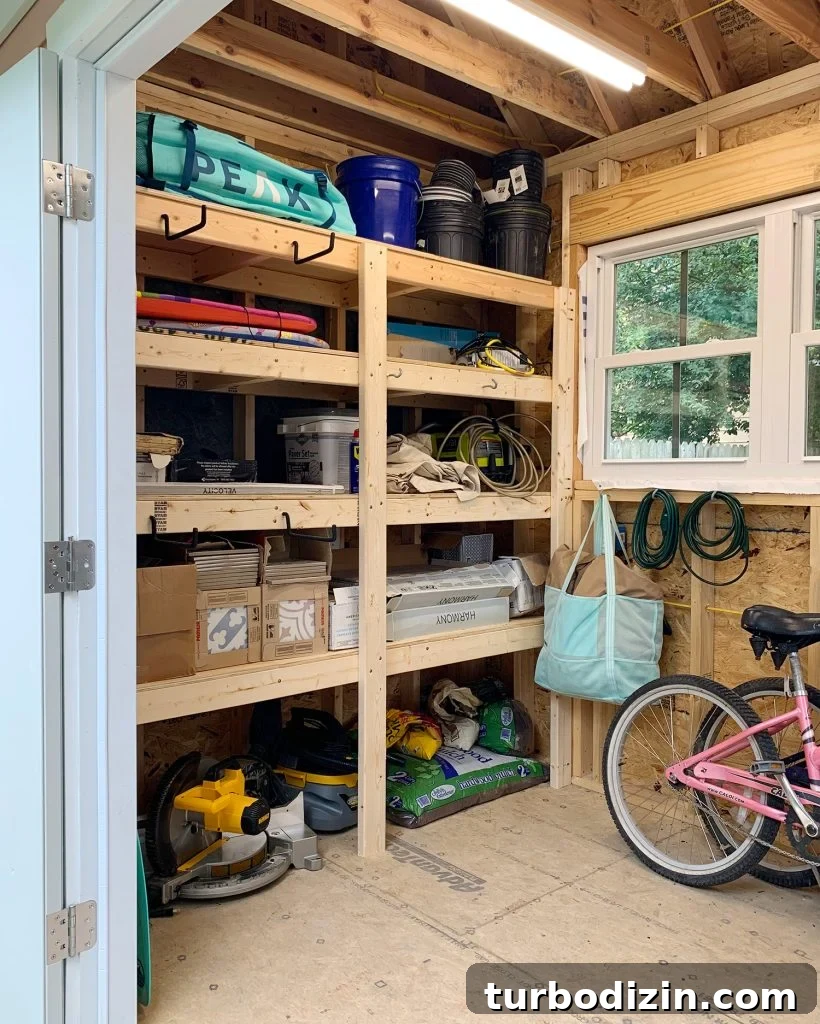

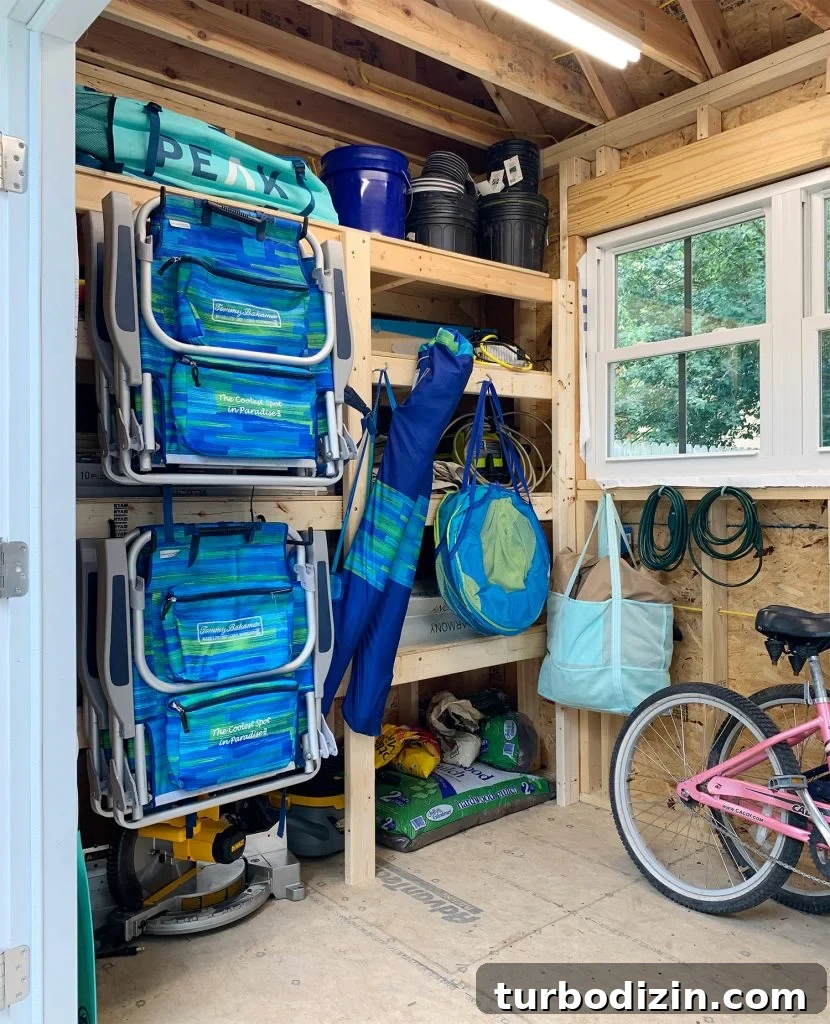

For our beach-house shed we customized the same shelving to store spare tile and paint, adding hooks on the front to hang beach chairs and umbrellas. The system is flexible and easy to adapt to different needs.
Thanks to the original tutorial for a simple, effective approach to heavy-duty DIY shelves. Once built, these shelves provide dependable storage and are easy to customize for different spaces and needs.
