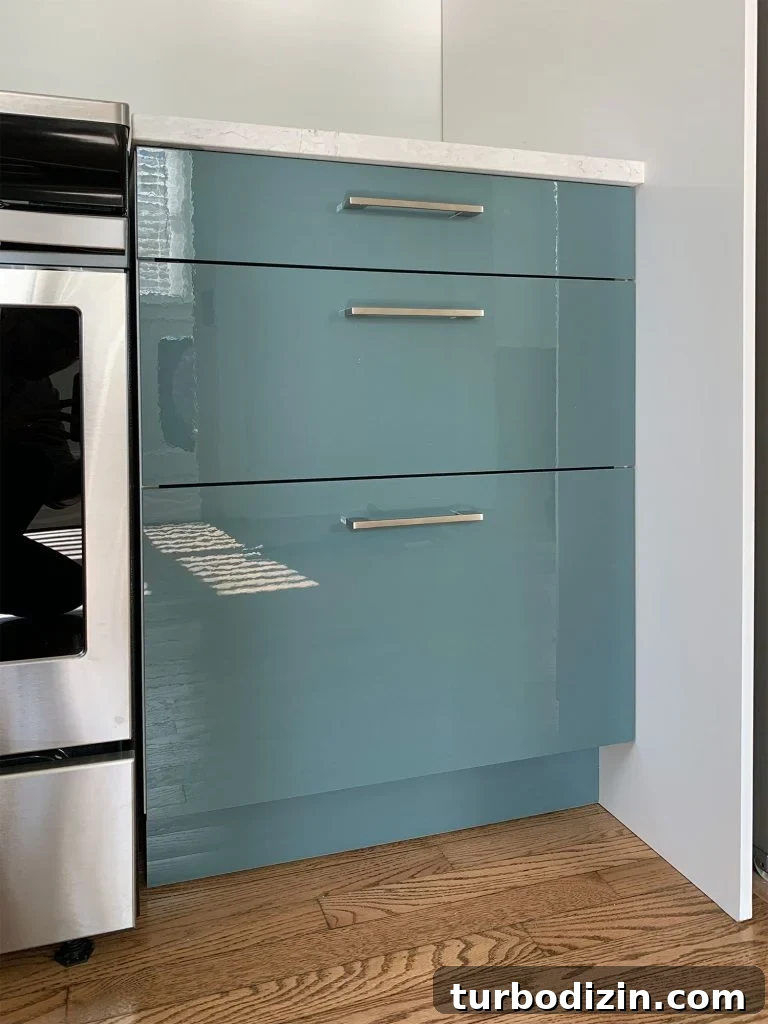

The duplex kitchens are starting to feel like real, finished kitchens, and installing the cabinet hardware this past weekend made a huge difference. Drilling into new cabinet doors and drawer fronts can be nerve-wracking because there’s very little room for error. If you’re not eager to replace a door or drawer front, you need to get your measurements centered and level on the first try. No pressure, but careful preparation helps a lot.
After installing hardware on three kitchens in the last year and a half, we’ve refined a reliable process. Follow these steps to keep your pulls and knobs straight, centered, and consistent across the whole kitchen, and to reduce the stress of drilling into brand-new or freshly painted cabinet fronts.
We’ve included photos that show each step; there’s also a short video that walks through the full process and shows a peek of the wood kitchen side of the duplex.
Installation Tools & Supplies

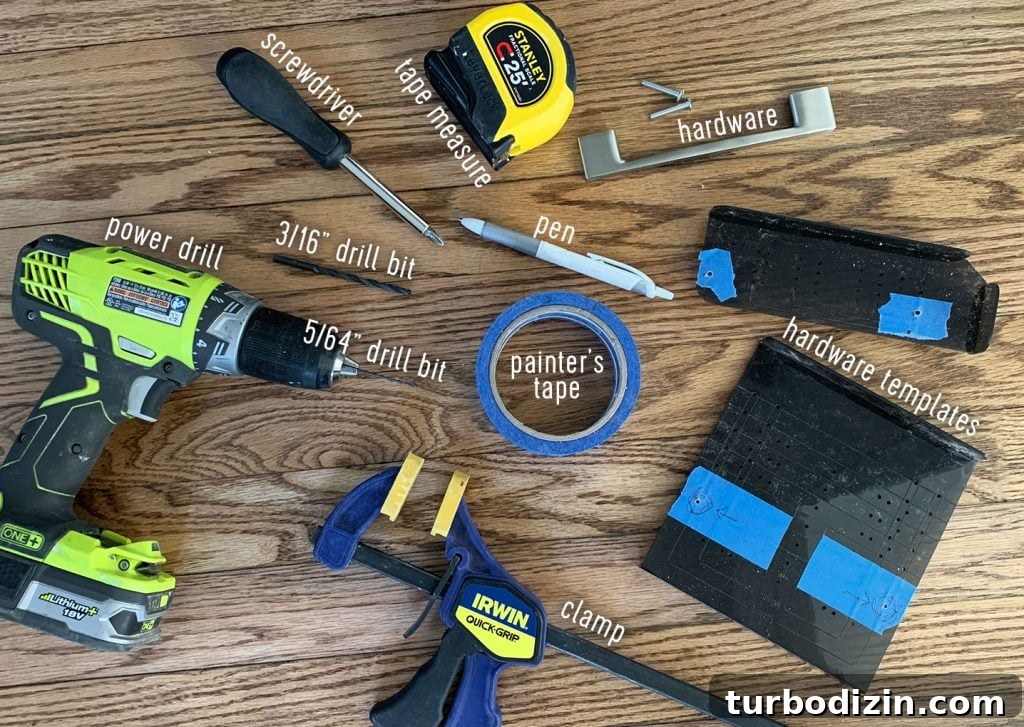

Gather these tools and supplies before you start to make the job faster and smoother:
- Your chosen pulls or knobs (buying matching pieces in bulk can reduce cost).
- A two-pack of hardware templates — they make consistent placement fast and accurate.
- Tape measure.
- Screwdriver with the correct head for your hardware screws.
- Power drill.
- 3/16″ drill bit for the final hole size.
- 5/64″ (or similar small) drill bit for pilot holes.
- Pen or pencil.
- Painter’s tape.
- Clamp to hold the template steady.
Video: Installing Your Cabinet Pulls
We filmed the installation from start to finish so you can watch the process in real time. The video shows each step and gives a clear view of what’s involved, including a glimpse of the wood kitchen side. If you prefer photos, the steps below show the same workflow in still images.
Step 1: Mark Your Hardware Templates
Hardware templates are worth the small cost because they remove guesswork and speed up installation. Templates include holes for common handle spreads and multiple placement options for the distance down from the cabinet top. For knobs, use the center holes at the chosen drop to keep placement uniform.

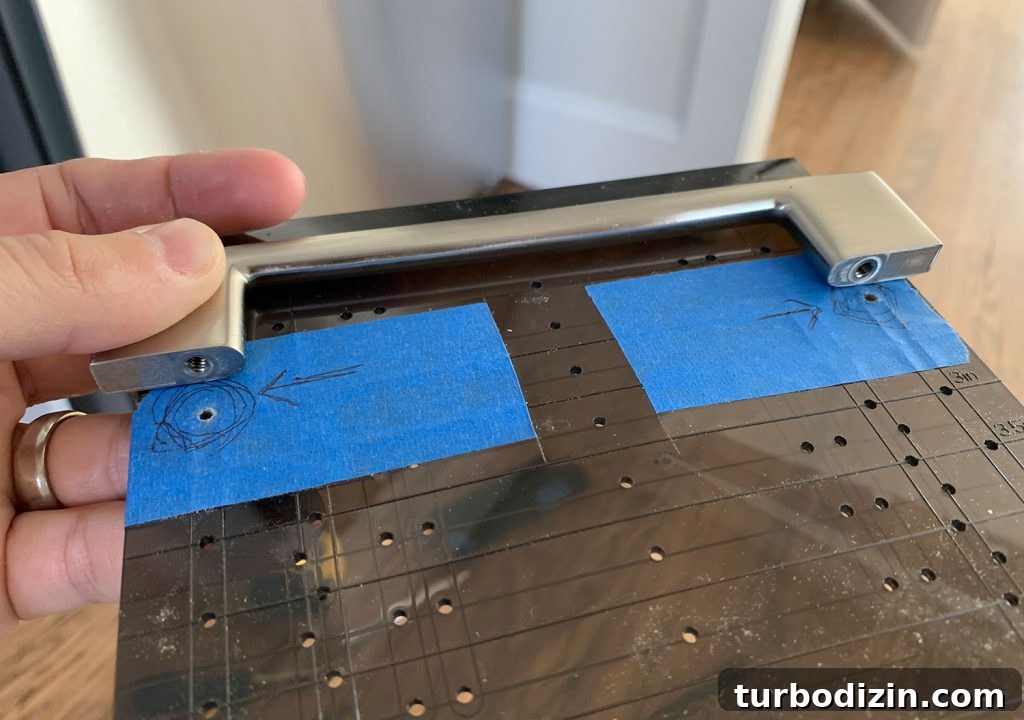

Decide which holes correspond to your handle spread and drop, then mark them directly on the template with tape and a pen. The templates have many holes close together, so clearly marking the chosen holes with a circle and arrow prevents mistakes when drilling.
Step 2: Tape Off Your Cabinet Fronts

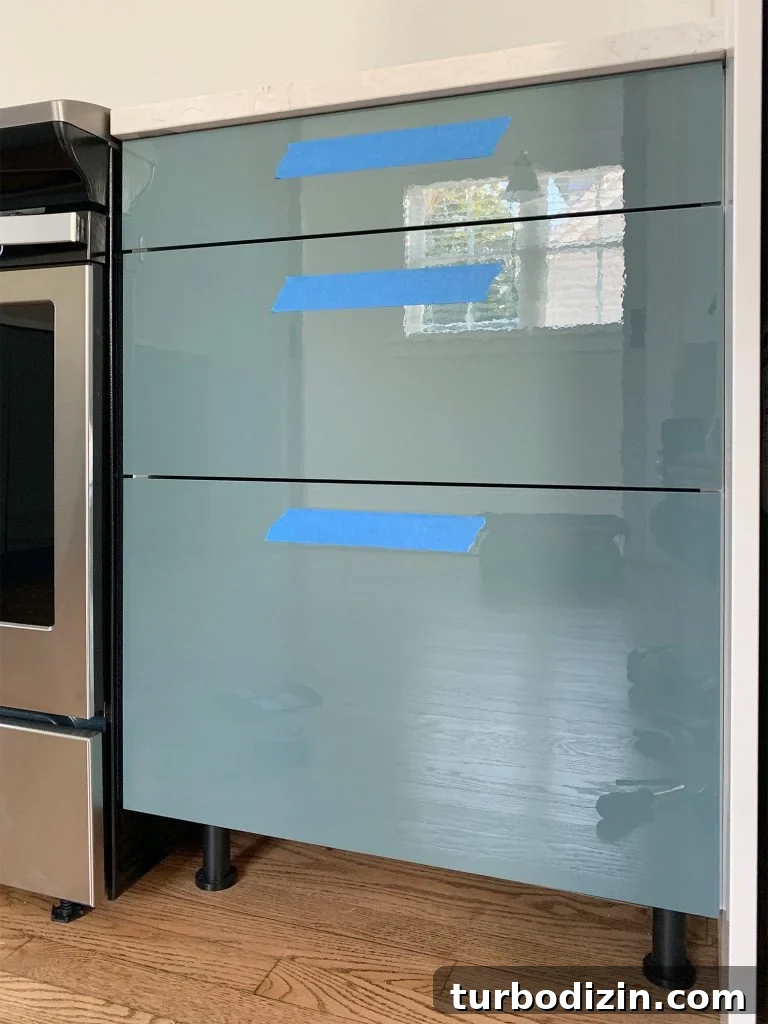

Apply painter’s tape roughly where you plan to place the hardware. The tape lets you mark without writing on the cabinet surface and helps reduce finish cracking when drilling. Work one cabinet at a time and tape all the drawers in that cabinet together for efficiency.

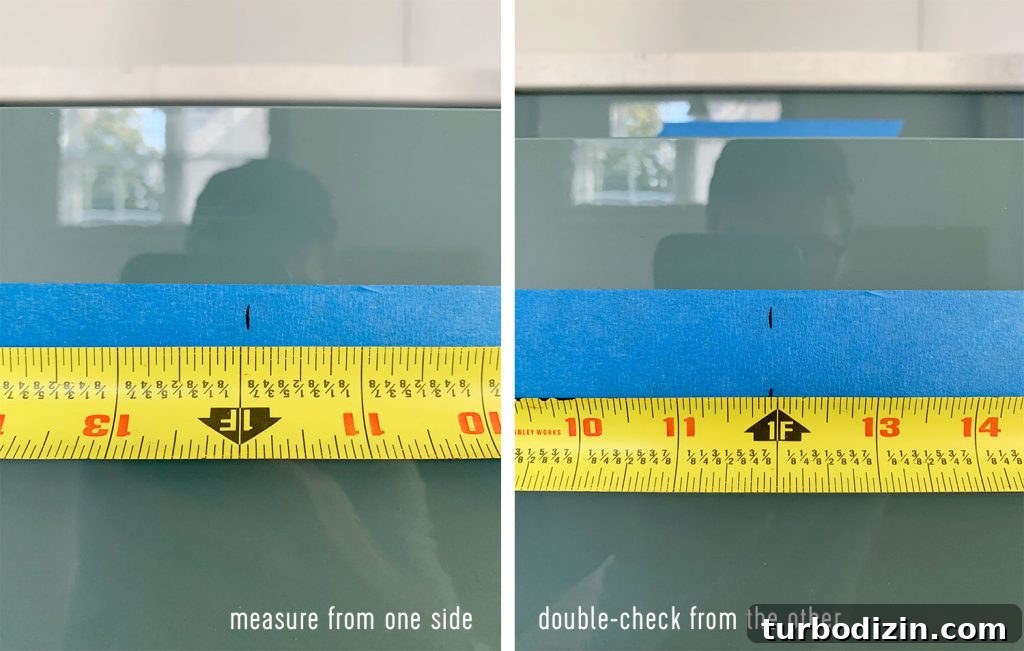

Step 3: Mark A Center Line On Each Front

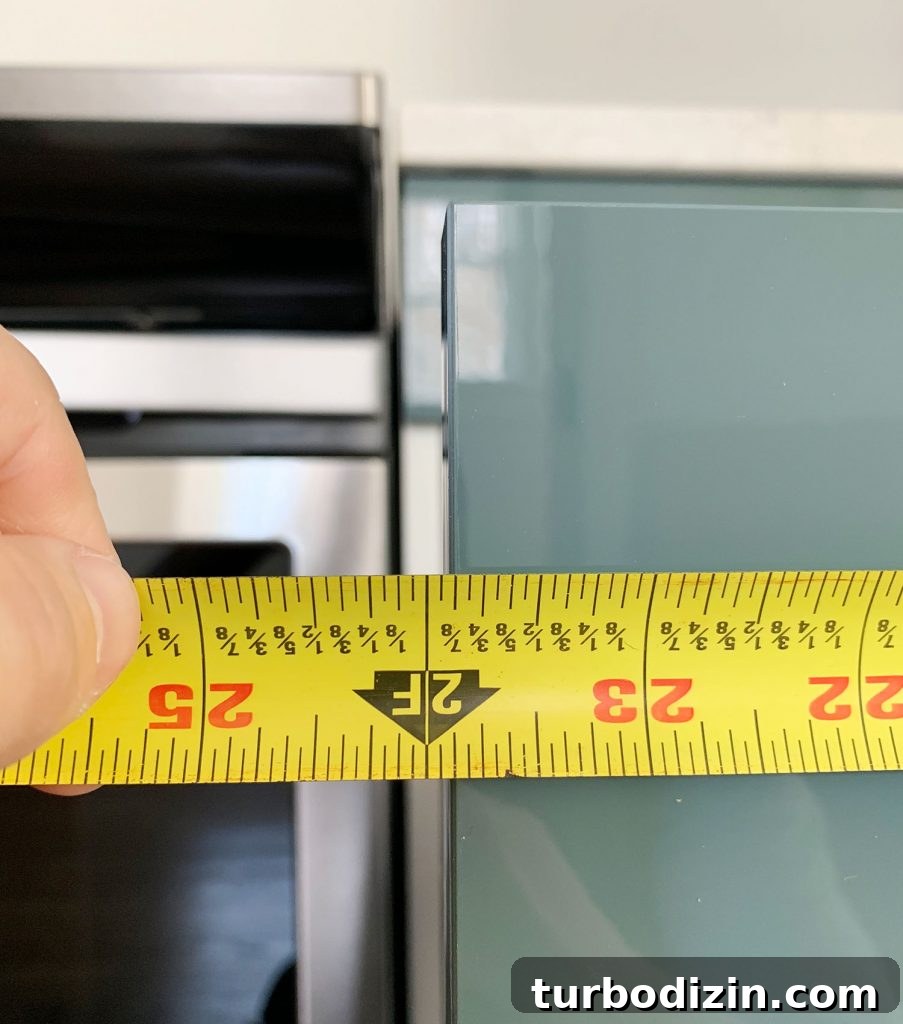

This step is critical for stacked drawers where slight misalignment will be noticeable. Measure the full width of the drawer front and calculate the center. For example, a drawer front that measures 23 7/8″ has a center at 11 15/16″. Mark the center on the tape, then double-check by measuring from the other side to ensure the mark is centered accurately.

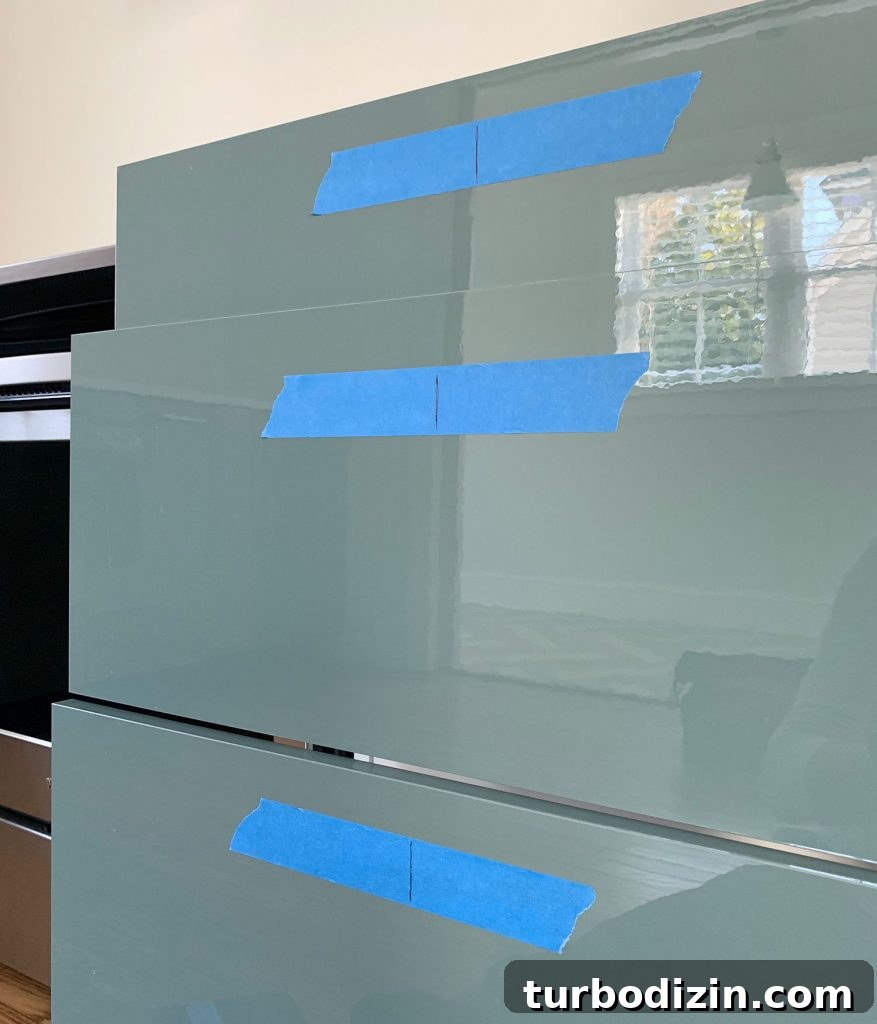

Make the center marks slightly larger so they’re easy to see when aligning the template. Step back and visually confirm that the centers line up across the stack of drawers before moving on.

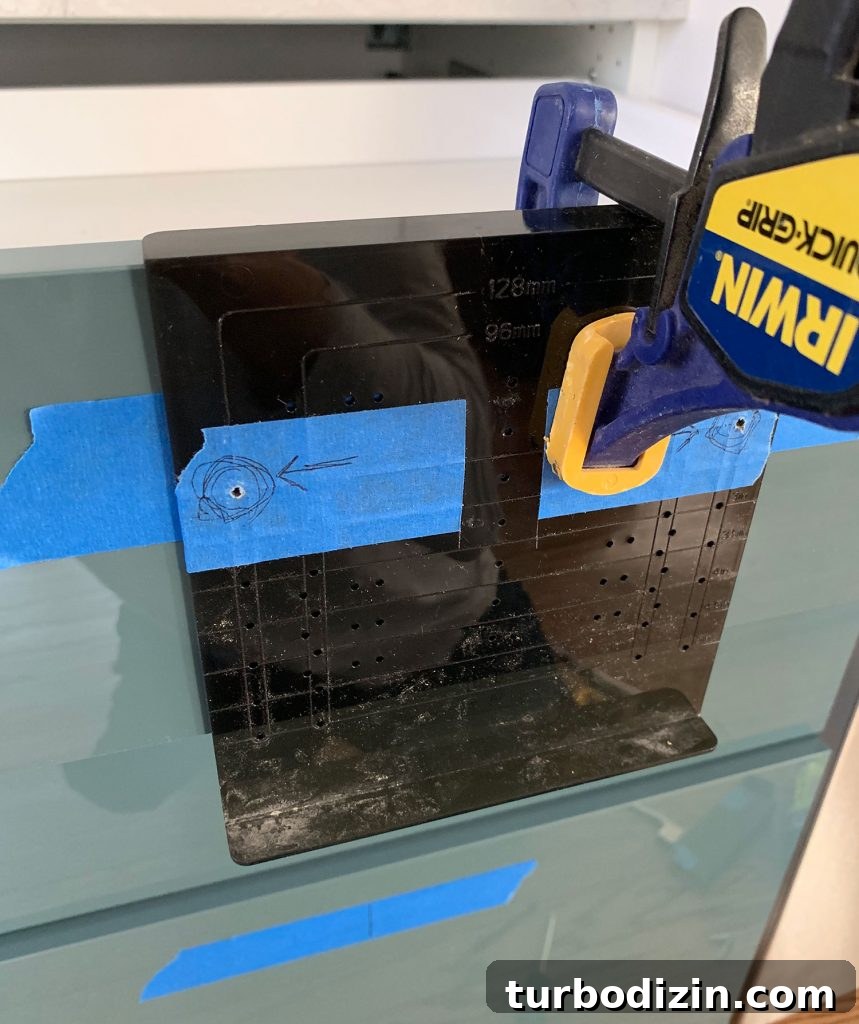

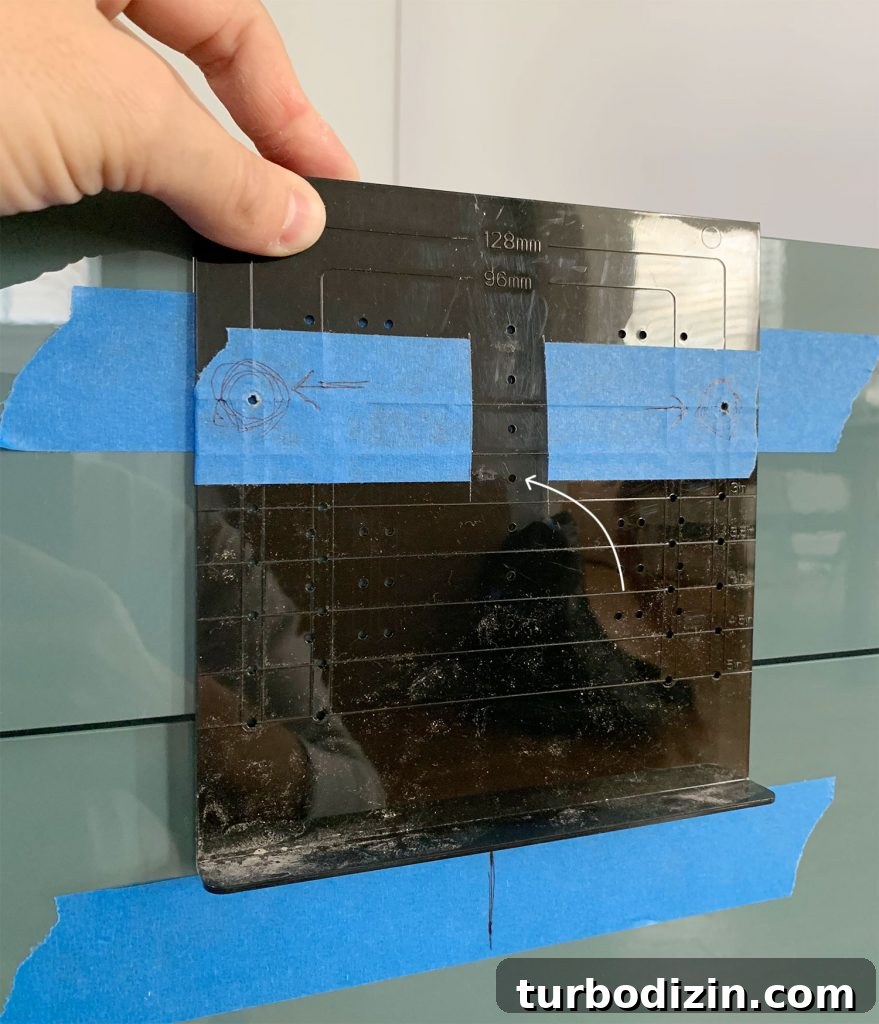

Step 4: Line Up Your Hardware Template
Place the template’s lip on the top edge of the drawer and align the chosen holes over the center marks. If your template is clear, alignment is easier; otherwise, look through the center holes to match your marks. Clamp the template in place so it won’t shift while you drill.

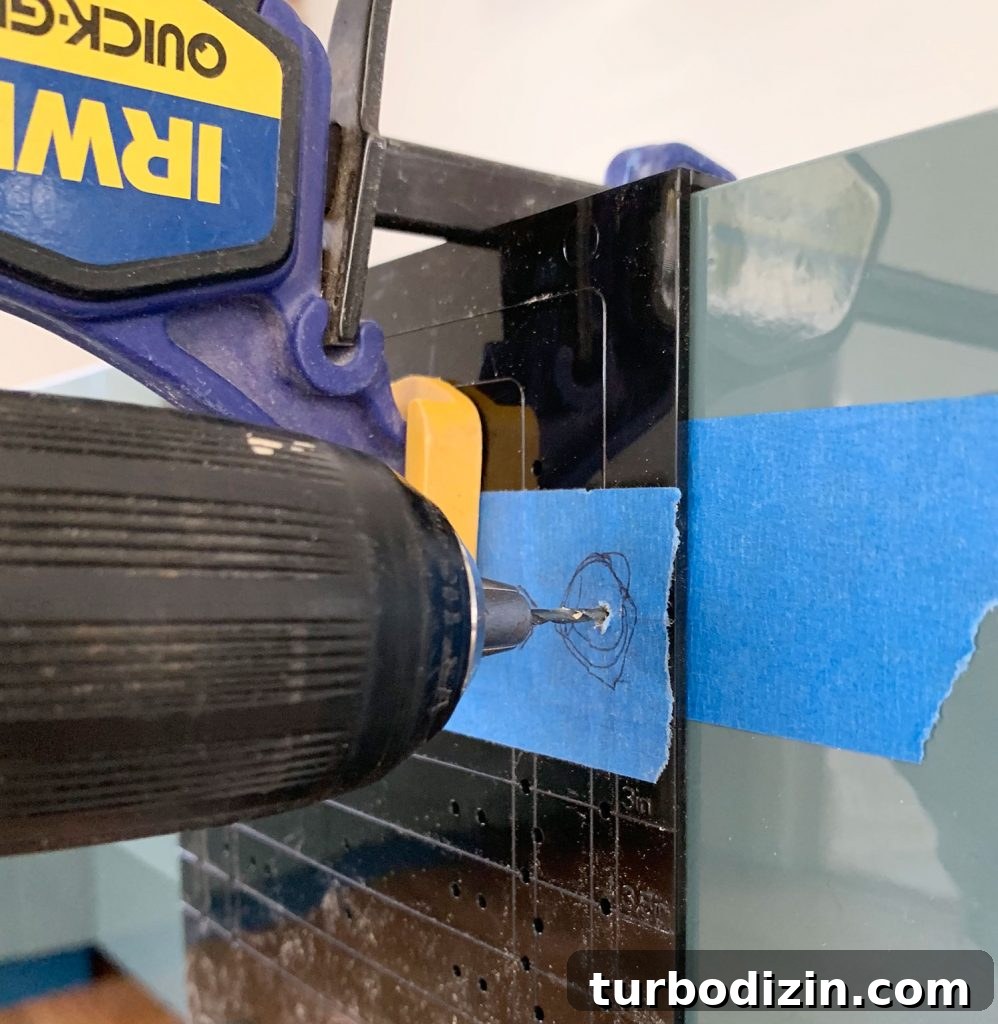

Step 5: Drill Pilot Holes Through Your Hardware Template

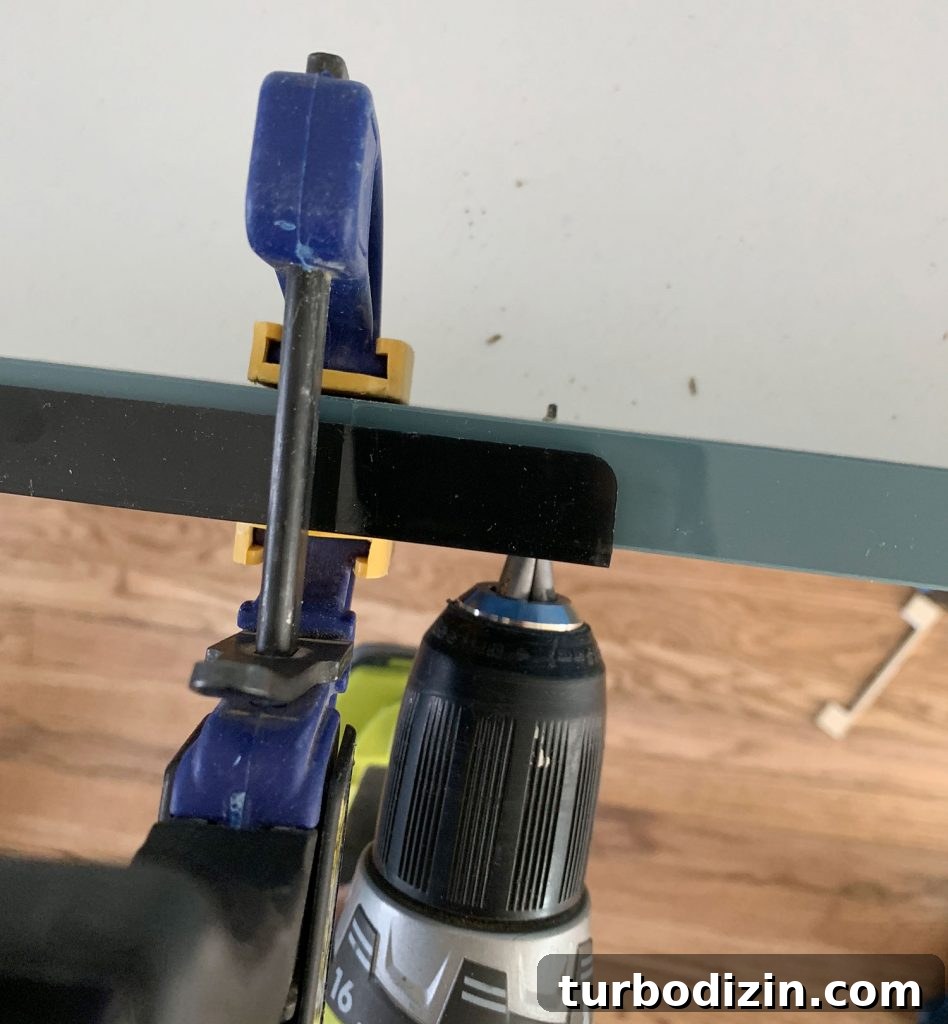

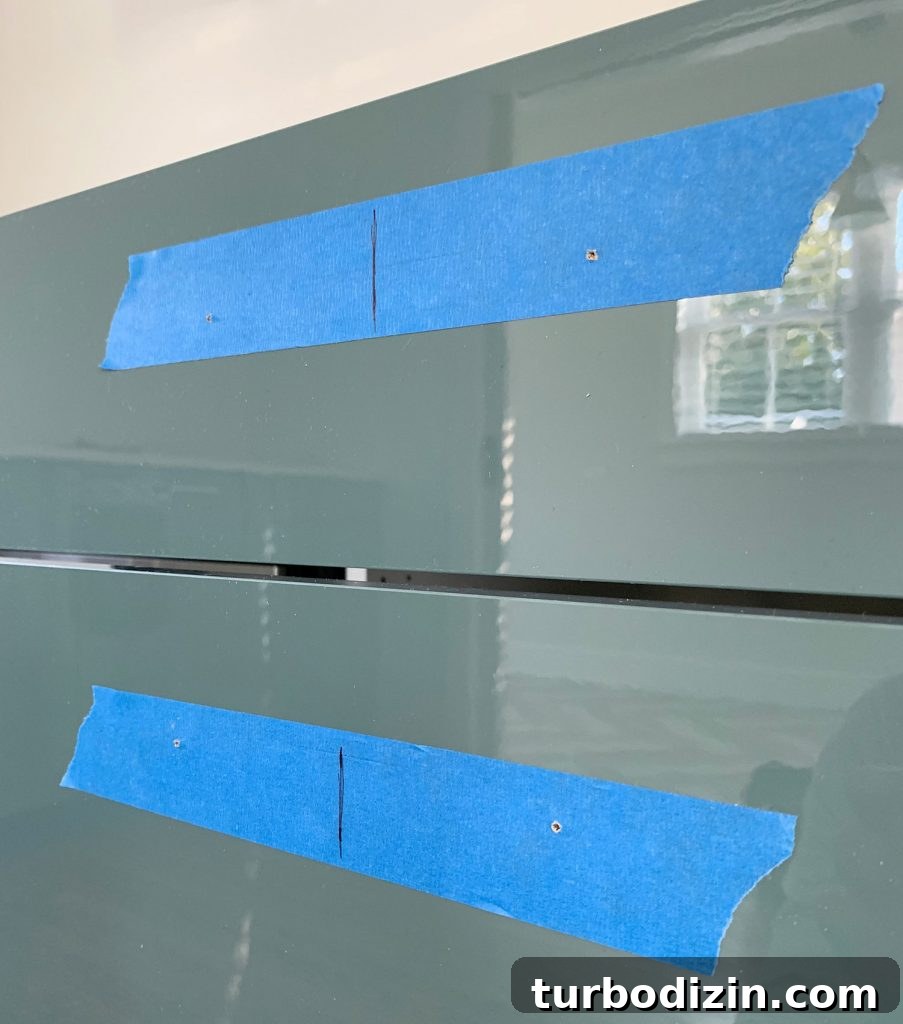

Rather than only marking through the template, we prefer drilling small pilot holes directly through the template for maximum accuracy. Use a small bit (about 5/64″) to drill pilot holes through the template into the drawer front. If your hardware screws in from the back, drill all the way through so the pilot hole pokes out at the rear. Drill slowly as you exit the back to minimize splintering—additional tape on the interior side will help if you’re concerned.
Repeat template alignment and pilot drilling for each drawer in the same cabinet before changing out drill bits. Grouping these steps increases speed and consistency.

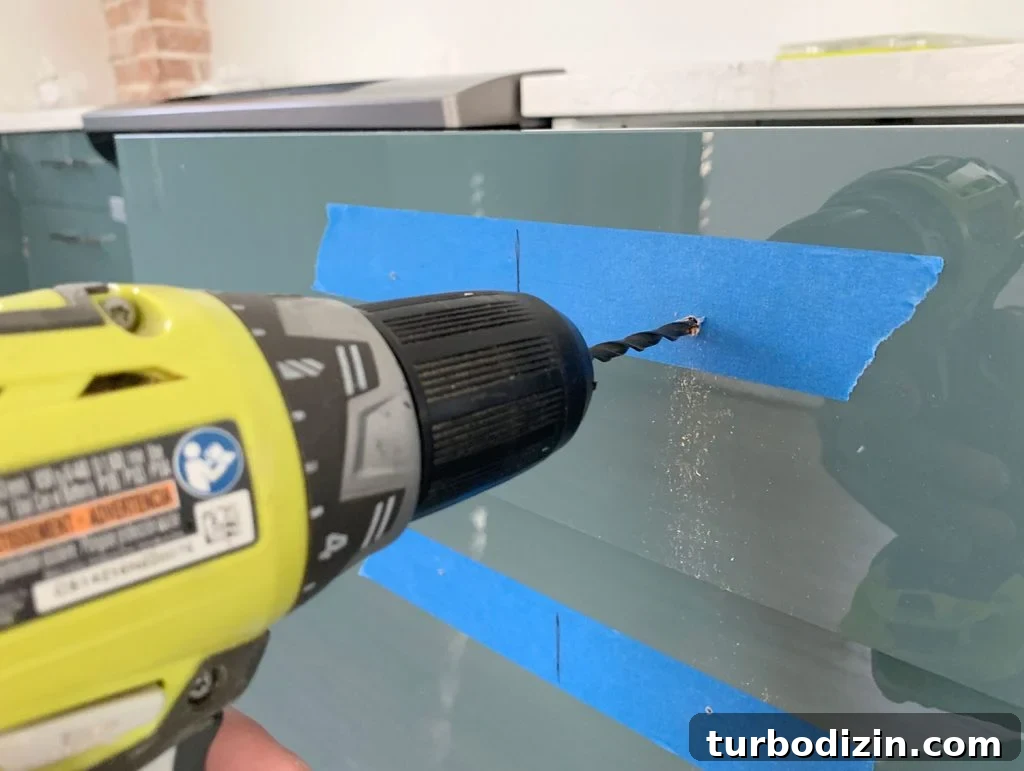

Step 6: Drill Your Final Holes

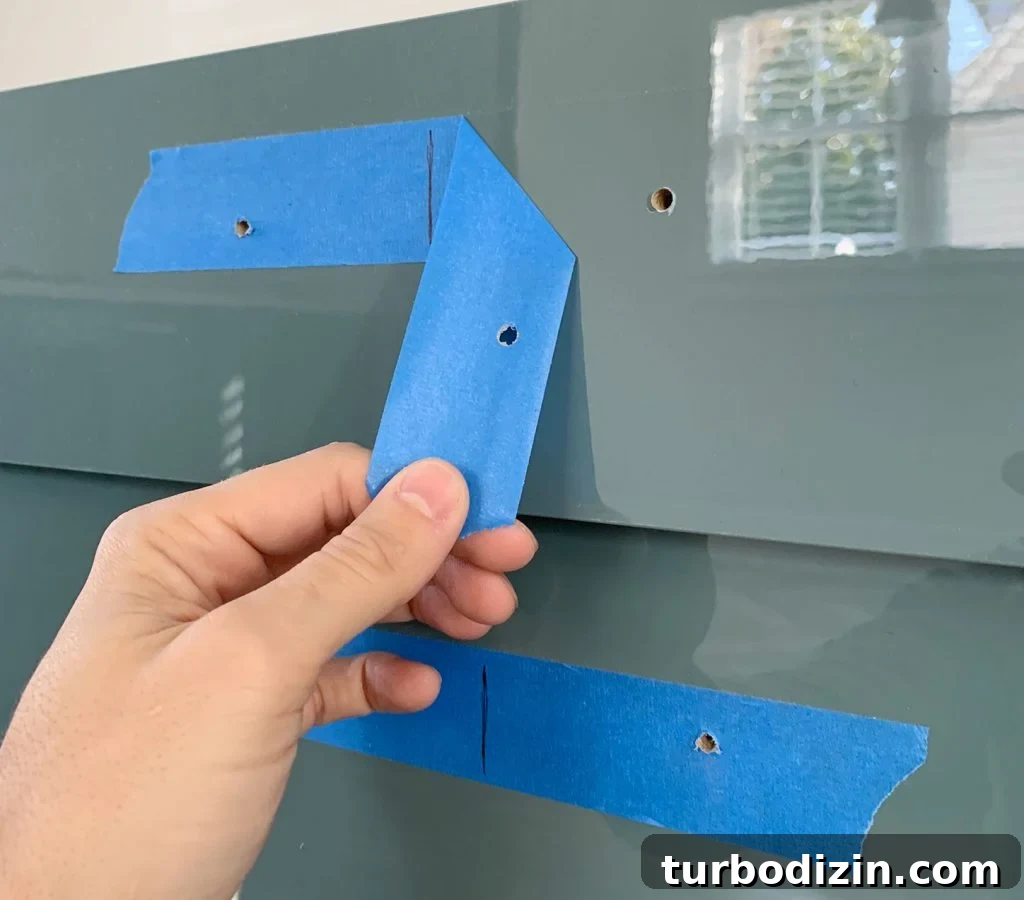

With pilot holes complete, switch to a 3/16″ bit (the standard size for most hardware) and drill through the pilot holes to the final diameter. Take care as you drill through the back to avoid forceful exit that could damage the wood. After drilling the final holes, remove the painter’s tape.

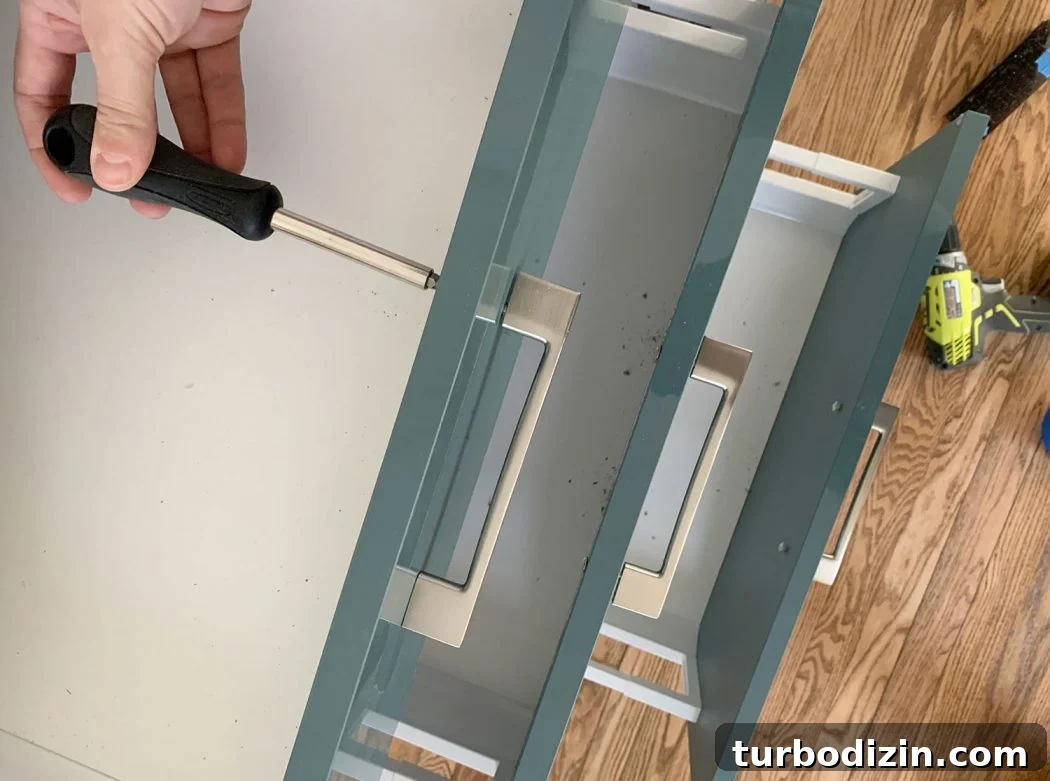

Step 7: Attach Your Cabinet Hardware

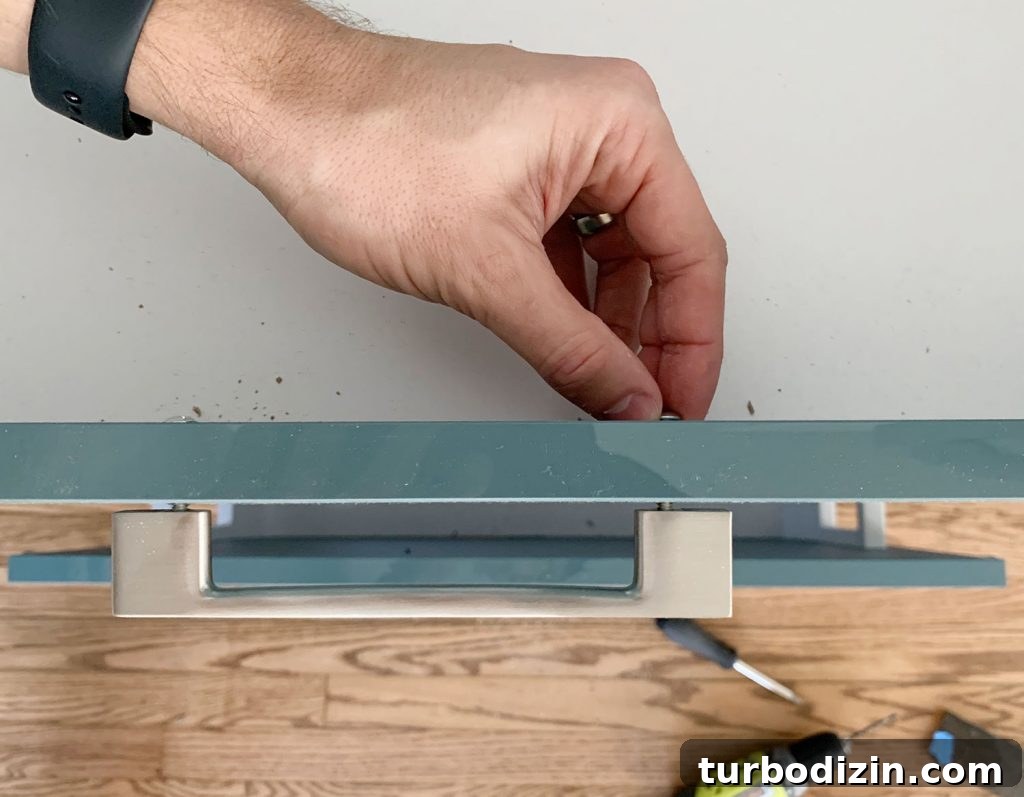

Install the hardware by feeding the screws through from the inside of the drawer and threading them into the pulls or knobs. Hand-start both screws so the hardware is held in place, then finish tightening each screw with a screwdriver. Avoid using a power drill for final tightening to prevent overtightening and potential damage.
Step 8: Clean Up & You’re Done!
Vacuum up drill shavings from inside drawers, cabinets, and the floor. That’s it — repeat the process for the rest of your cabinets and you’ll have consistent, professional-looking hardware placement.

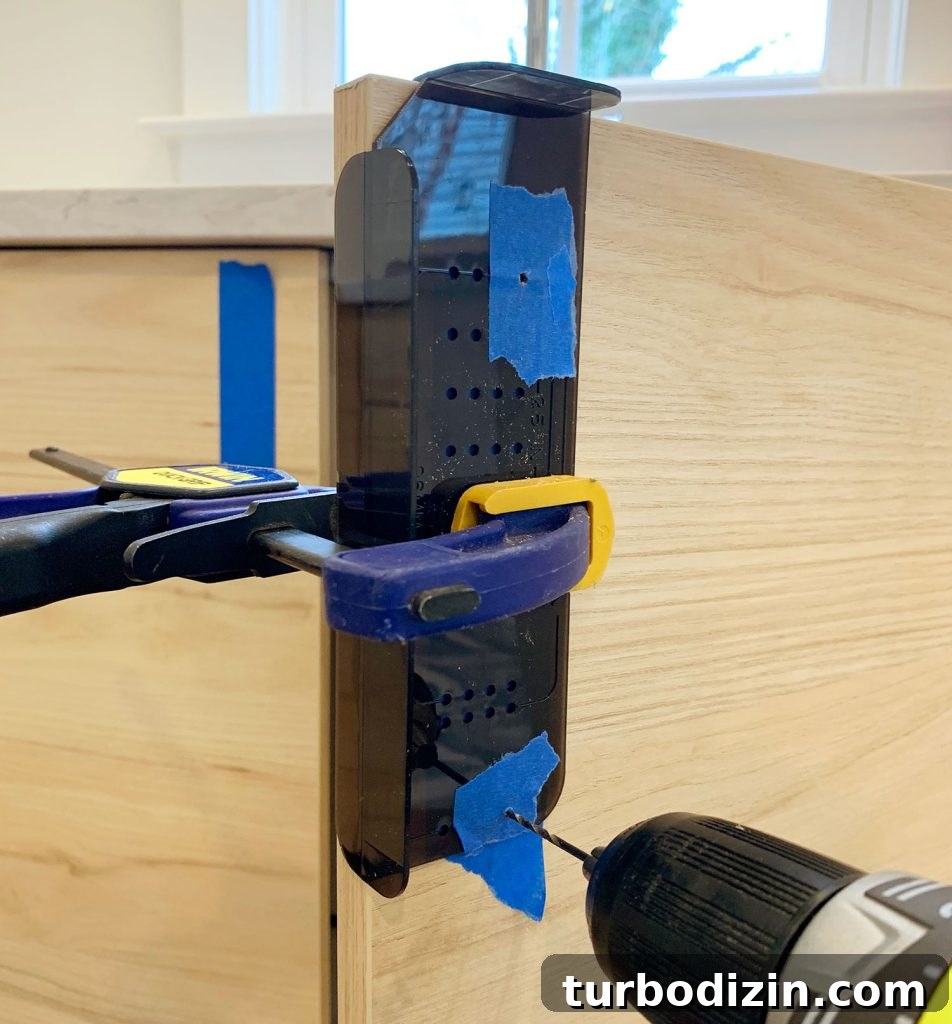

The same method applies to cabinet doors; use the template designed to rest on the corner of the cabinet door to locate pilot holes for knobs or pulls. This approach works for both knobs and pulls and keeps placement uniform across doors and drawers.

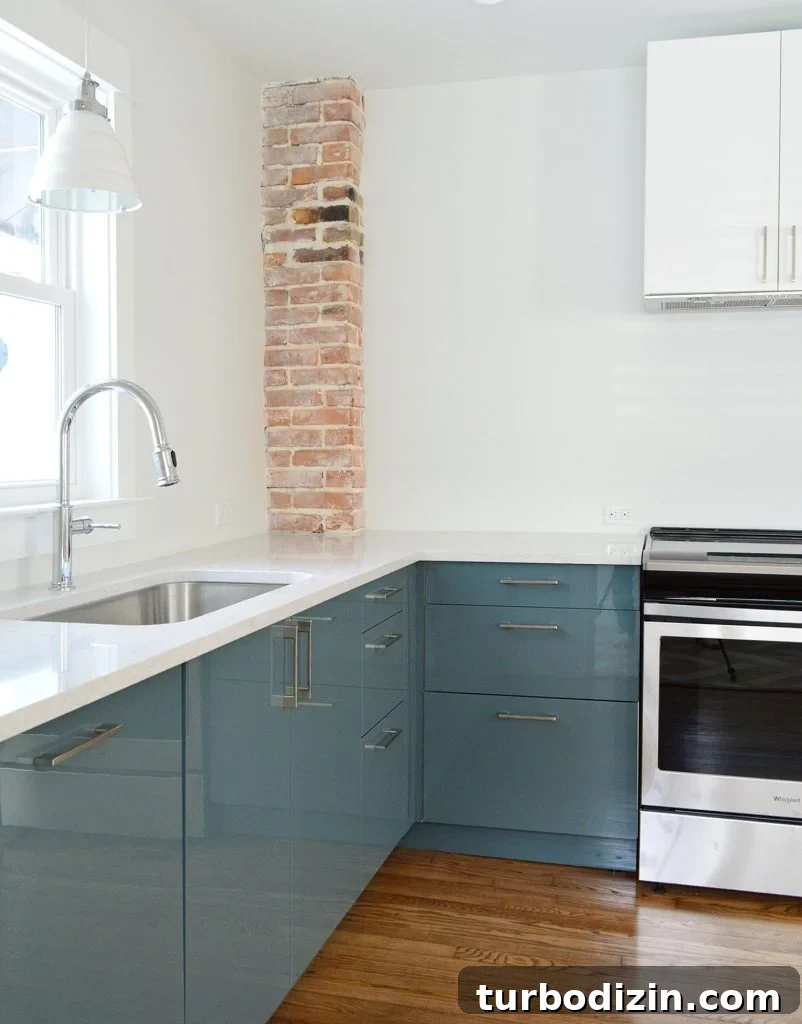

These steps helped us complete both duplex kitchens in under two hours without a single crooked or off-center handle. If you want more details about installing Ikea cabinets or additional tips from our experience, we’ll share a deeper post soon that covers full kitchen installs and tricks we’ve learned along the way.
Good luck with your installation — take your time measuring, use the template, and clamp where needed. A little patience up front saves a lot of stress and ensures a polished result.
