Make A Channel Tufted Headboard, step by step

After using our go-to method to make a plain headboard for our son’s room last week, we in fact had sufficient leftover materials to try out a new trick in our daughter’s room – which yielded a fully free headboard for her. Three cheers for $0 projects, right? Especially since she helped us settle on the design and make it, so it is not only cozy to lean back on (you know that function is my enjoy language), but she’s also especially into the wrapped up result because she had a hand in it. Literally.

Before we dive into that how-to, we realized you have not seen how her room has shaped up since we moved in. In case you forgot, it looked like this when we first saw the house.

Simply like with our son’s room, we discovered we could vault the ceilings to make the room feel more spacious (there was nothing but an empty attic above this room and the roof consistently sloped this way – so nothing structural had to happen). Plus we could swap out the popcorn ceilings for a plank + beam look while we were at it. This all got done through our contractor while we were still living in Virginia, which is when we got progress pics like the one below (here is a post full of other progress photos & info on how we renovated this house from afar).

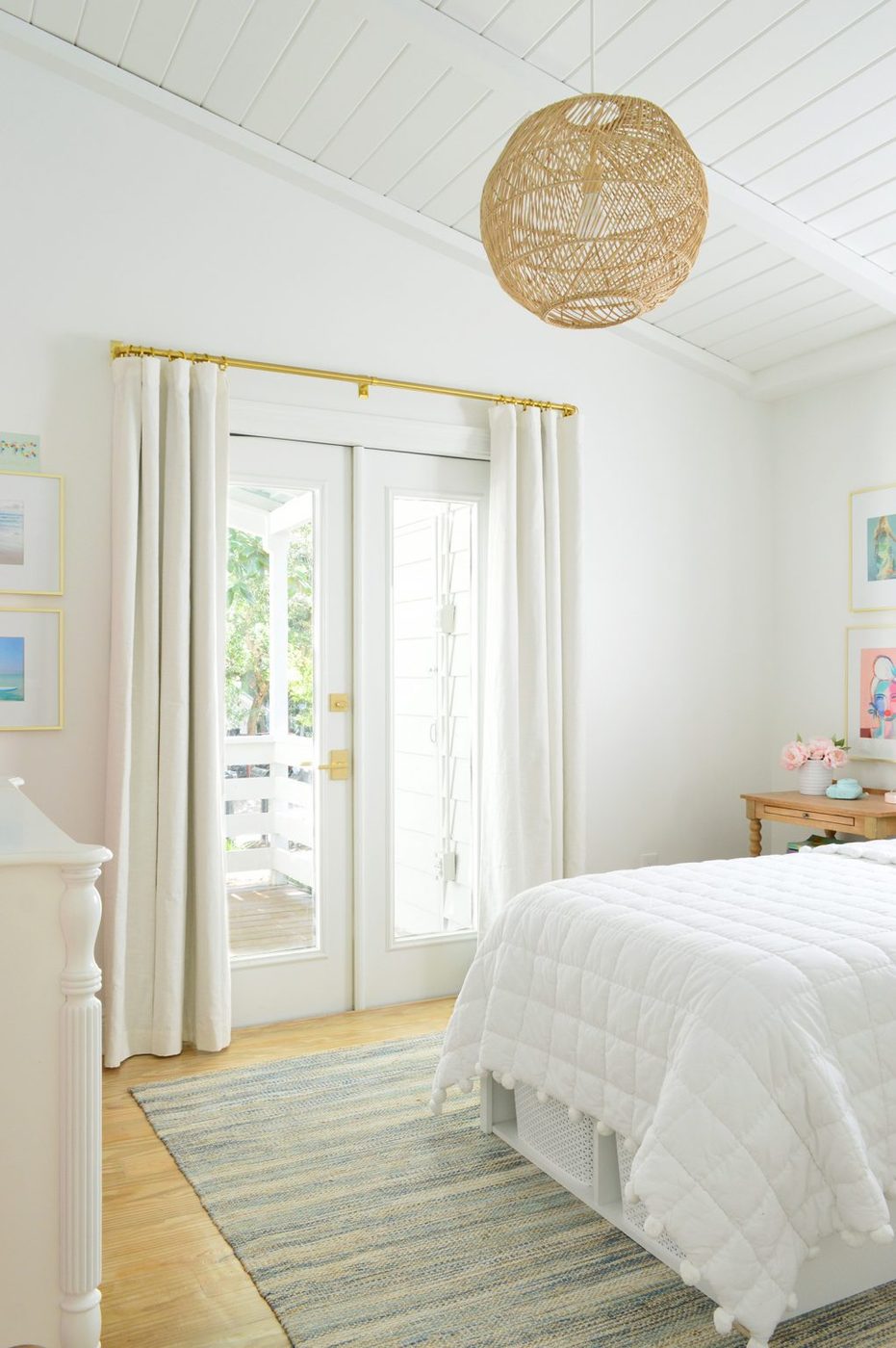

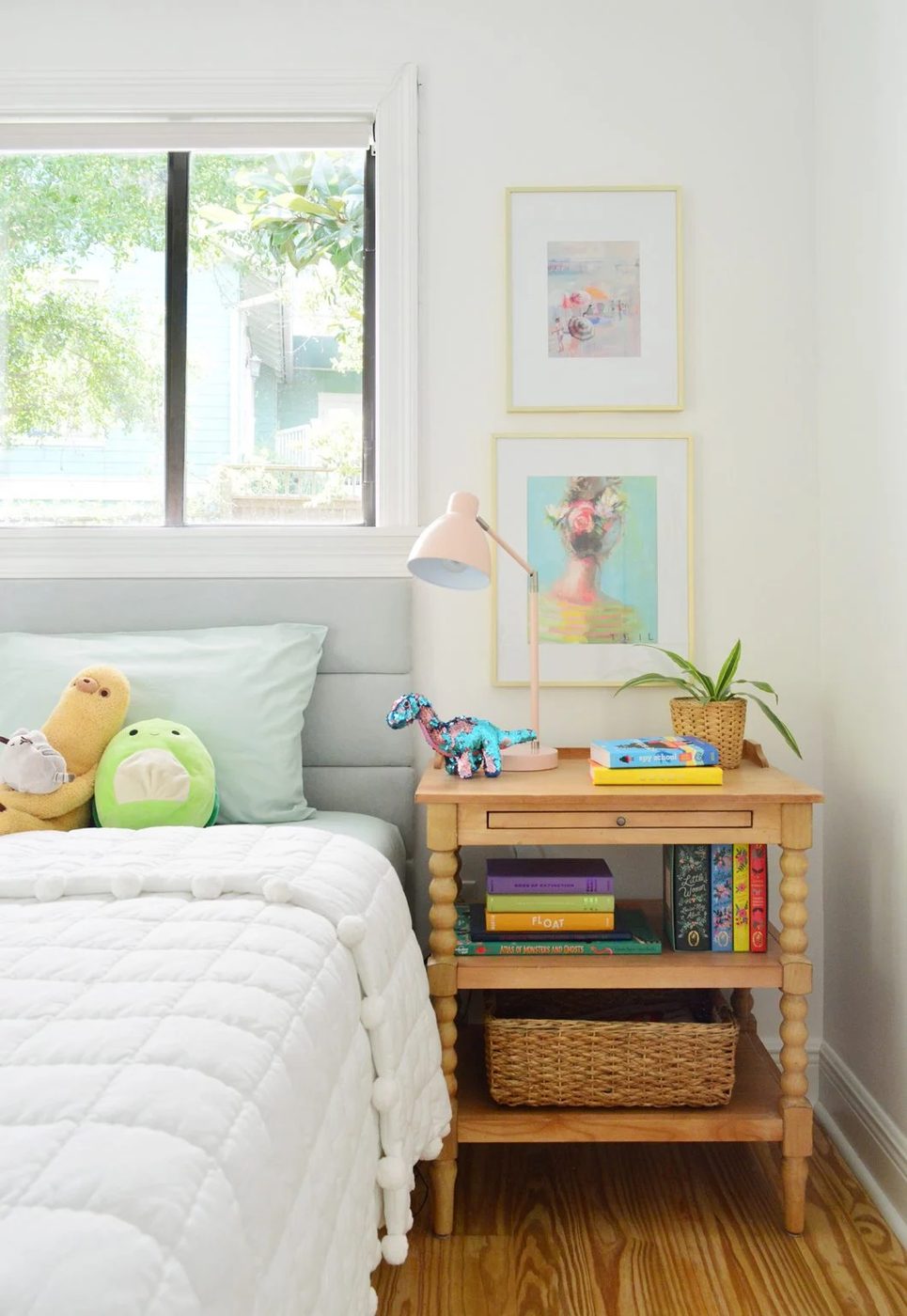

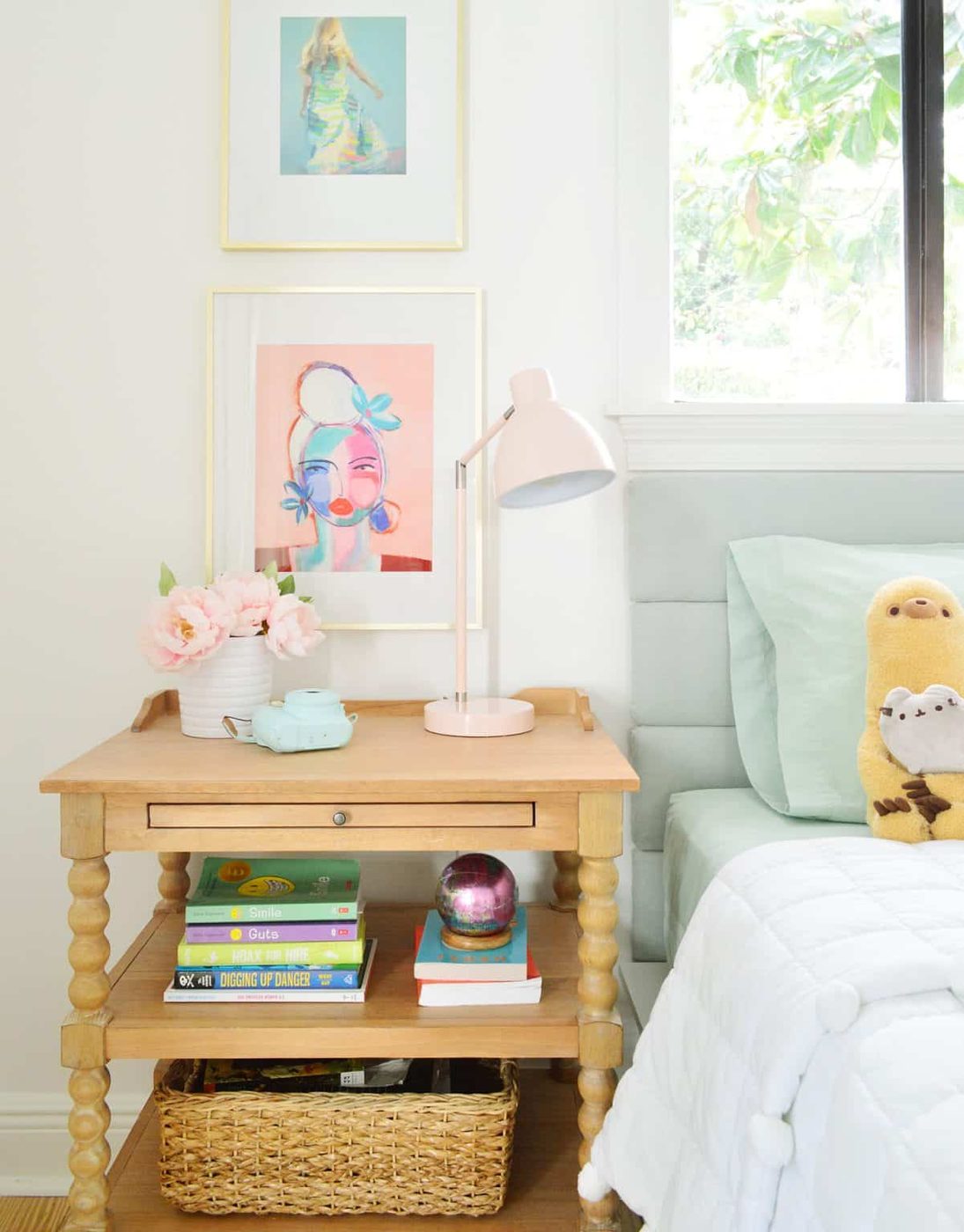

And here is what it looks like now, a little over two months of living here. It is nearly entirely full of things that we already had. You may recognize the rug from our kids’ art room in our last house. The nightstands are from the pink house. The dresser (not visible, but it is on the opposite wall) and the bedside lamps are from her old bedroom.

We simply picked up a pendant light and some window coverings (here are the curtains, the curtain rings, and the curtain rod), along with the bed frame, which is the only new piece of furniture. As we mentioned in this podcast, we chose it because she’d get 3 sides of under-bed storage for books & toys. It amazes me how much stuff fits under there thanks to eight full cubbies that accommodate bins of everything from games and Legos to toys and books, books, and more books.

When we picked up the house we initially had some reservations about having an exterior door in a kids room (would teenage sneak-outs occur?) and planned to switch it out for a pleasant big window. But we brought in a secure deadbolt along with one of those robust whole-house alarm systems that screams if this door is open even half an inch (or ever gets smashed). The unexpected plus side is that we realized in a fire she and her brother – who both sleep on this side of the house – could simply walk outside. We’d still consider converting it to a window at some point (if nothing else for more furniture placement options) but it feels pleasant & safe for now.

Okay, but I said this post was about a headboard, did not I? Let us get to it.

Floating her bed under the window made the most sense in the room, but it did not leave much space for a store-picked up headboard. We are no strangers to putting a headboard in front of a window (like we did in the duplex here) but this did not seem like the right situation for that.

After making our son’s headboard, we had a fair amount of scrap fabric – but nothing big sufficient to be “headboard-sized.” But we realized we could piece them together to perhaps try a look that I later learned was called “channel tufting” – kinda like this headboard or this headboard.

So we brought in the designer (aka: our ten-year-old) for a consult. We showed her photos of various vertical and horizontal channel headboards and she chose on horizontal and hoped three panels that showed above the bed (which in fact meant that we should make four of them since they extend all the way below the mattress to the top of the bed frame to keep things from falling back there).

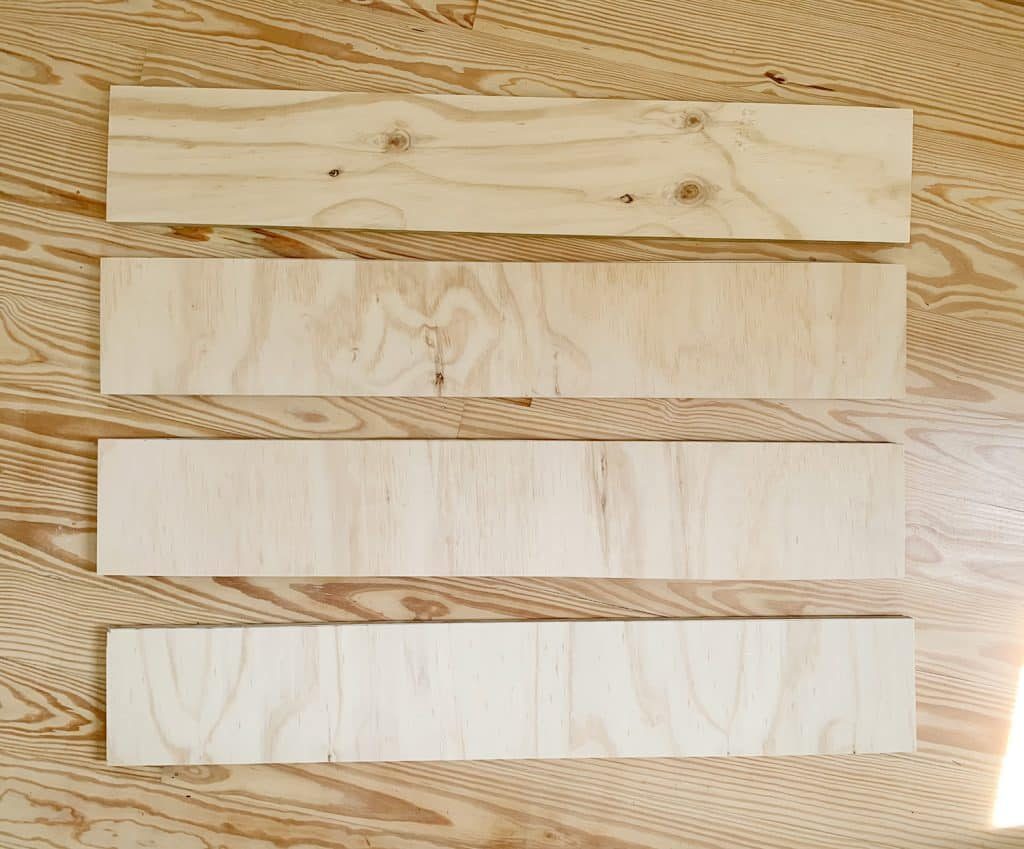

So we cut four identical strips of scrap plywood (leftover from another recent project!) using a circular saw. In our case, they each measured 39″ wide by 7″ tall, knowing that the batting + fabric would add another 1/2″ to each one of them in the end.

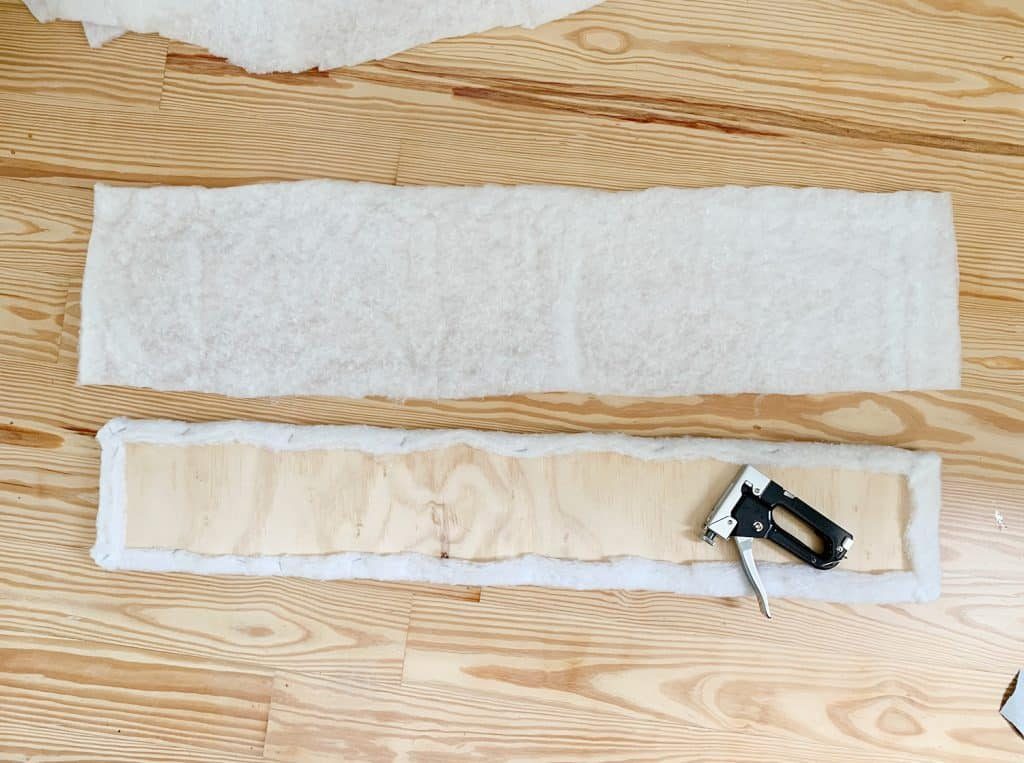

Then the process was simply like any other Hands-on upholstered headboard we have made. The only difference in this case is that you are upholstering each piece individually before attaching everything. So start by cutting, wrapping, and stapling two layers of batting around your cut wood panels. You can involve your child in the cutting and stapling if they are old sufficient to handle it (and have the hand strength for the stapler).

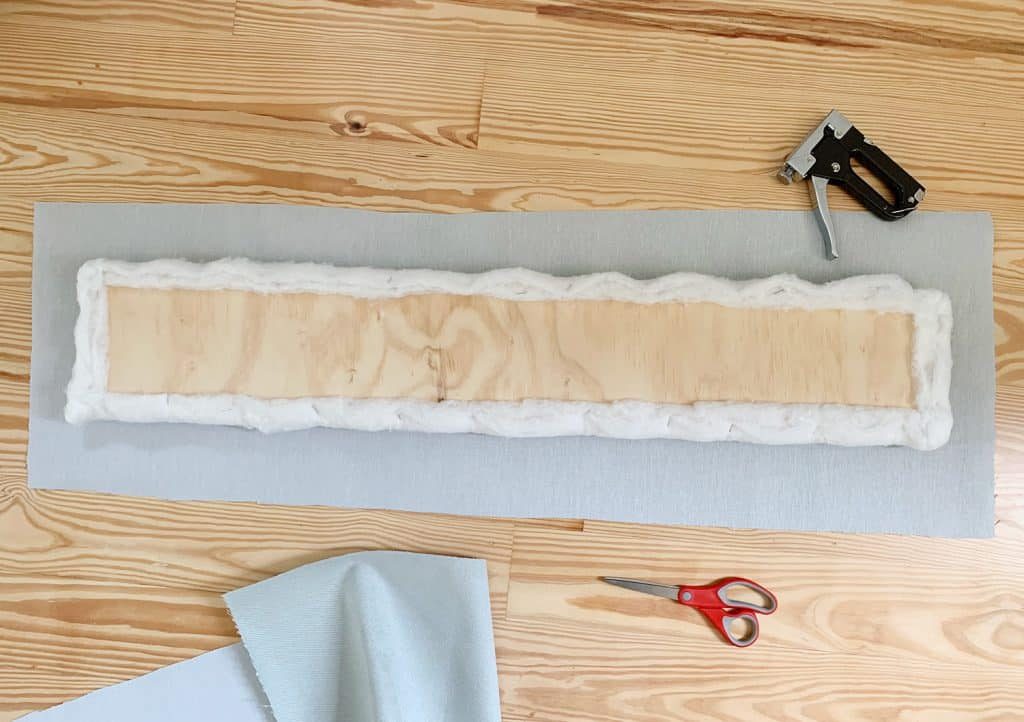

The next step is simply to repeat that process again with your fabric. We have more pointers in last week’s post, including how to treat corners and a reminder to be mindful of your fabric pattern (if you’ve got one). That is especially essential in this application since you may want to make sure your pattern lines up across your distinct pieces. But for our fabric it was not a concern.

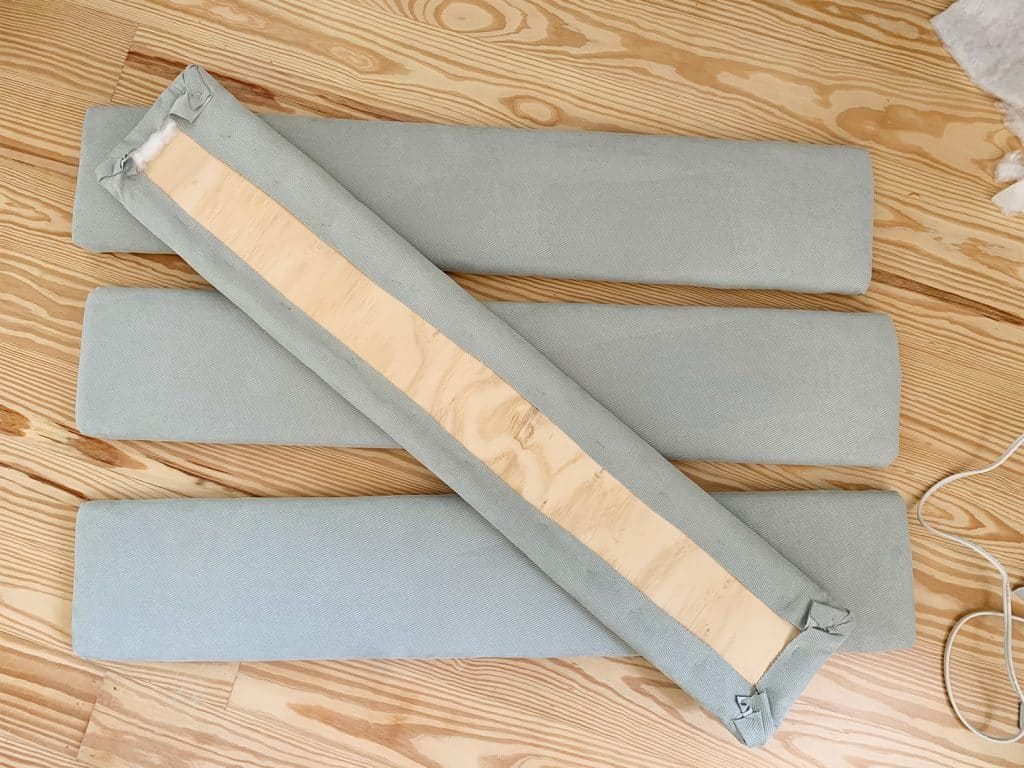

Once each piece is upholstered, you should be left with something like this.

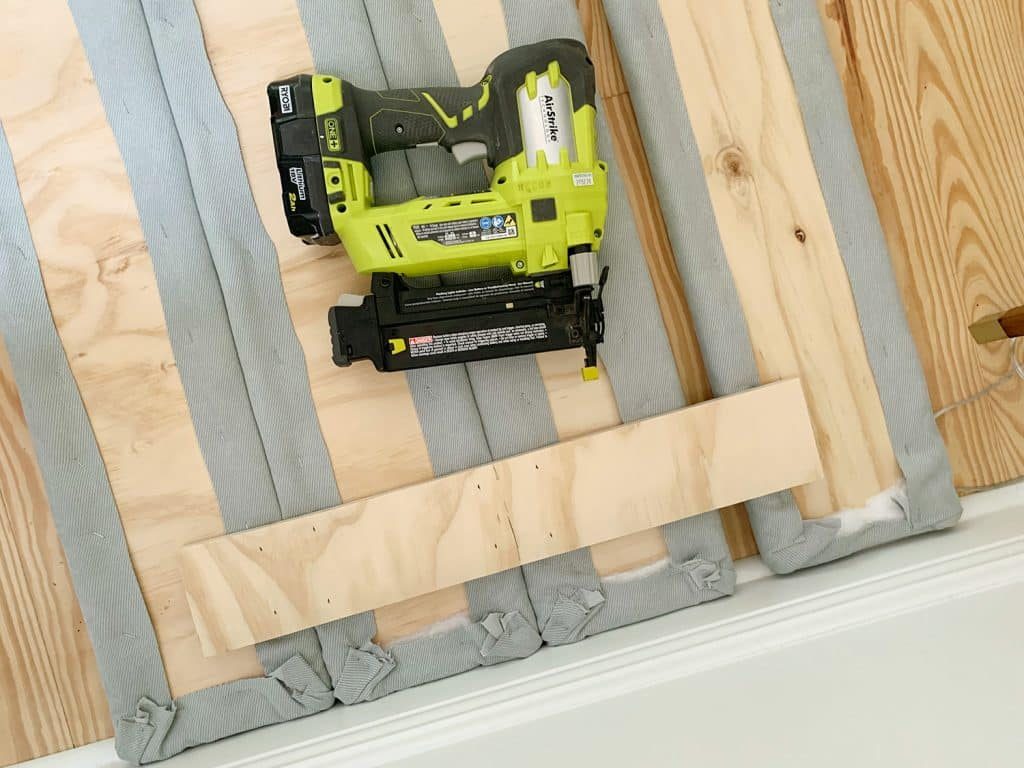

There are likely plenty of ways for attaching them, but we simply used two other pieces of scrap plywood that we nailed (and then screwed) across the back on either side – sort of as a connector that spans all four planks. Make sure that your nails and screws are not long sufficient to go through the upholstered plywood strips (you do not want them to come out the other side of the wood or you might feel them through your batting & fabric).

As you can see from the photo above, to make sure they were nicely lined up, we simply shoved ours against the wall while we did this to keep our edge even. I also recommend truly pushing the pieces tightly together as you attach them to ensure there is no gap between them.

Then you can hang your headboard on your wall in whatever method you prefer, like by attaching some D-rings to it or, what we did, which was: cutting a “cleat” using your circular or table saw with the blade set at an angle (they also sell pre-made cleats). You can see more about how we make our own cleat back in this post.

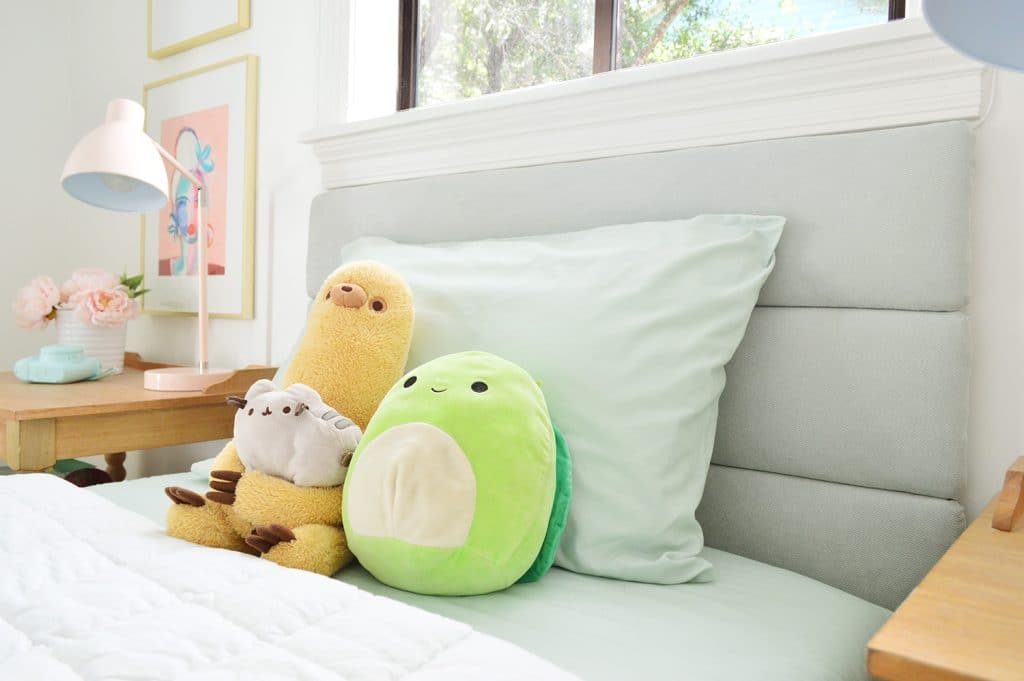

As I mentioned, you only truly see three of the upholstered channels above the mattress, but we intentionally made a fourth one so the headboard would extend all the way below the mattress to the top of the bed (which you can see in the photo below since I pushed the mattress over a bit). So if you are planning one of these for your house, be sure to consider how the headboard relates to this area. Sometimes if a headboard stops right at the mattress it can leave some gaps that you wish you had accounted for.

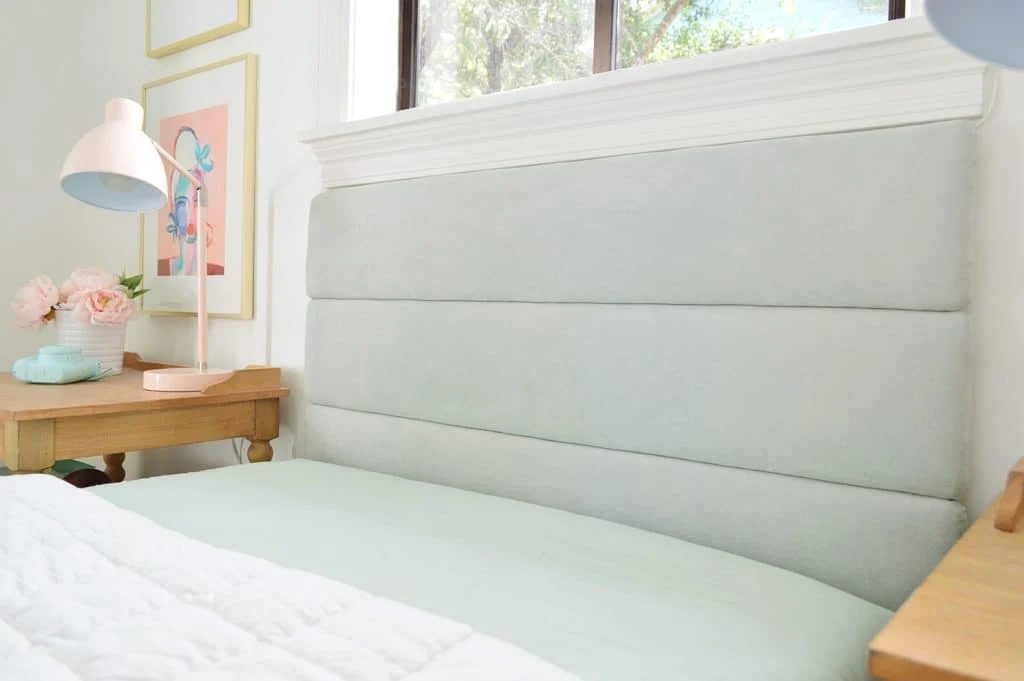

This is what it looks like when the mattress is pushed back into place, so it would not have been especially obvious if we hadn’t brought in that fourth panel, but avoiding that gap between the bottom of the headboard & the top of the bed frame feels more well-planned, so we are glad we took the time to make four of them.

There is more to this room that we want to show you – including some large canvas artwork that we DIYed a frame for (it is so straightforward and we enjoyed the result so much that we immediately made one for another large piece of art that we have). Plus a large colorful painted wall treatment behind the dresser that we cannot wait to share. But that is a walkthrough for another day. Simply know that we strategically cropped a few things (like two whole walls) out of this post to avoid giving away the surprise…

We are also going to take some photos of our bathroom for you too, so there is plenty of stuff in the pipeline. But for now I will leave you with this room’s transformation one last time, because vaulting the ceiling was one of the best things we could ever do for this space. In person it literally feels twice as big. Before…

…and now!

It is funny how a horizontal photo cuts off half of the room when it used to capture the whole darn thing.

Ah that is better.

More Hands-on Headboard Walkthroughs

Want more Hands-on headboard ideas? Check out these other projects we have made using the same basic techniques:

• Adding an upholstered headboard to an existing bed’s headboard
• Creating a multisided upholstered headboard for a daybed
• Making a lightweight fabric headboard

P.S. To follow along with our whole reno of this house, you can see every single update we have made right here in this FL House archive.
