Build Straightforward Hands-on Garage Shelving, step

When we needed some heavy-duty garage shelving for our new shed, we turned to this shelf walkthrough from our friend Ana White. Shelves like these stand up to the weight of heavier items like power tools & paint cans and, most importantly, are also Especially straightforward to build – even for beginngers!

shed storage ideas Hands-on heavy duty wood shelves

We ended up loving this technique so much, we have since repeated in the shed at our beach house (seen below) and the small shed at our current hosue. They are such an straightforward Hands-on project and I find them FAR superior to most store-picked up garage shelving units. Making these long shelves with generous spacing between them to creates flexible storage with straightforward access to even my bulkiest items.

Heavy duty wood shelves in beach house storage shed

Lastly, they are adaptable to fairly much any-sized space, and they are especially straightforward to install when you have exposed wall studs to drill directly into.

Tools & Materials Needed

The material list for this is fairly short, which is another reason this is a strong option for anyone needing to build some swift and straightforward shelving for their garage or shed.

2×4″ boards
1/2″ plywood, MDF or scrap wood
Miter Saw
Table Saw or Circular Saw
Pocket Hole Jig
Tape Measure
Long level
Nail gun
Drill & wood screws
Stud finder (optional)

The amount of lumber you will need depends on the size of your garage and how many shelves you are building. We prefer to build ours from the floor to about 18″ below the ceiling, which should leave room for large items on the top.

Hands-on Garage Shelves Walkthrough

Here is a swift overview of the steps you will follow to construct your garage shelving.

Step 1: Cut Pairs of 2×4″ Shelf Supports
Step 2: Hang One 2×4″ from Each Pair
Step 3: Screw The Other 2×4″ into the First (Temporarily)
Step 4: Attach Vertical Supports
Step 5: Remove Your Temporary Screws
Step 6: Add Side Pieces
Step 7: Nail In Shelf Tops

The beauty of this technique is that it takes a lot of the guesswork out of getting your shelves level and lined up. Plus, they end up especially sturdy!

Step 1: Cut Pairs Of 2×4″ Shelf Supports

We chose to build ours on the same wall as our Hands-on scrap wood organizer, but on the larger side of the window. I began by cutting 4 pairs of matching 2 x 4″s using my miter saw, measured to fill the wall between the corner and the window (53″ in our case). Each pair will act as the bottom of a shelf, with one board going against the wall and the other along the front of your shelf.

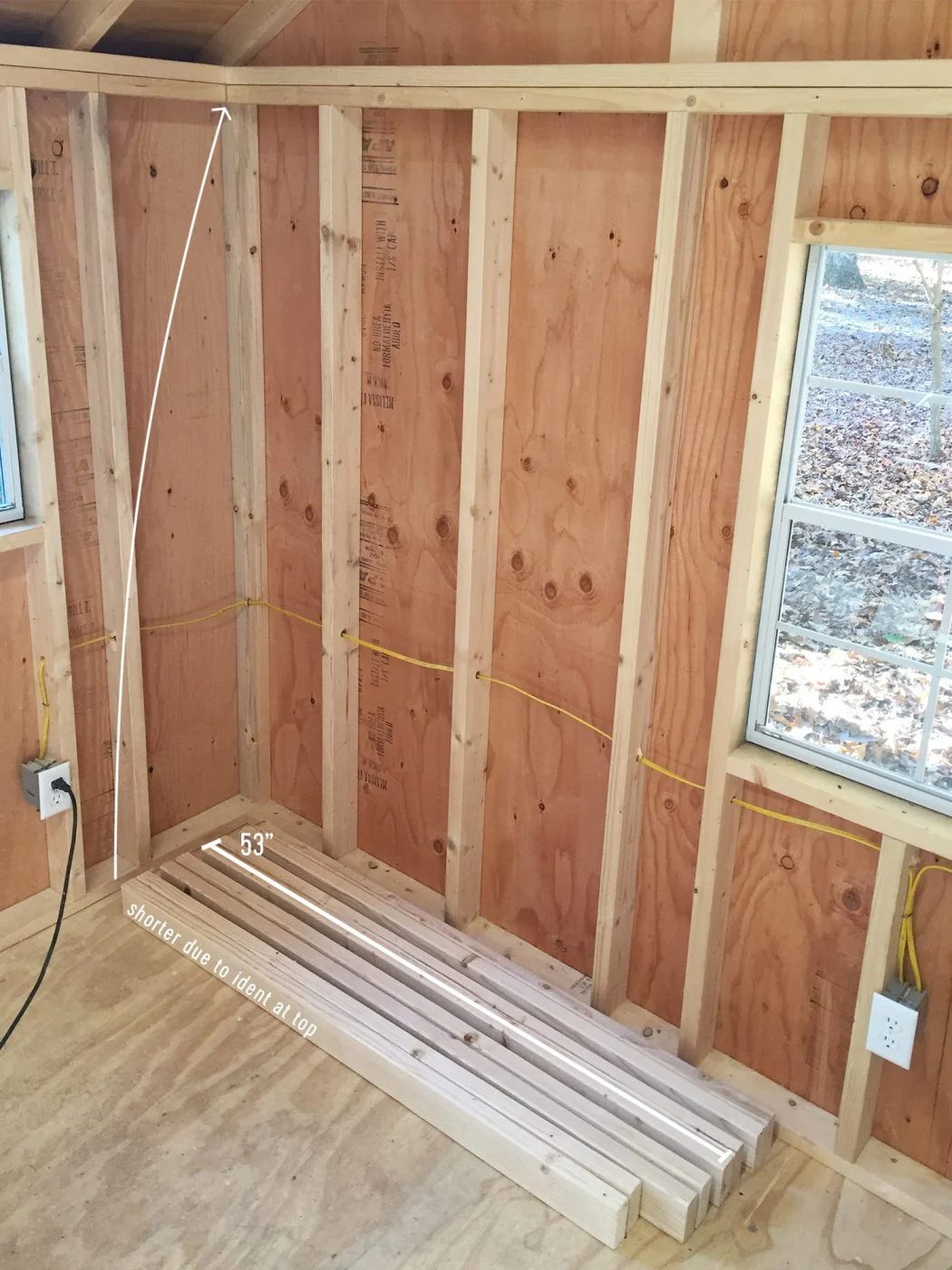

empty wall where garage shelving is going to go with 2x4s

Step 2: Hang One 2×4″ From Each Pair

Using a level and a tape measure, I used long wood screws (into wall studs!) to hang one board from each pair against the wall. Your shelves are ultimately going to rest on top of these boards. You can see the spacing I chose below, but it is truly up to you. You could even customize the height to perfectly fit items like plastic storage totes, paint cans, or other items you know you will be storing.

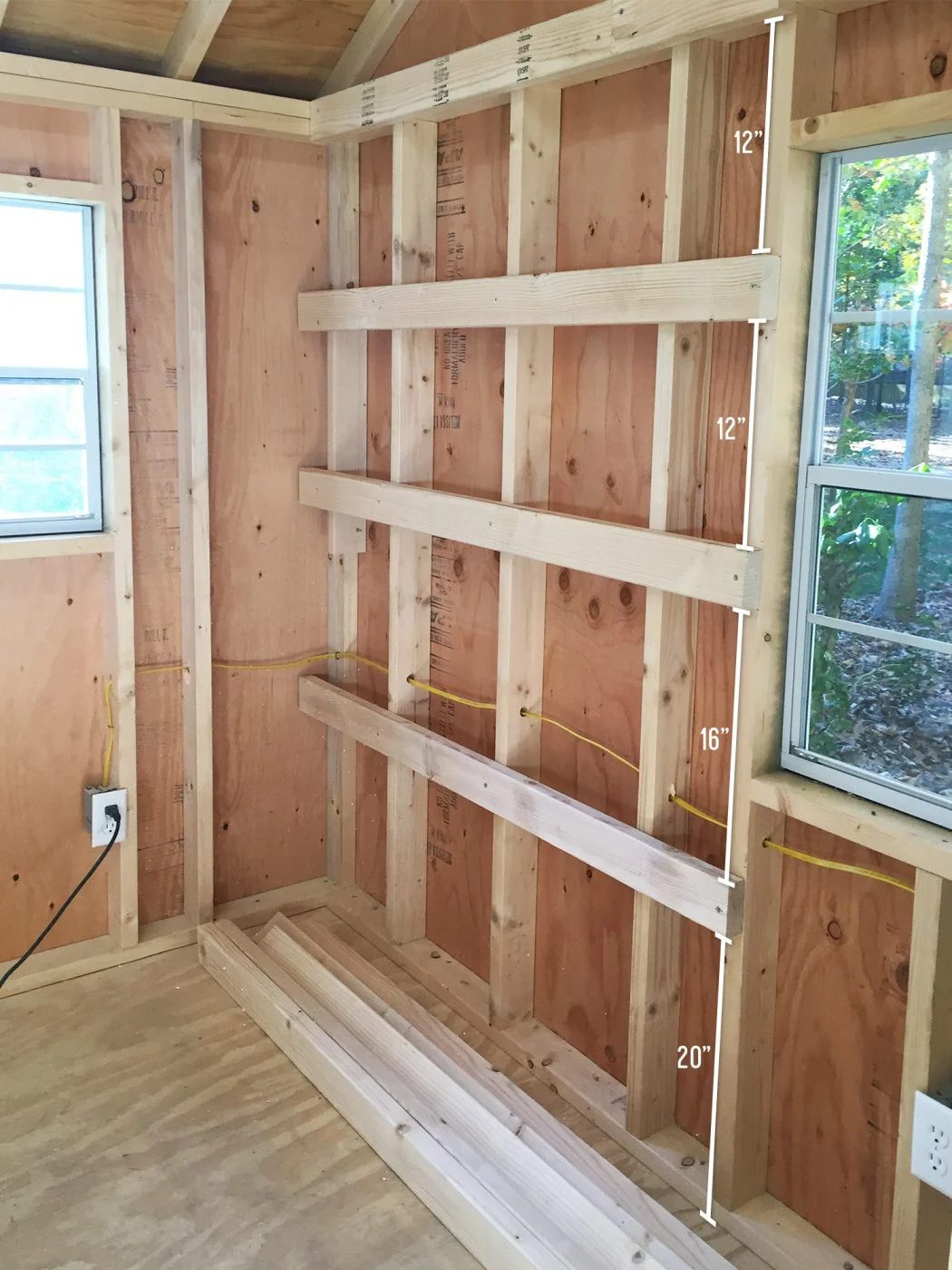

wood shelf supports attached to shed wall for Hands-on garage shelves

I also recommend making your bottom shelf taller than the rest to create storage space for larger or heavier items you will not want to lift. And leave sufficient room up top to fit items between your top shelf and the ceiling. Ours was a little funky due to the slope, but you can see in the “after photos how it turned out to be the ideal place for my wet saw.

Step 3: Screw The Other 2×4″ Into The First (Temporarily)

Next – and this is going to sound weird – you loosely attach the other half of the each pair directly over the boards already in the wall, making sure to line everything up perfectly.

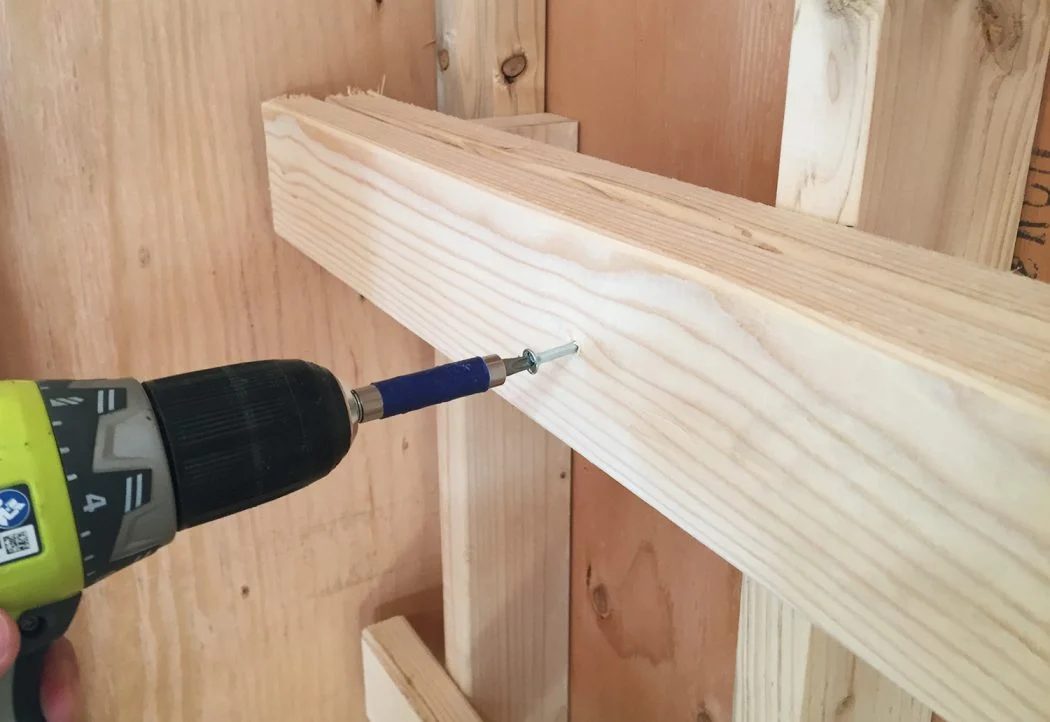

screwing in horizontal support for Hands-on garage shelf

I used two screws per board, and you do not have to drive your screws all the way in, simply sufficient to hold everything together for the next few minutes. This part is simply temporary.

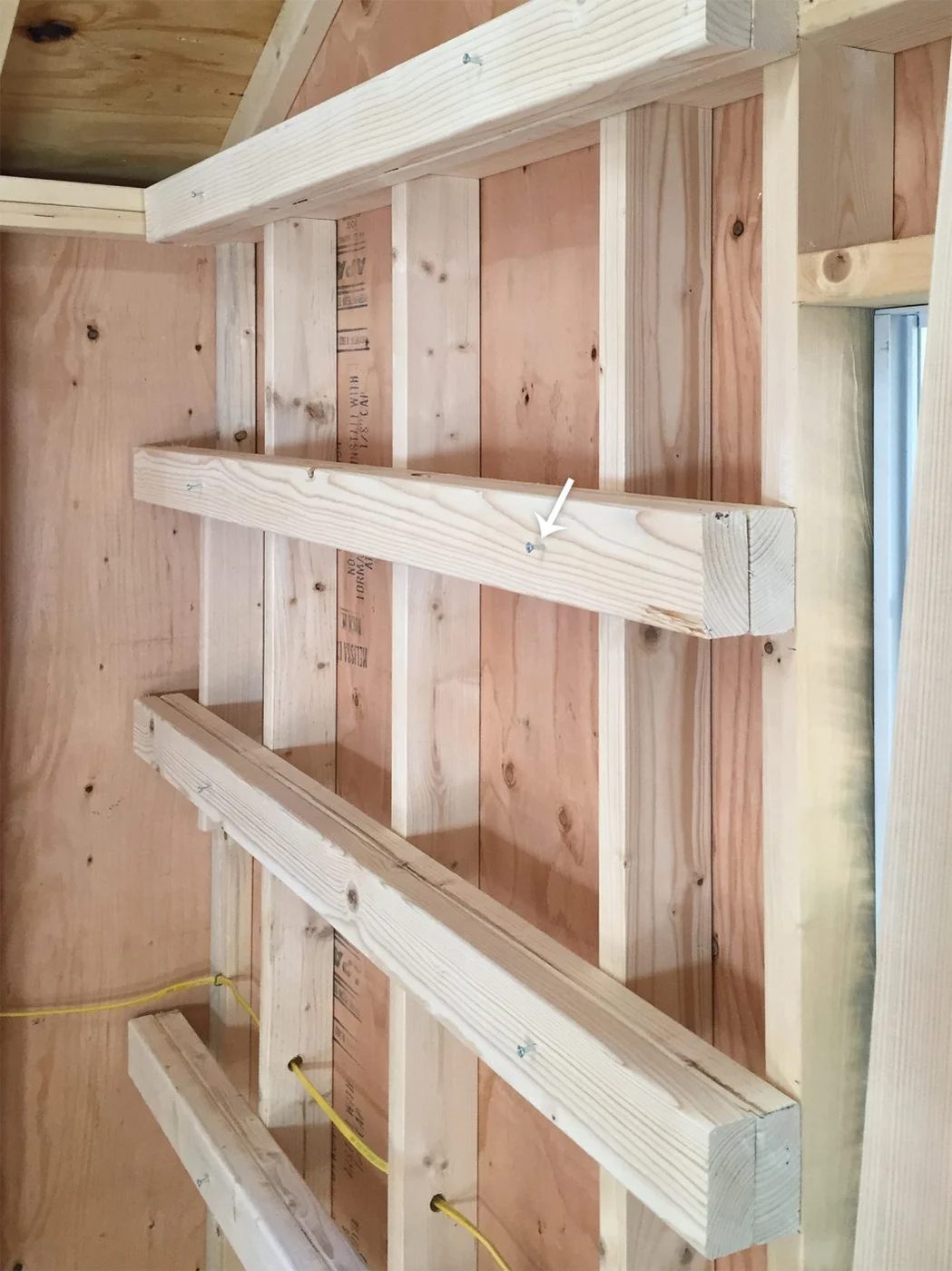

temporary screws into horizontal shelf supports for garage shelving

Step 4: Attach 2×4″ Vertical Supports

Next, you are going to add vertical 2 x 4″ supports that rest on the floor and are cut to go no higher than your top board. I began with three, but as you saw in the final photo – I ended up removing the middle post. You will want to screw these posts tightly into the outer horizontal pieces (make sure your screws are not so crazy long that they go into the back pieces too). And again, use your level to keep them straight.

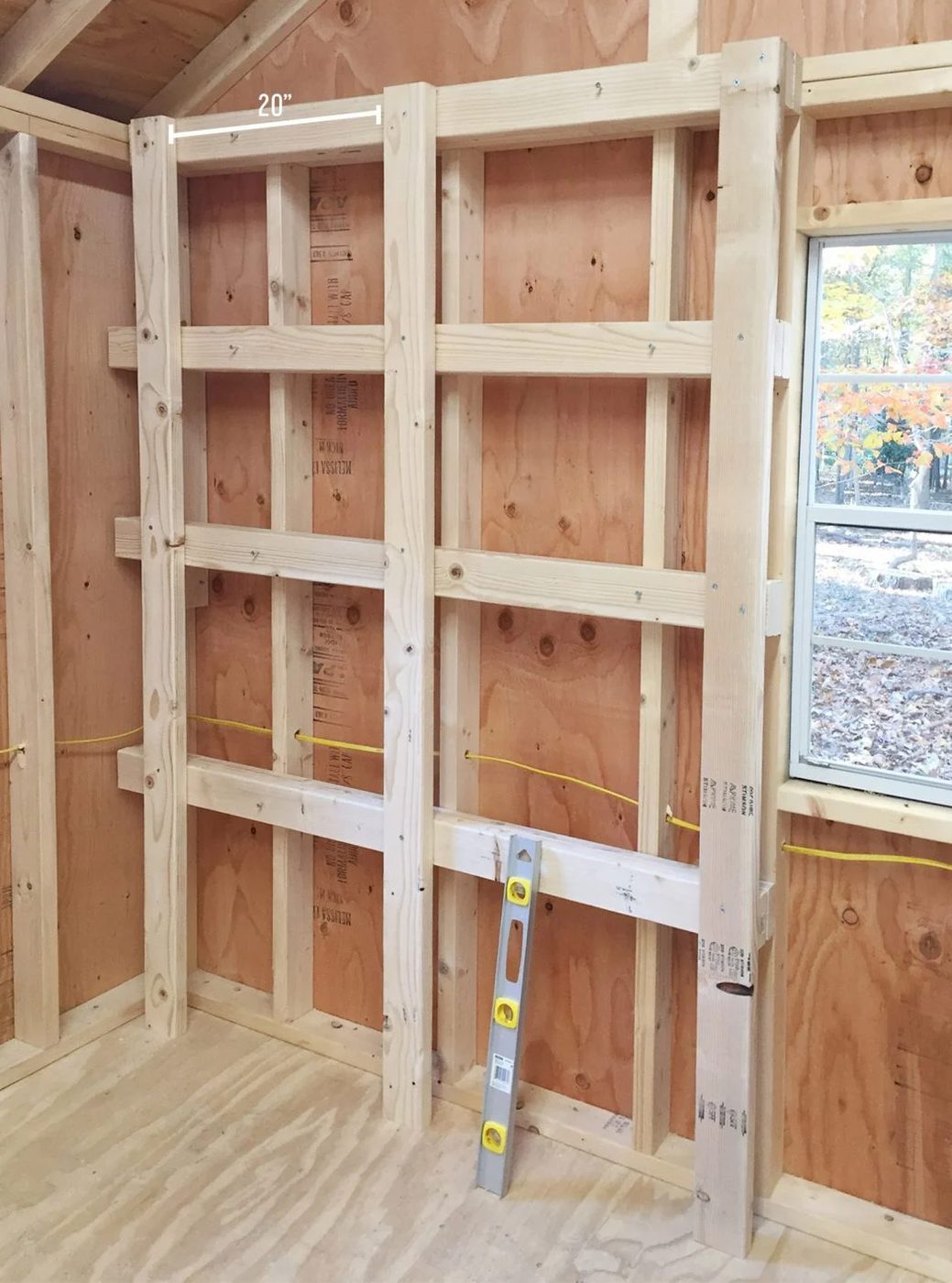

shed storage ideas vertical supports brought in to wood shelves

Step 5: Remove Your Temporary Screws

Now you can remove those “temporary” screws and the whole front portion of your shelving system will pull away from the wall in one glorious piece. Here you can see what that looked like in our beach house shed.

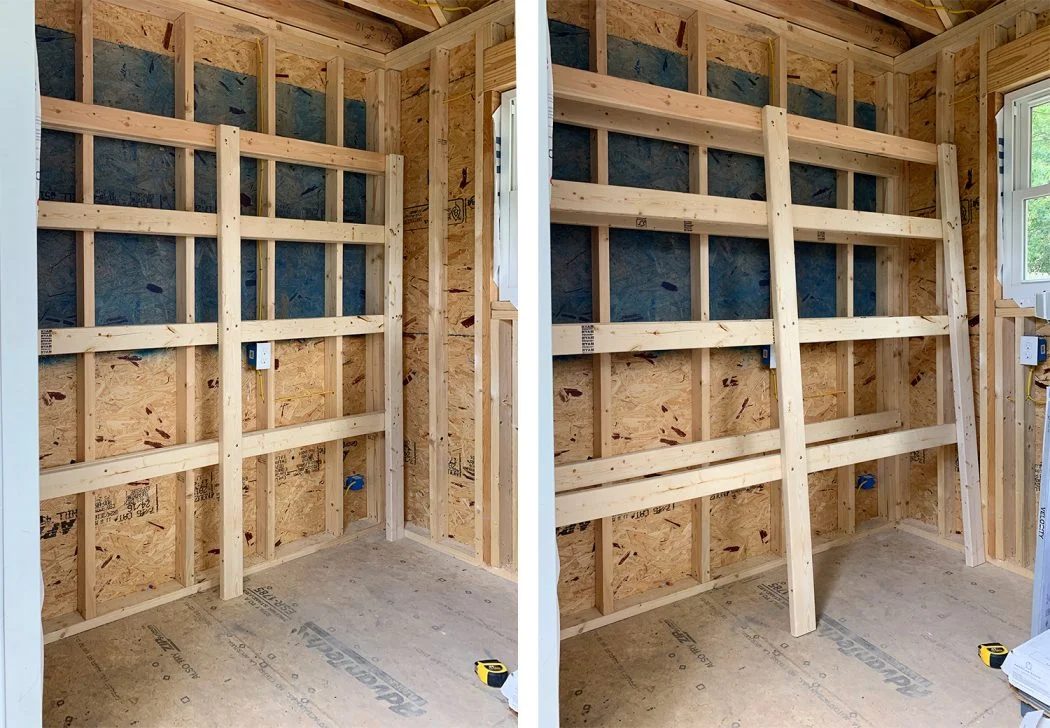

heavy duty Hands-on wood shelves with front panel piece pulled off

You are in short cloning the back frame exactly so that when you pull it off the front frame, the pairs of horizontal shelf supports will be perfectly lined up.

Step 6: Add Side Pieces

Next, you simply have to add some side pieces that will connect front and back horizontal supports. We cut a bunch of 12″ using our miter saw and drilled pocket holes in them using our pocket hole jig. This will make the total depth of each shelf about 15″. You adjust this measurement to your needs (we had a window on one side that prevented us from making them deeper). I would not go much larger than 18″ without using thicker plywood or adding extra cross support under your plywood. Otherwise they may sag over time.

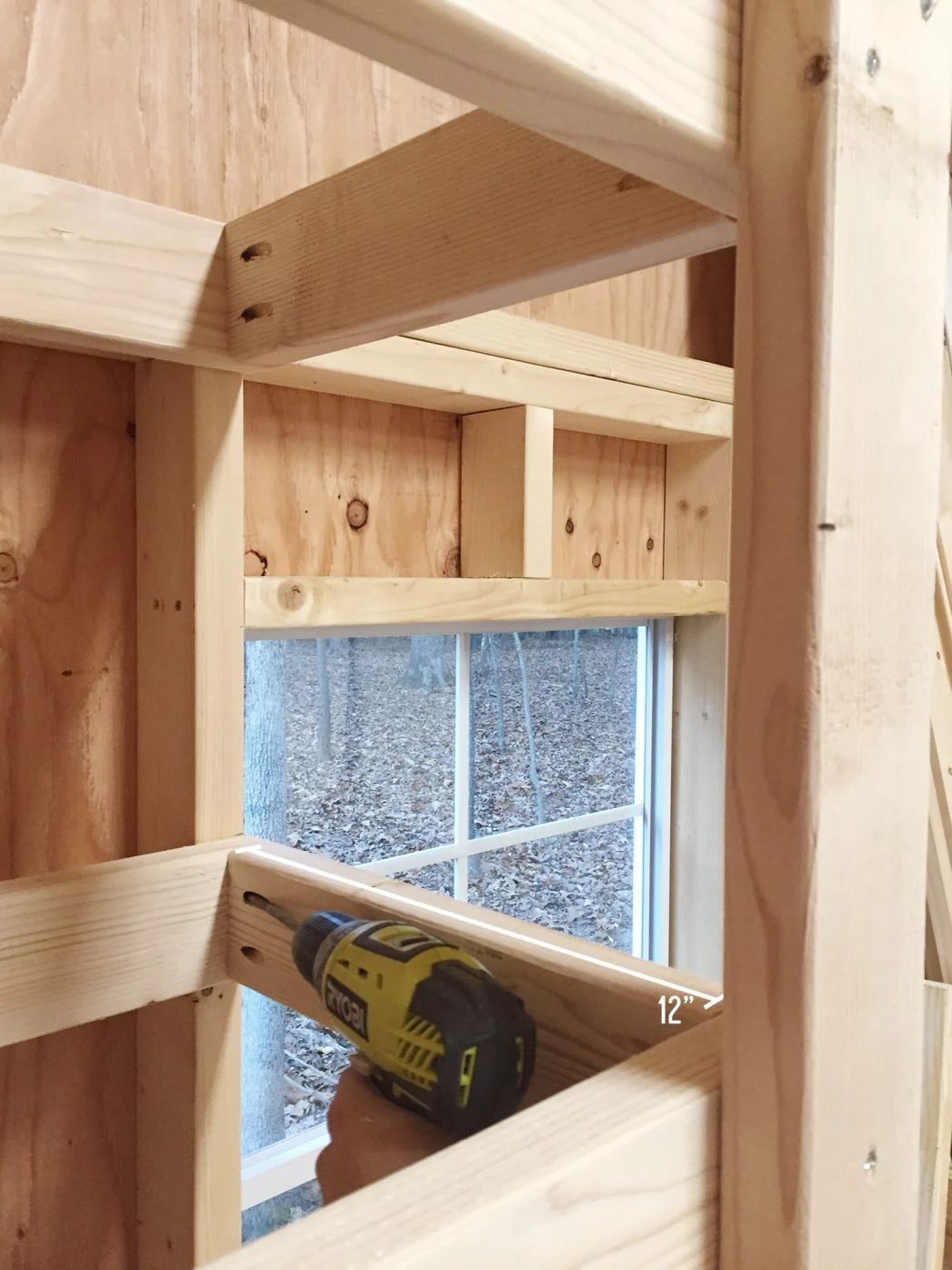

screwing side pieces into wood garage shelving

When you are done with that part – your shelf frame should look a little something like this.

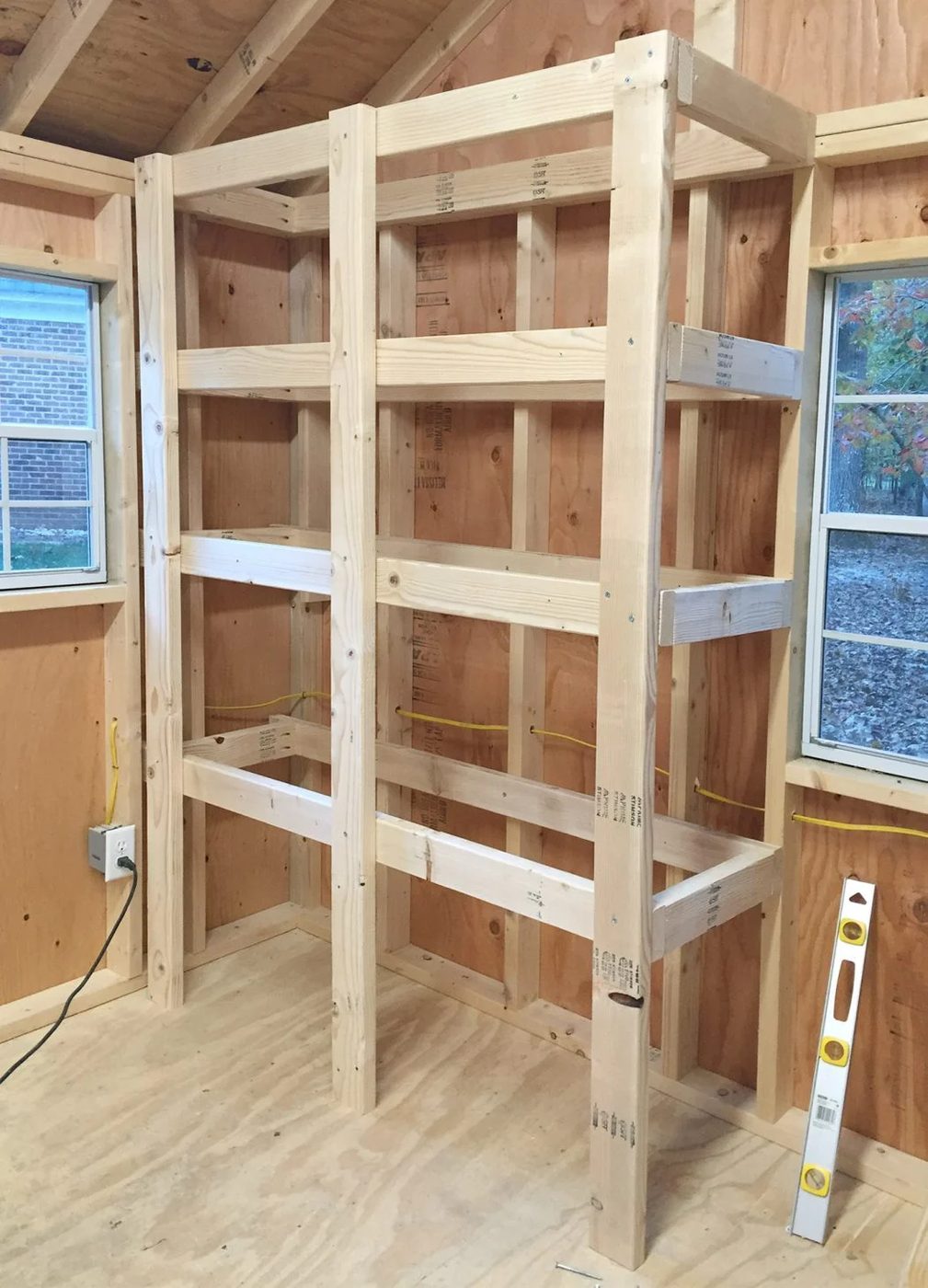

heavy duty wood garage shelving before plywood tops are applied

Step 7: Nail In Shelf Tops

Next, I brought in some leftover 1/2″ plywood pieces to the top with nails (you could also use wood glue). I used my table saw to cut them exactly to size, but you could also cut them using a circular saw. Stores like Lowe’s and Home Depot will also cut sheets of plywood to size for you.

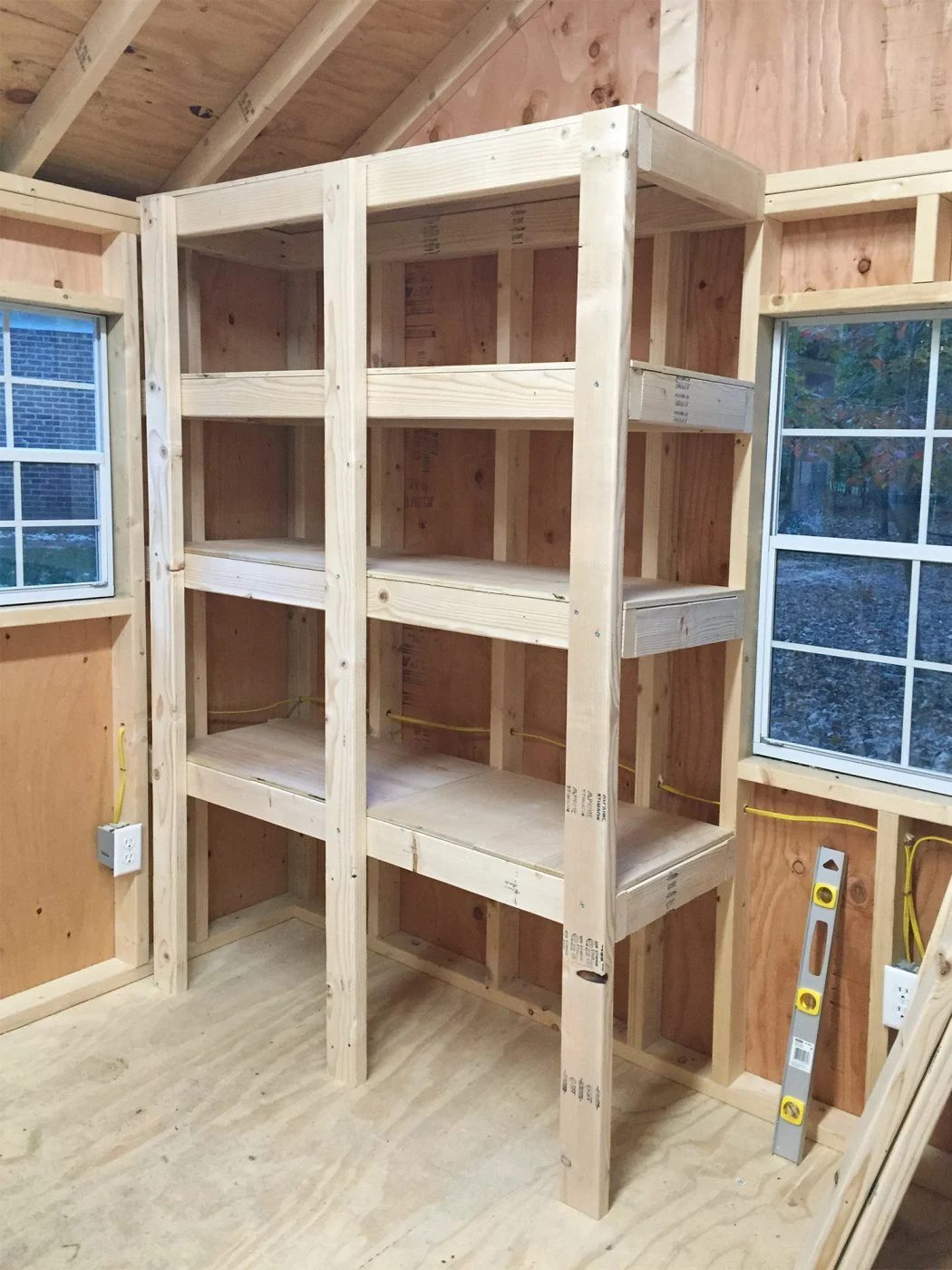

wrapped up Hands-on garage shelves with three vertial supports

It was around this time that I realized it was EXTREMELY steady and I could remove that middle post (which would ultimately make it easier to slide large objects onto the shelves).

wrapped up garage shelves in unfinished shed with tools and saws

I will admit I did not truly “plan” what was going to fit on there when I built it, but it turned out to be strong for plenty of our boxed tools, random painting supplies, various saws, etc. This thing is so dang sturdy you could invite a few dozen kids to climb all over it. Or fill it with tons of heavy tools, which is what I did. Sorry, kids.

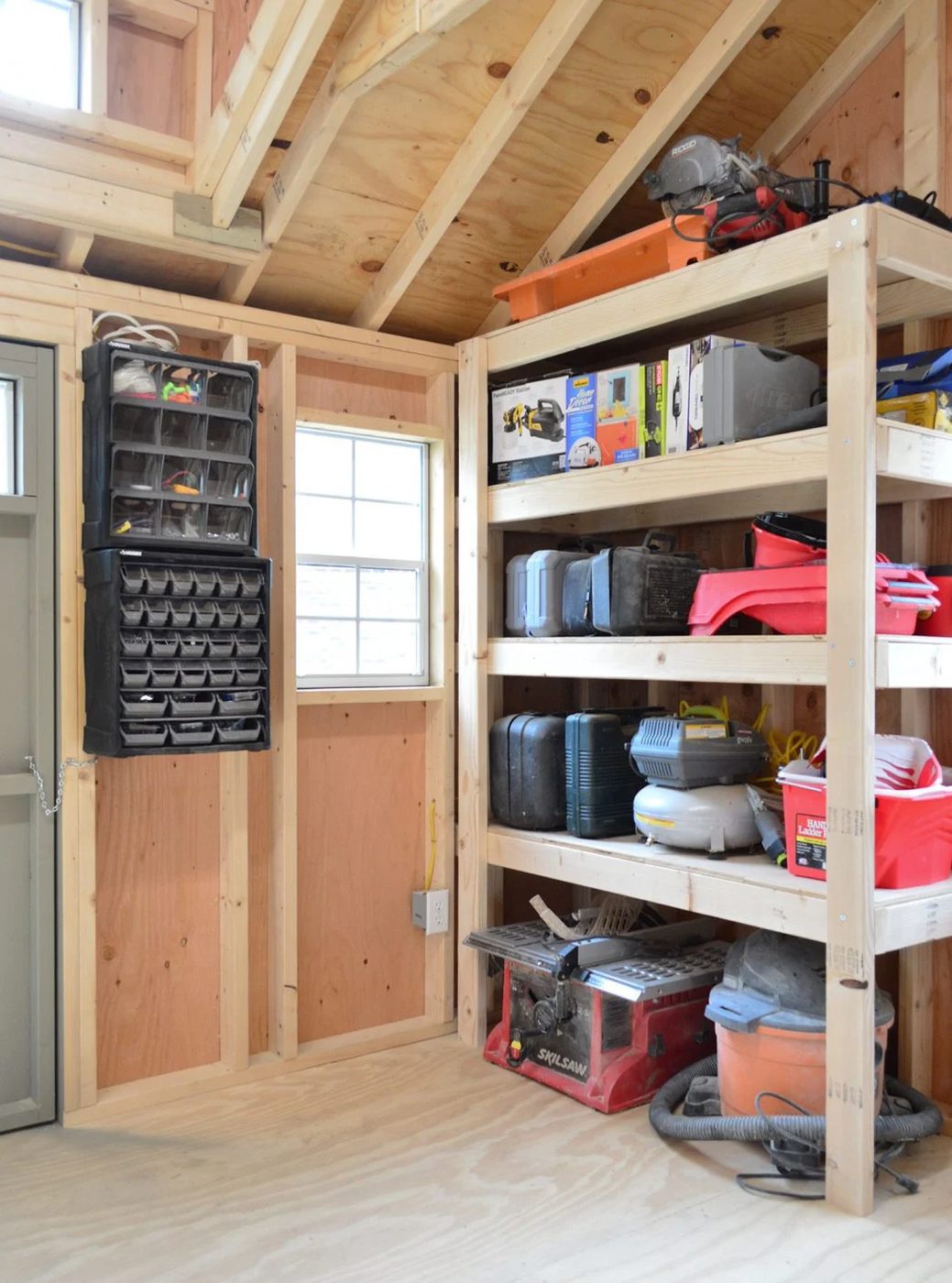

heavy duty garage shelves in shed with tools

You can also see more about how we customized this same garage shelving for our beach house. We use it to store plenty of spare tile and paint, meaning we do not need to access everything quite frequently. So to make them even more useful, we hung some storage hooks on the front for all of our beach chairs and umbrellas.

Heavy duty shelves for beach house shed with beach chairs hung on front

And again, thanks to Ana White for giving such a plain and effective solution for some heavy-duty Hands-on shelves! We have also got a round-up of more Hands-on shelf ideas for other parts of your home too.
