Hang A Range Hood, step by step

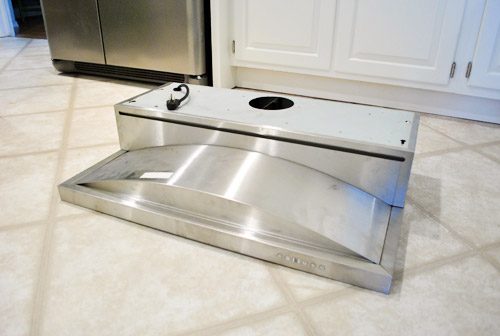

“How’s it hanging?” That was the big question last week. Not in the “Hey, how ya doing?” sense of things, but more in the “Um, how are we gonna hang this $60 hood we found on Craigslist” kind of way.

Sherry talked last week about how we planned to encase it in a Hands-on’d wood cover (see inspiration pics back on last week’s post). Both of us were so excited about (1) the price tag and (2) the final look that we did not truly think through the middle part: in fact installing the darn thing. So yeah… #planningfail?

Here was our challenge (beyond simply not having any of the installation materials or instruction): this is an under-cabinet hood and, well, we do not have any cabinets to install it under. I figured that there were dozens of sites online detailing how to convert an under-cabinet hood to a wall-mounted one, so I was not worried… until my Google searches began coming up empty. That is when I began to second guess our plan. Was this simply something that could not be done?

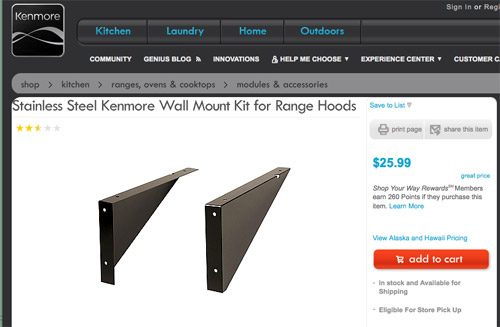

Then I discovered these.

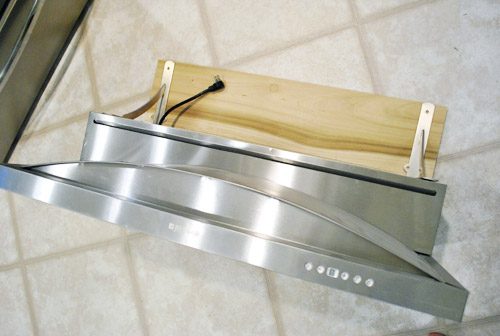

We did not buy these (our hood is Jenn-Air brand). But the fact that Kenmore sold bracket specifically “for mounting range hoods to wall when overhead cabinet is not used” meant it was not a fully crazy idea to retrofit ours to hang on the wall as well. So Sherry and I concocted a plan, did some shopping, and readied ourselves for some hood hanging (and possible hood hanging failure, as is consistently a possibility when we attempt to figure this stuff out as we go). This picture will make more sense soon, but simply know it involved some wood pieces as a makeshift mounting panel and some heavy duty metal brackets as a stand-in for a cabinet.

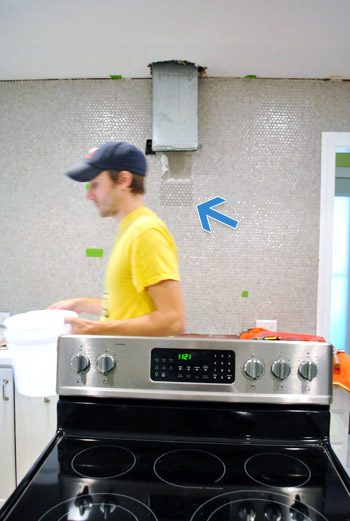

But before we could put our plan in motion, some details needed to be taken care of. You know, little things like oh-yeah-we-did not-tile-high-sufficient-under-the-vent-pipe. Another lapse in planning. Oh well, it took about 20 minutes to whip up a small batch of thinset and fill it in with some spare tiles. Yes, it was slightly maddening to have to go back to the tiling phase (especially for eight measly rows) but by this point we have learned simply to laugh. Wince a little. Laugh some more. And get it done.

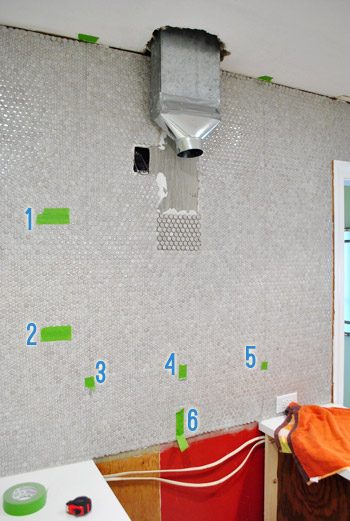

Then we mapped out all the essential stuff on the wall to ensure that things would hang where they were supposed to hang. Looks fairly crazy, right? But I promise it makes plenty of sense…

All of this painters tape is marking essential reference points, such as:

• 1 & 2: Where our floating shelves would go – essential because we hoped the bottom of the hood and the top shelf to be lined up (which was about 34″ from the top of the counter which is right between the hood manufacturer’s recommended 30″ – 36″ distance from the stovetop)
• 3, 4, & 5: Where our studs are – essential so we could attach the hood securely to the wall
• 6: The center point of our stove – essential so the hood would hang squarely over the stove

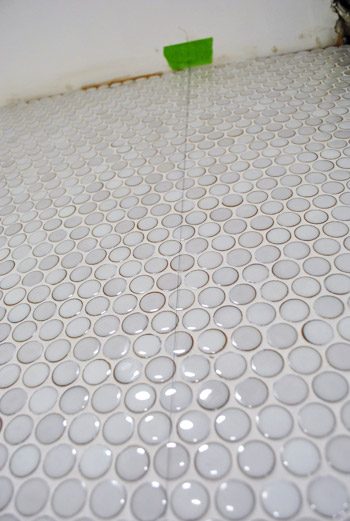

In case you are wondering how I located the studs, it was in fact thanks to some forethought on Sherry’s part. Back when that wall was open she begged me to somehow mark where they were before we tiled and covered everything up, so I opted to make small marks on the ceiling to keep track of where each stud was. Then I taped a piece of thread to that mark, tied a paper clip to the other end (to weigh it down) and voila – a perfectly marked stud all the way down the wall. And once we hang our crown molding around the ceiling those little stud-marking dots will be hidden once and for all.

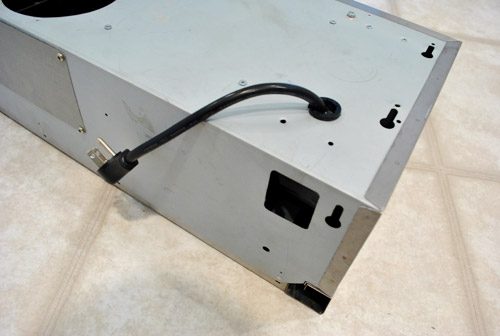

With all of our guides marked, it was time to screw in our first piece of wood. Here is the deal with the wood. The hood by itself was technically wide sufficient to hang from two studs, except the studs did not line up with the two notched holes in the back of the hood (which were at either end) and I did not trust that it would hold that way even if they were lined up perfectly.

So we figured we’d screw a slightly wider-than-the-hood piece of wood into two studs (and use a heavy duty anchor to secure it in a third location) and then hang the hood onto additional screws that lined up with the hood’s notched holes. We in fact got a contractor’s blessing (simply did not feel right drilling into our fairly wall o’ tile without double checking our plan with an expert first. So after that phone call we took a few deep breaths and moved on to the next (quite scary) part of our plan: drilling into our tile. GASP.

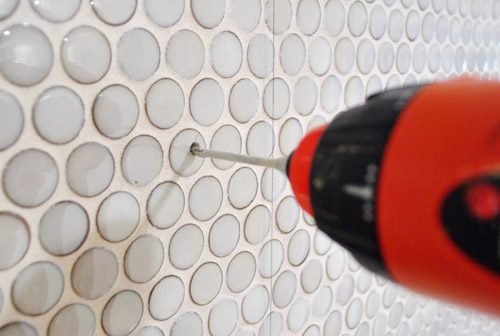

I picked up a special bit that is meant for glass and tile. It took a bit of pressure, but eventually I got all of my holes drilled. Though I think we both silently freaked out the whole time drilling was in progress.

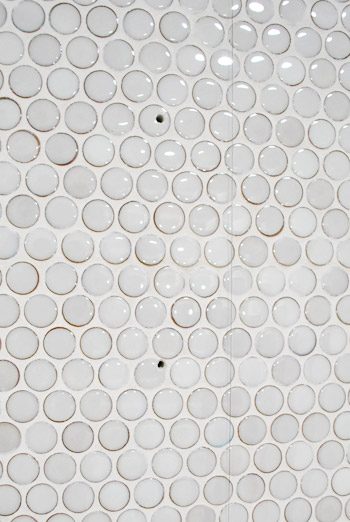

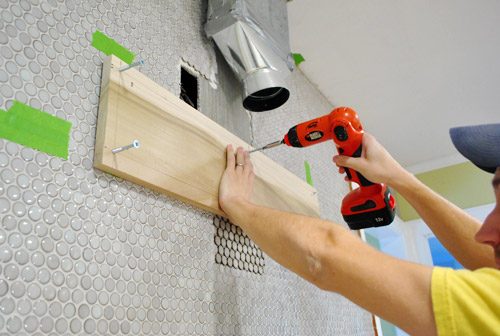

Once we got over having riddled our tile with holes (okay, there were simply six) I used some 2.5″ screws to secure the chunky plank of wood to the wall. I have to tell you, feeling those screws grab the stud so tightly was one of the most confidence inspiring parts of this process. I felt like I could’ve hung my whole body weight from this thing – that is, if I was able to grip the compact ledge with my lanky girl fingers.

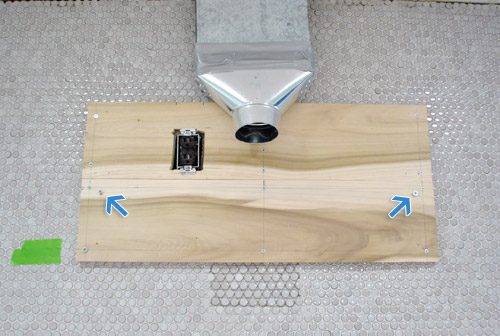

With one board in (to hang the hood from) I then had to attach a second one (to hang the brackets from) also with long screws into two studs and a third set of screws into heavy duty anchors to further enforce things. Then it looked a little something like this. Note: the vent pipe is slightly off-center, not the boards (so once we build the frame for the hood that will be solved and it’ll all look centered). Oh, and the blue arrows are pointing to the two screws that the hood will hang from.

We felt fairly good when we realized that most upper cabinets are simply held to studs with screws and then loaded up with dishes and plates and other items (and then a hood might be brought in on top of all that weight) and the whole shebang stays up.

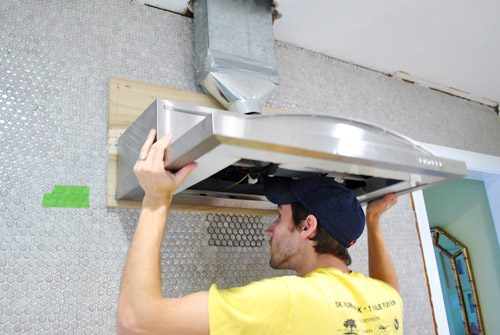

Speaking of which, it was time to put the hood up (since the brackets would need to go up after the hood). Okay, so perhaps this part was scarier than drilling into tile. We half pictured the whole wall of tile pulling off of the studs. But lucky for us, it did not budge. It was up there solid as a rock. Which is good news, because clearly I could use less time worrying about hanging hoods and more time spent shaving…

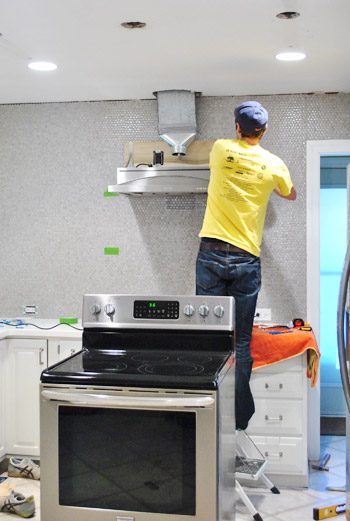

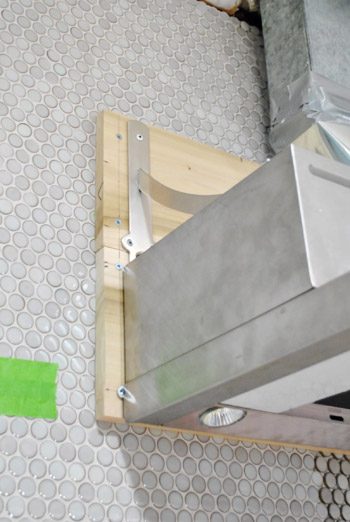

Anyways. Sherry supported the hood simply in case (she’s the ideal height to rest it on her head from underneath it while standing on a small stepladder) and I attached the brackets to the wood panel and then into the hood using the same slots where it would’ve attached to a wall cabinet.

It was feeling plenty secure by this point, so I relieved Sherry’s head from hood-holding duties while I secured the second bracket and she took some more photos.

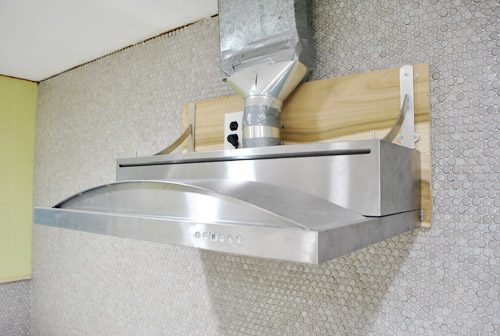

Once it was tightly held to the wall, I took care of some of the finishing touches – like attaching the vent pipe to the hood and plugging it in (btw, how lucky were we that the existing plug hole in the range hood was fairly much perfectly placed for our outlet???) – and we were in business. Phew! Update: We have since learned that metal foil tape (sold at hardware stores) is better for taping that duct together than duct tape (regardless of the more fitting name of the latter – haha) so we will be retaping that vent with foil tape to keep the seal pleasant and strong for the long term. Thanks for the pointer folks!

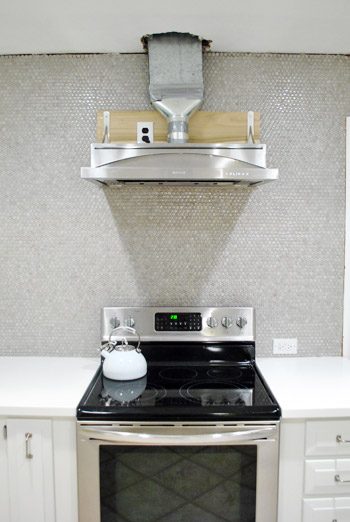

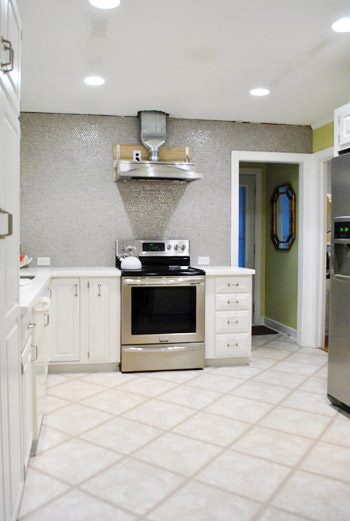

Okay, so admittedly it looks kinda ugly right now. The exposed pipe / wood / giant hole in ceiling are not truly a good look, are they?

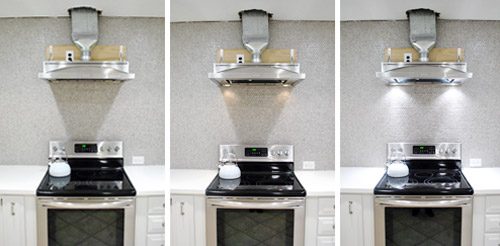

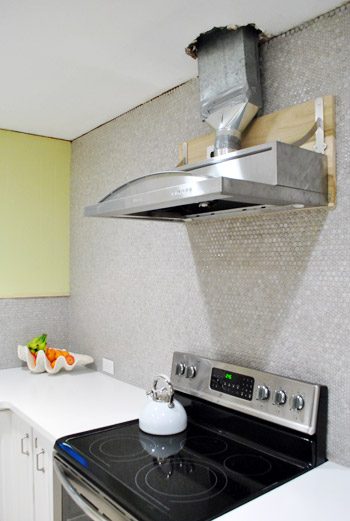

But it was a good start. Not only did we have a hood for the first time in over two months, but we had a hood that was not crazy close to the stove like our old microwave was (we hung it 34″ from the top of the counter which is right between the hood manufacturer’s recommended 30″ – 36″ distance from the stovetop). And this hood has two fancy light settings. Oooooh. Ahhhhh.

And I know the exposed wood looks kinda crazy – especially because it sticks out about an inch on the sides. But I promise this is all part of a plan (hint: they’ll make for a good spot to attach my homemade wood hood cover), so simply bear with me for a couple of days.

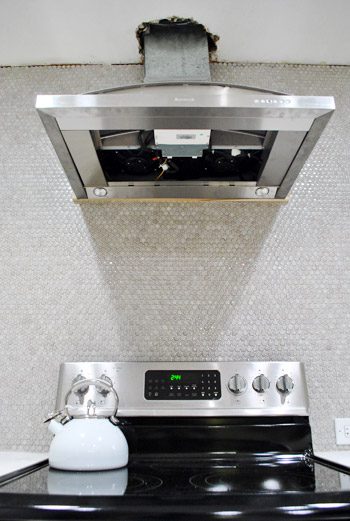

Oh and do not mind this POV, we did not have the filters snapped in yet (they are in short big stainless steel rectangles, so it looks a lot better from below once those are in). We will have to share more photos soon.

Now in case you are still worried about this thing coming crumbling down overnight (we were – we in fact pulled the stove out before we went to bed the first night simply in case!), know that it has survived a few full days now with nary a creak or shake. So without jinxing ourselves, Sherry and I are calling this hanging project a success. All is good in the hood, as they say. Between the long screws going firmly into those studs and the heavy duty brackets also adding extra from-the-top support, this guy is fairly darn secure. So after a few days of breath-holding, Captain Careful can officially exhale.

Now for the lively (?) part – building a fairly wood cover for it. Somebody crank up my jams! We will be back with all those details in a few days, but in the meantime, what did you folks do this weekend? Any heavy-object hanging? Tile drilling? Using your head to support something? Oh and something crazy crazy crazy is going on in our house today (well, it starts today and lasts for the next three weeks!!!) so we will fill you in on all that tomorrow (once we have lived through one day of it and have some photos to share).
