Board and Batten Tutorial: Step-by-Step Guide for Stunning Walls

Board and batten is one of our favorite easy DIY projects. It’s beginner-friendly and instantly elevates a room, entry, or hallway. This is the third home where we’ve installed this style of wainscoting, so we’ll share our tips for making the project faster, simpler, and more affordable than traditional board-and-batten installations.

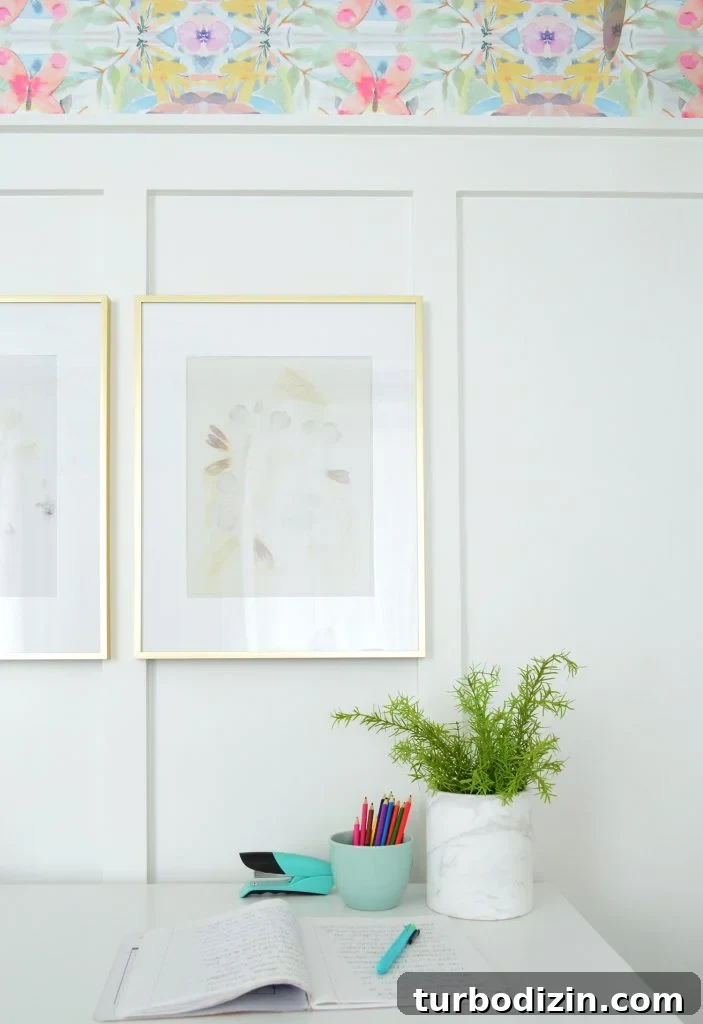

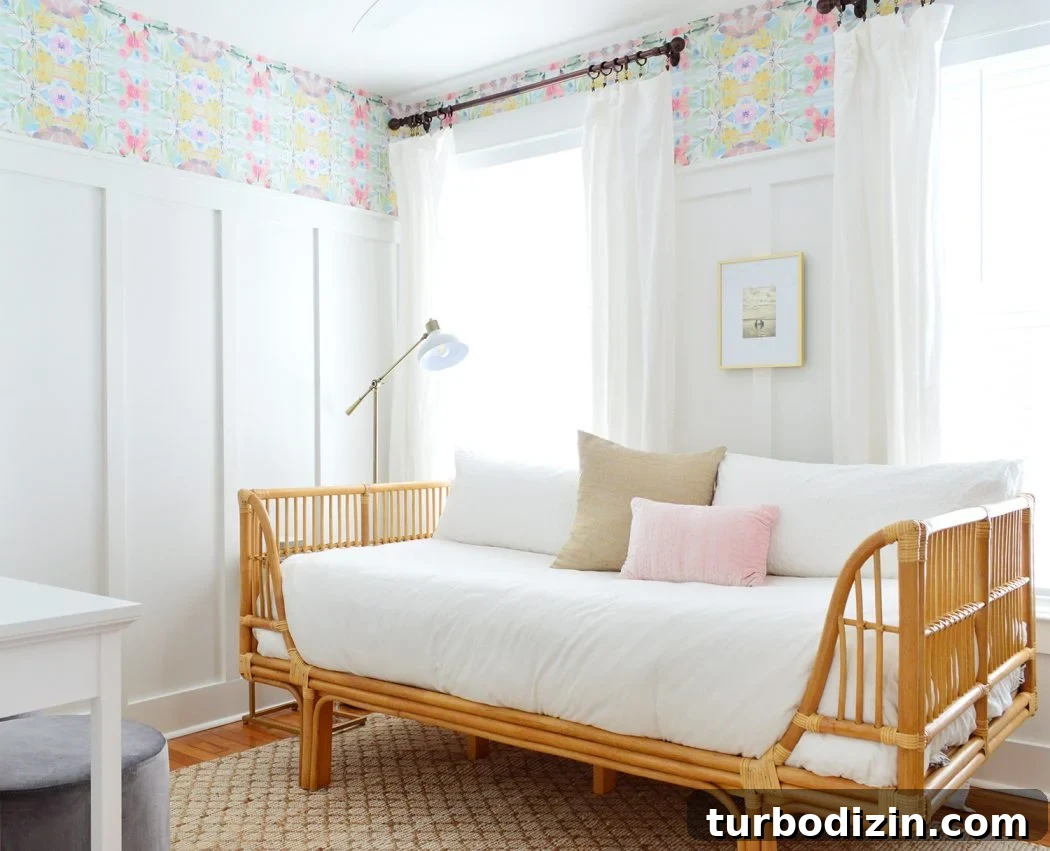

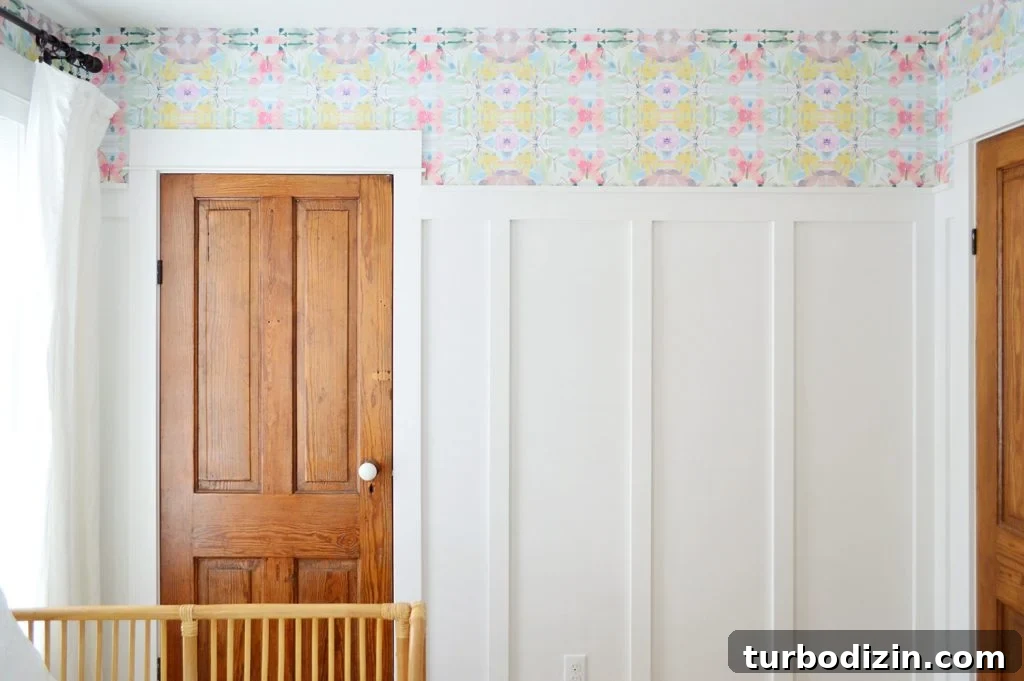

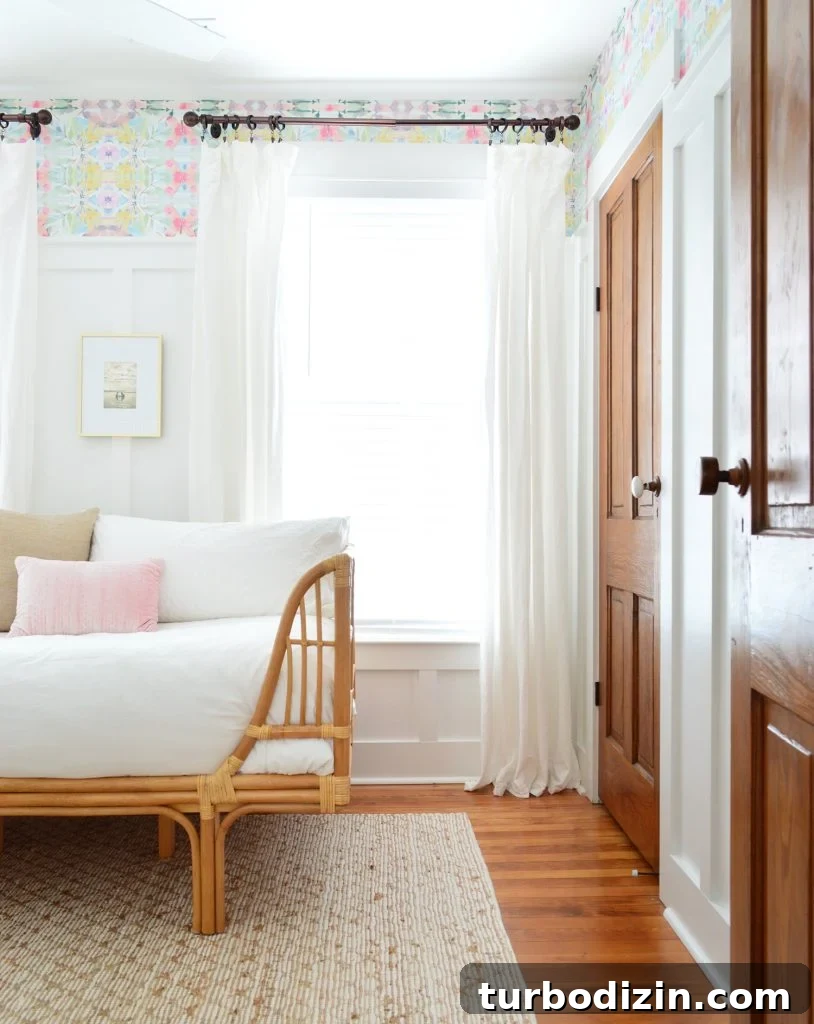

For this beach house bedroom we installed a taller board and batten and placed peel-and-stick wallpaper above it. The result is a balanced mix of classic trim and colorful pattern that fits this guest room perfectly.

What is Board & Batten?

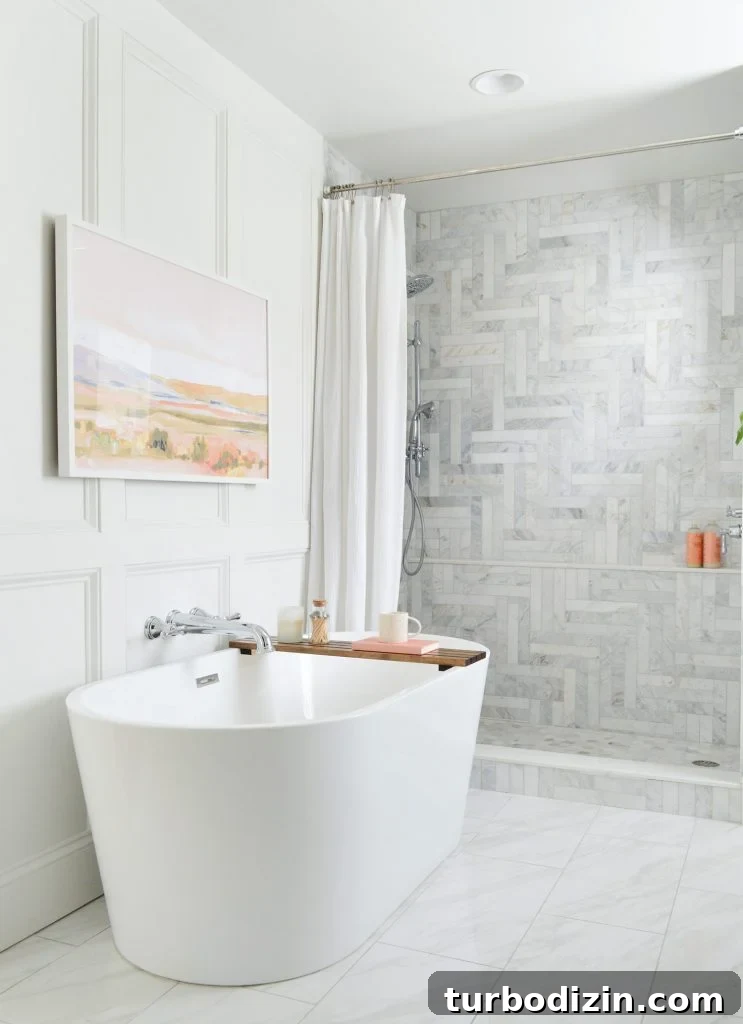

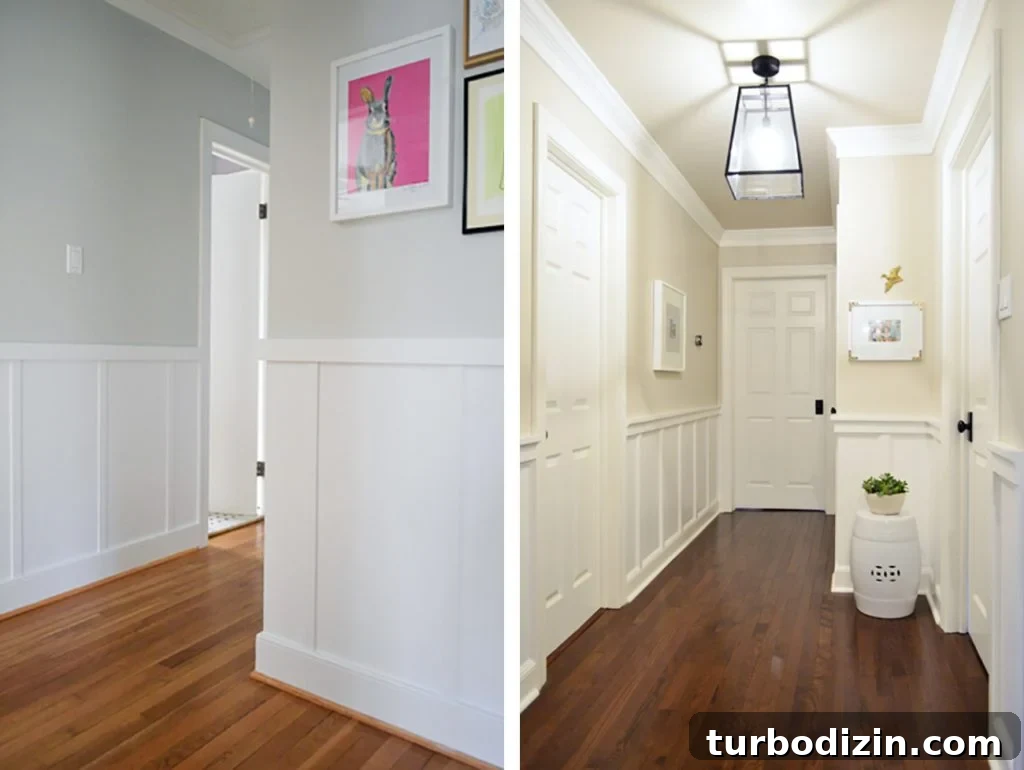

Board and batten began as an exterior siding technique, but it works beautifully indoors as paneling too. Thin strips of molding (battens) are placed over the seams between wider boards, though many DIYers skip the wider boards and attach battens directly to drywall, then paint everything the same color. Installations can run floor-to-ceiling or partway up a wall, and battens can be vertical, horizontal, or arranged in boxed patterns. The look is highly adaptable: it can read traditional, cottagey, modern, or anywhere in between.

Step 1: Plan Spacing

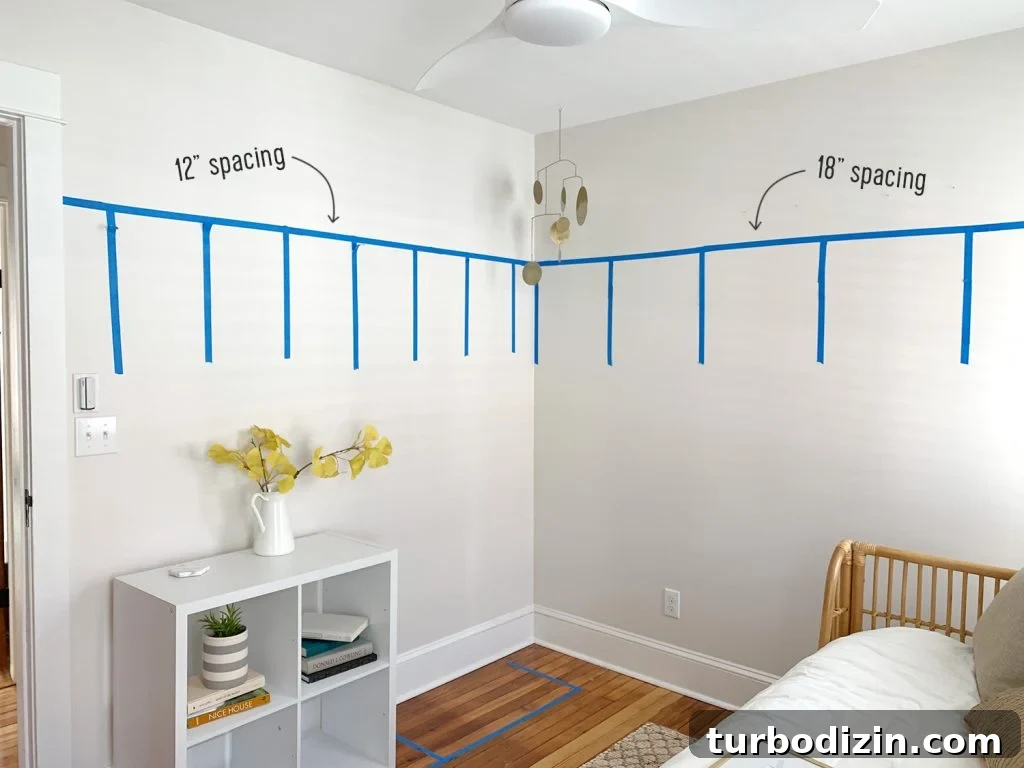

Decide the height of the top rail and the spacing between battens. Use painter’s tape to mock up different arrangements and choose what looks best in the room. In this project we chose 18″ centers for battens and set the top rail about 20″ down from the ceiling to minimize wallpaper needed above.

Step 2: Mark Studs

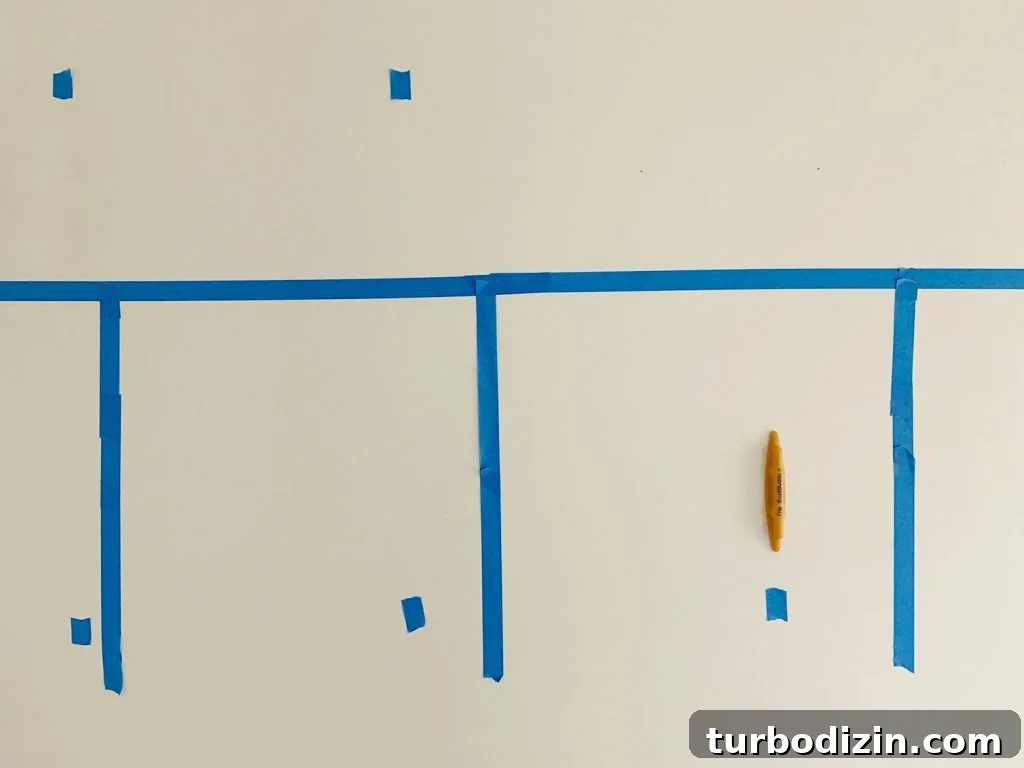

Locate and mark studs around the room with a stud finder. Mark both high and low so you have clear reference points. Securing the top rail into studs with your nail gun will provide the most stable result.

Step 3: Prep Baseboards

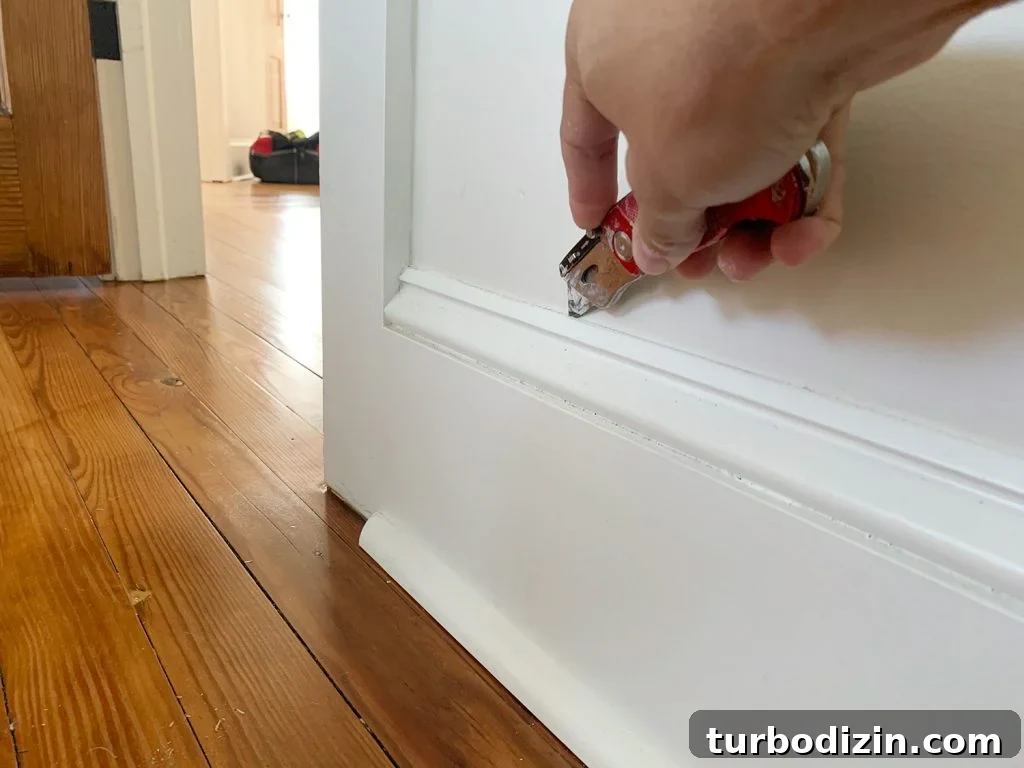

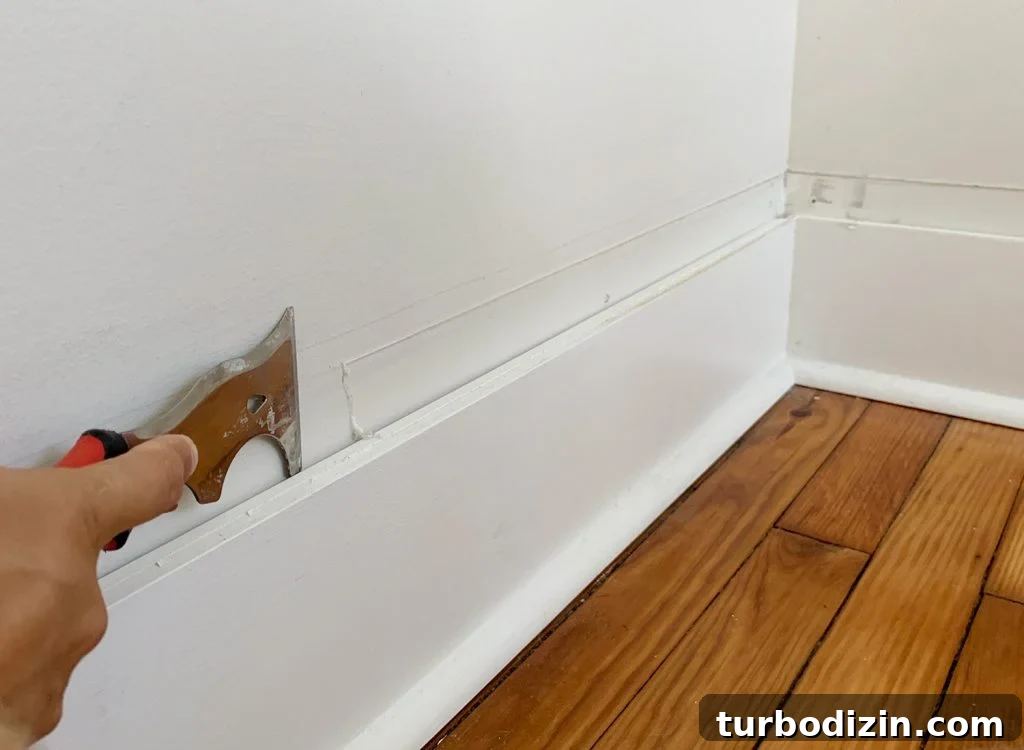

This depends on your existing baseboards. In this room a 1×6 baseboard served as the bottom rail, so we removed a thin decorative strip on top so battens could sit flush. Score caulk lines first with a utility knife to minimize drywall damage, then pry off trim gently. Patch and smooth the wall where needed before installing battens.

If you don’t have a substantial bottom rail already, consider installing a 1×6 board as a base before proceeding. We prefer a solid baseboard and thicker battens for a substantial look, though thinner options work when matched to slimmer base trim.

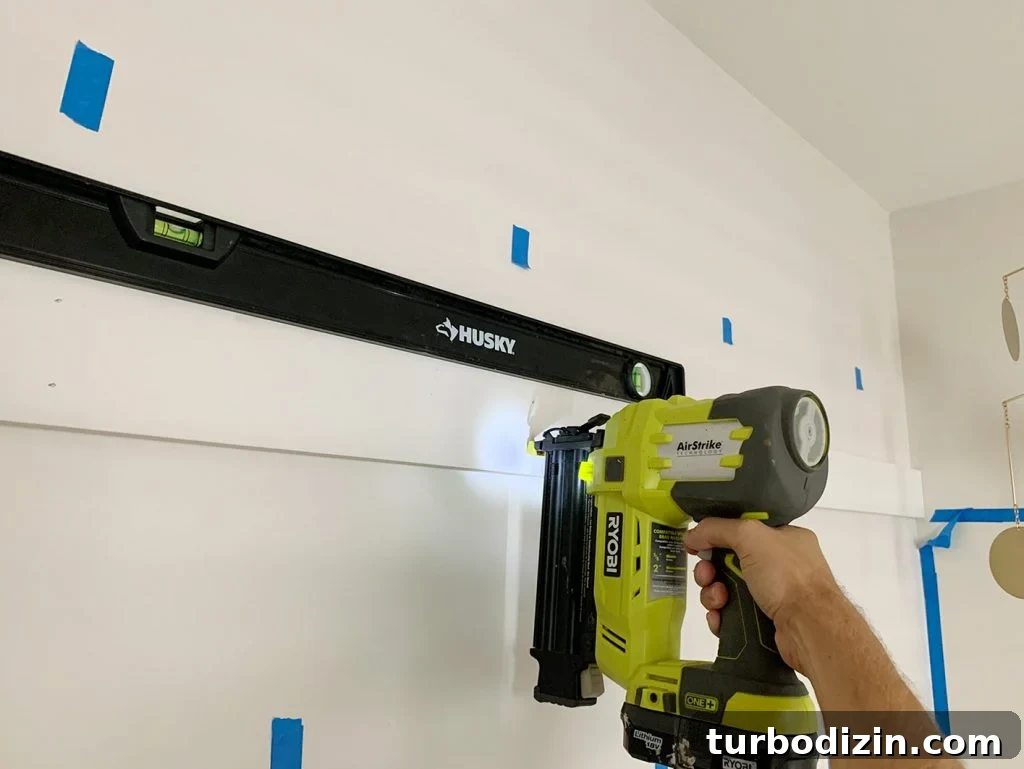

Step 4: Install Top Rail

Install the top rail (1×4) around the room at your chosen height. Use a long level as you go; in older houses floors and ceilings can slope, so align the rail to what looks visually level in the space rather than relying on a single measurement. Cut boards to length with a miter saw or have the store make the cuts. Nail the rail into studs where possible.

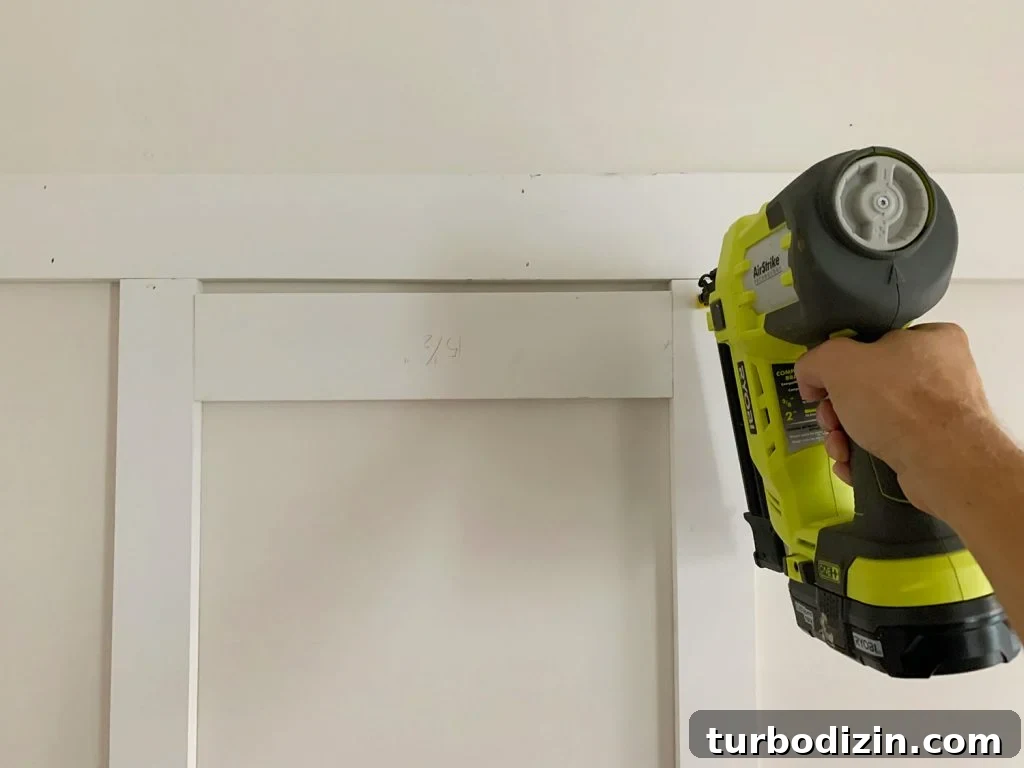

Step 5: Install Vertical Battens

Measure and cut each vertical batten to fit. Because walls can be out of plumb, we prefer measuring each piece individually to ensure a snug fit. Create a simple spacer from scrap wood to speed up consistent spacing—our spacer matched the center-to-center distance between battens.

Some installers use adhesive behind battens when nails don’t hit studs, but we avoid adhesive to minimize future wall damage. Several nails plus caulked and painted edges hold the battens securely for typical decor uses. Don’t hang heavy items on battens unless they are screwed into studs.

Step 6: Mind The Corners

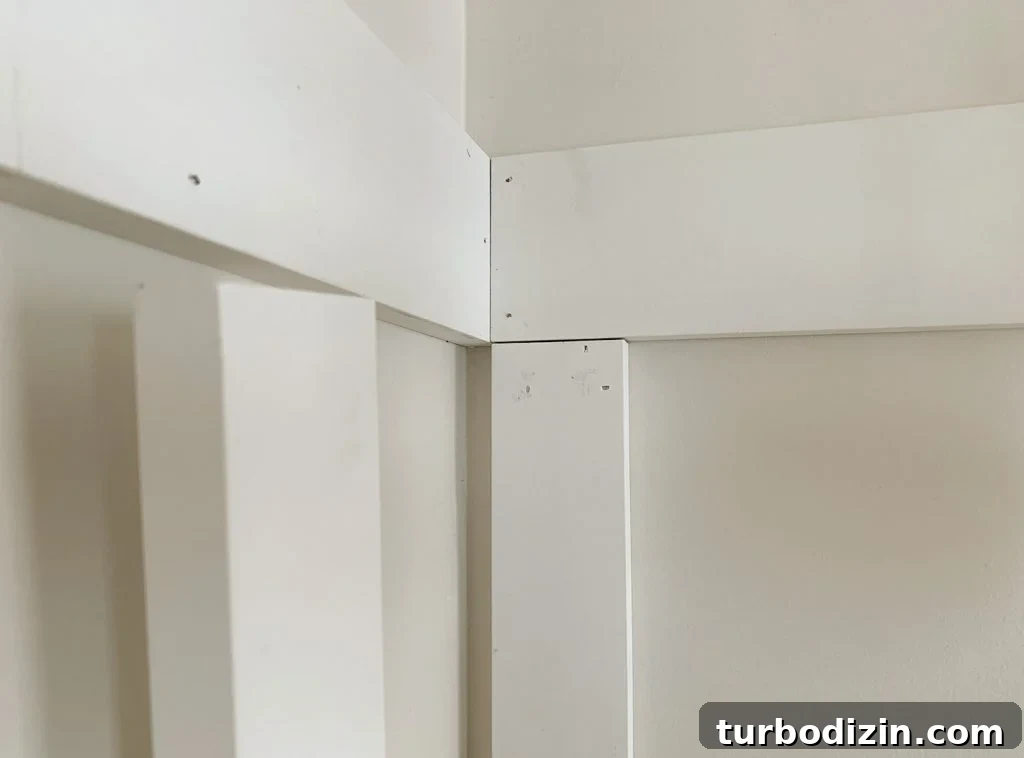

Plan spacing so corners look intentional. We like to center a batten in the room and space outward; when space doesn’t divide evenly, it’s fine to accept a cut batten at the end. Visually, corners look best when two full battens meet without overlapping—so set the corner battens slightly off the corner so both read full-width.

Step 7: Add Top Ledge

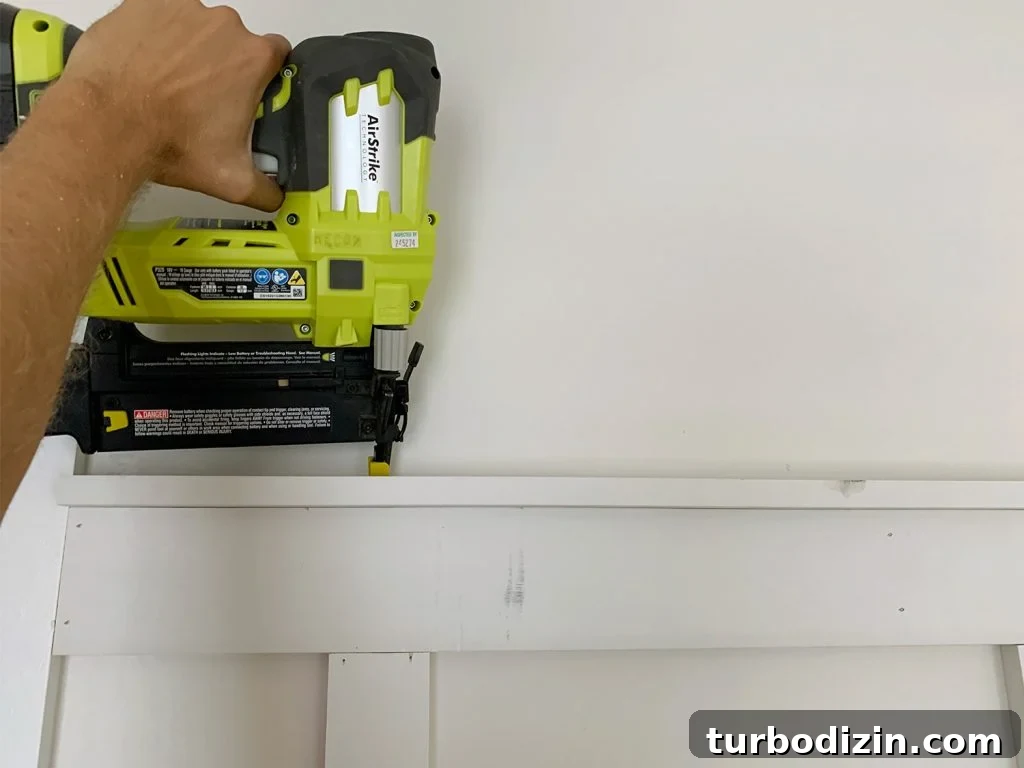

A top ledge adds a finished, substantial look and offers a place to lean artwork. We attached a 1×2 ledge along the top rail with nails. If you plan to lean heavy items, consider using screws or additional fasteners for extra strength.

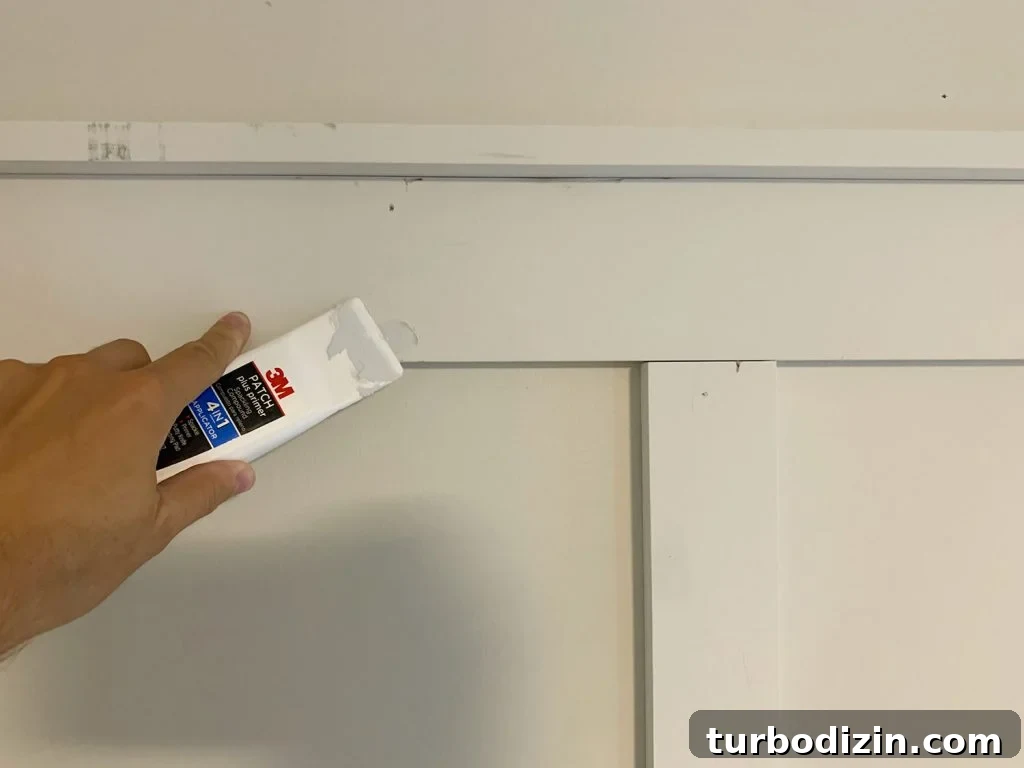

Step 8: Spackle & Sand Nail Holes

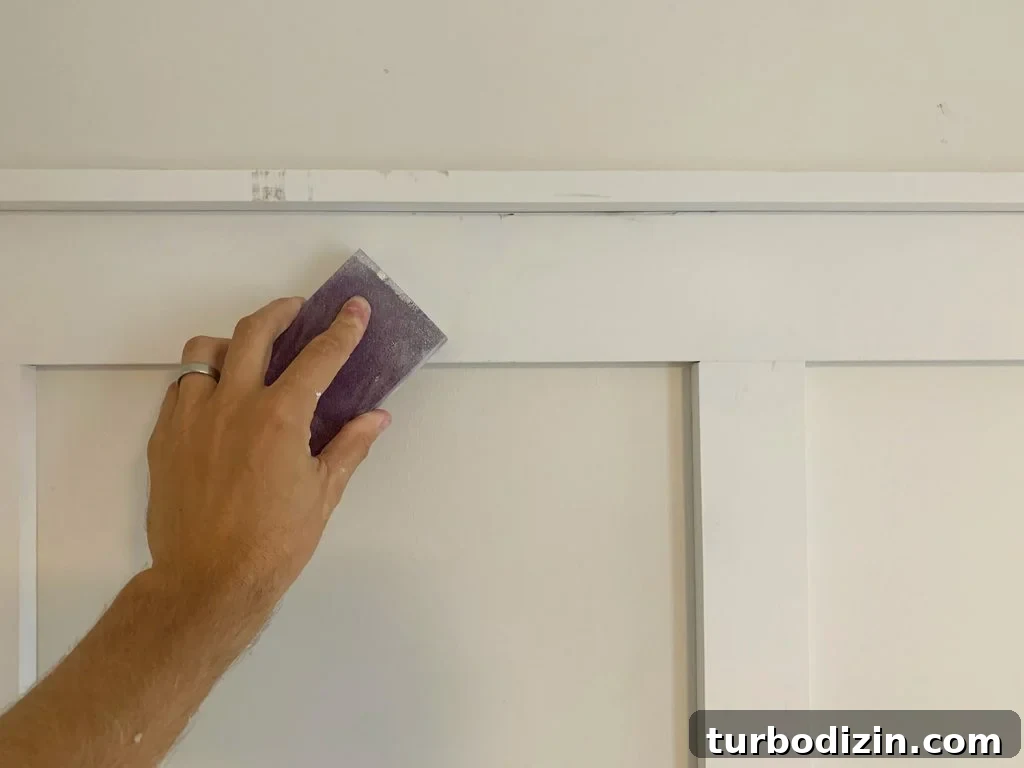

Fill nail holes and any small gaps with spackle or wood filler, then sand smooth. A hand tool or spackle knife makes quick work of this. Wipe off dust with a microfiber cloth before priming or painting.

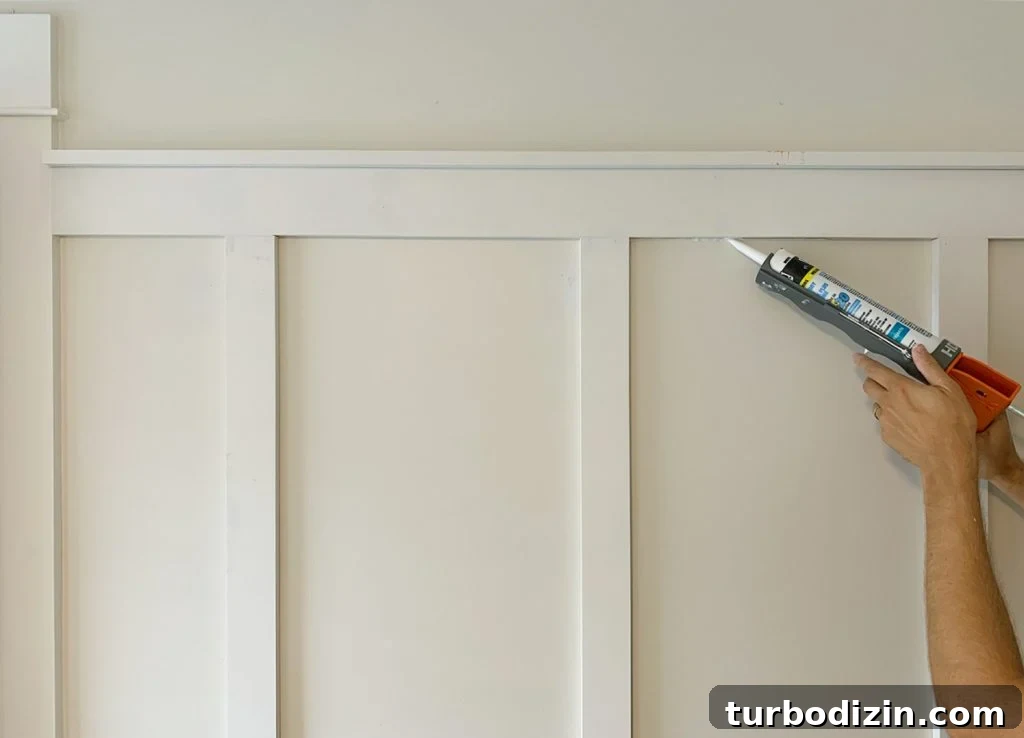

Step 9: Caulk Seams

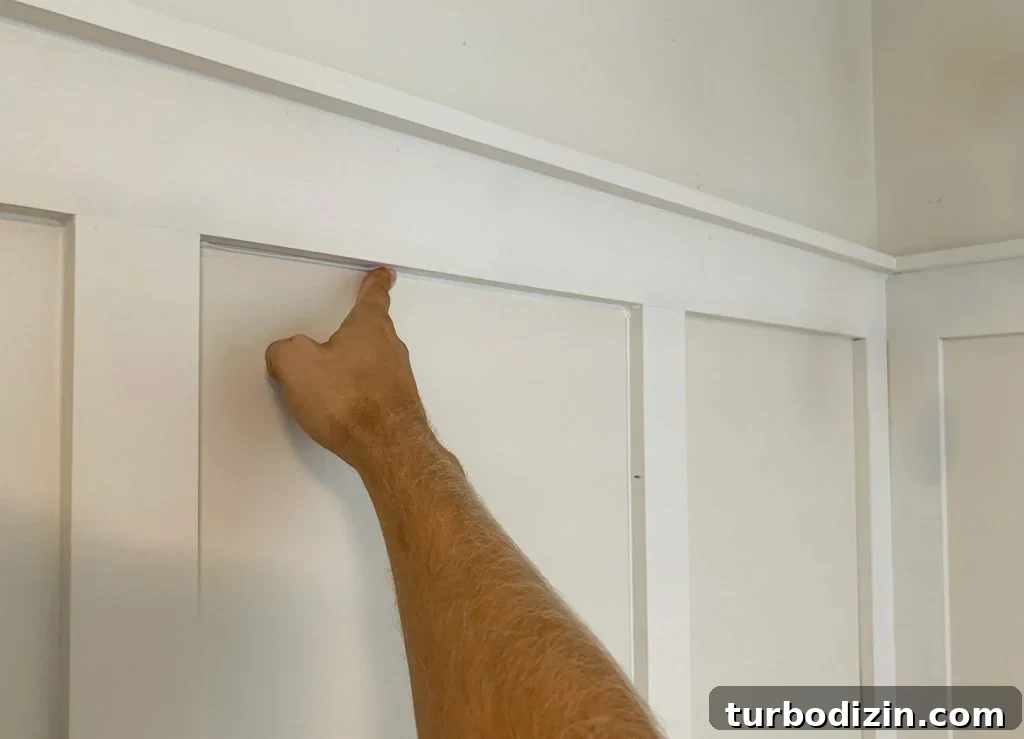

Run a thin bead of caulk where boards meet the wall and at batten seams to hide gaps and create a seamless appearance. Keep the tip opening small for better control and smoother lines. Smooth caulk with a wet finger or a caulk tool, wiping your finger in warm water between passes for a clean finish.

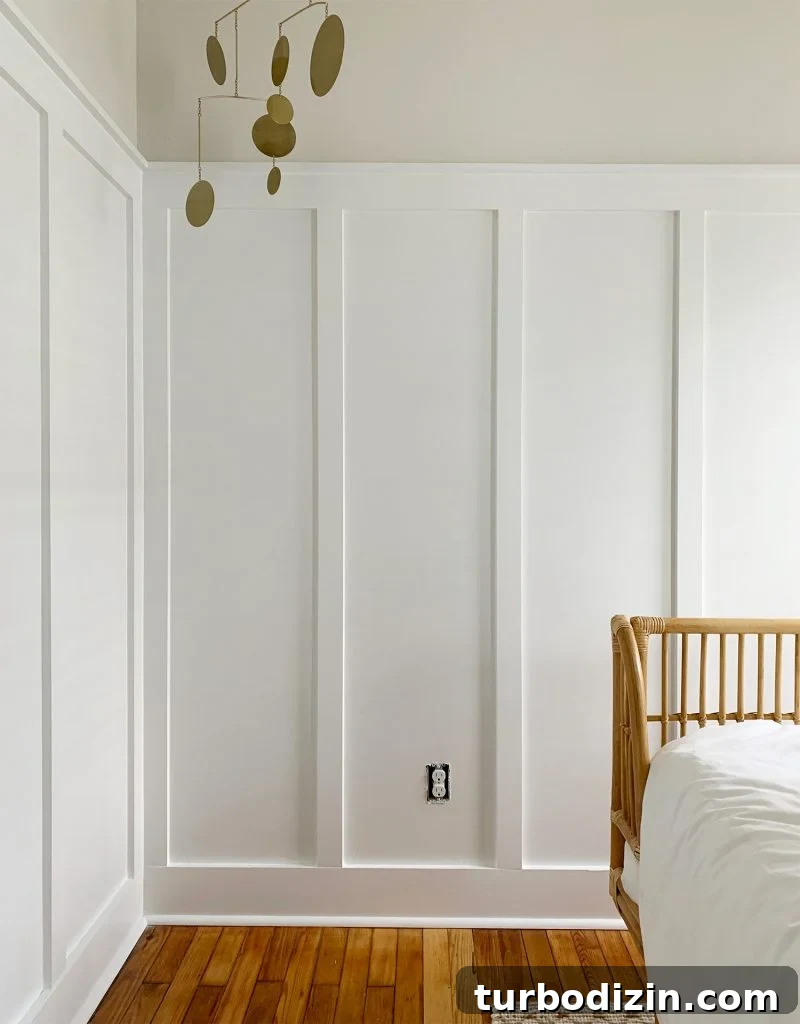

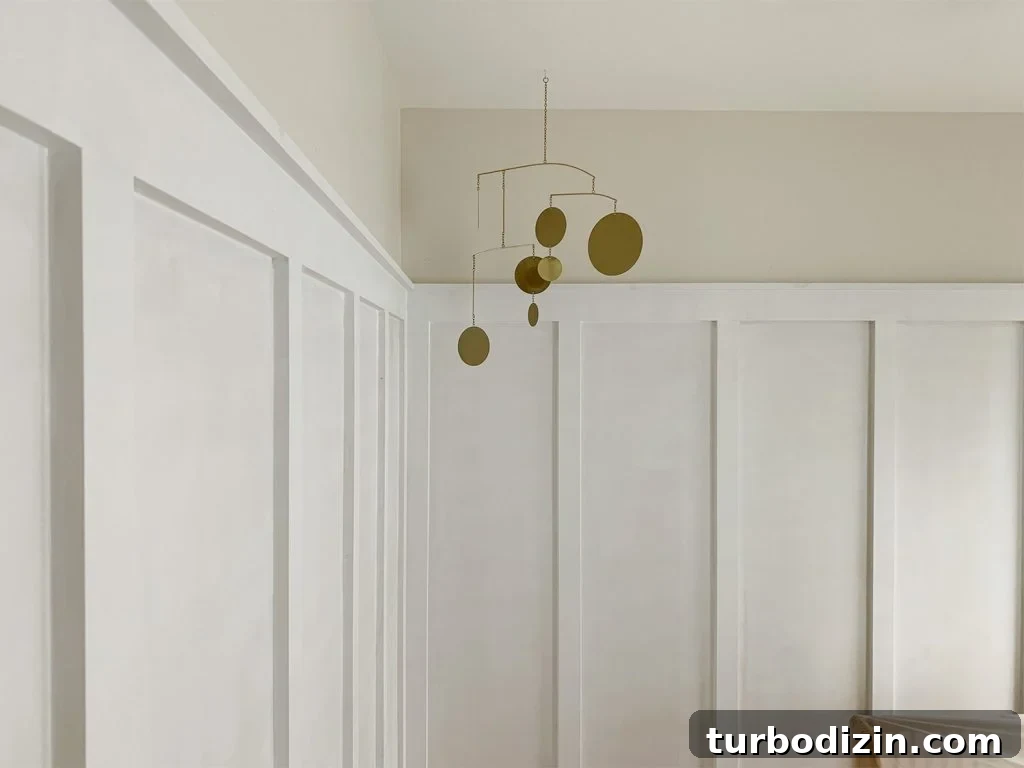

Step 10: Prime & Paint

Prime any areas where you spackled or caulked to prevent flashing. Even pre-primed boards benefit from a light primer coat over patched spots. After priming, apply one or two coats of your chosen paint. We used a semi-gloss trim color for a crisp, durable finish, but this treatment also looks great in a tone-on-tone finish or a richer color.

Is board & batten outdated?

No. Board and batten is timeless and highly adaptable. Keep it fresh by choosing crisp paint colors or updated tones to match your decor.

What kind of wood can you use for board & batten?

Pre-primed pine, lattice strips, or MDF are common choices. MDF gives a smooth finish when used as background boards but avoid MDF in damp areas. For exterior installs, use pressure-treated wood or naturally rot-resistant species like cedar.

Where does board & batten look best?

It works well in hallways, entries, bedrooms, dining rooms, and living spaces. Aim to have enough wall length for at least three panels so the pattern reads intentional rather than cramped.

How high should board & batten be?

Between half and two-thirds up the wall is common, but you can go floor-to-ceiling. Use painter’s tape to visualize the height and consider doors, windows, and ceiling height. Often slightly higher than true halfway looks more balanced.

How far apart should board & batten be?

Spacing of 12″ to 20″ between battens is typical. Larger rooms can handle wider spacing. Test with painter’s tape and adjust for each wall so corners and openings look balanced.

Can you install board & batten on textured walls?

Yes, but you’ll need thin, smooth boards installed over the textured surface before adding battens. Thin MDF or plywood panels screwed into studs will create a smooth substrate.
