Behold our DIY wire trellis—something I’ve wanted to build for years, and I’m thrilled with the result. With just basic tools, wire, hooks and a climbing plant, you can create a clean, modern trellis that transforms a plain wall. A little planning goes a long way, so here’s a clear guide to help you make one yourself.
After we painted our house white last fall, the back of the garage begged for a feature. A diamond wire trellis felt like the perfect, chic accent to complement the clean brick.
Wire Trellis Before & After

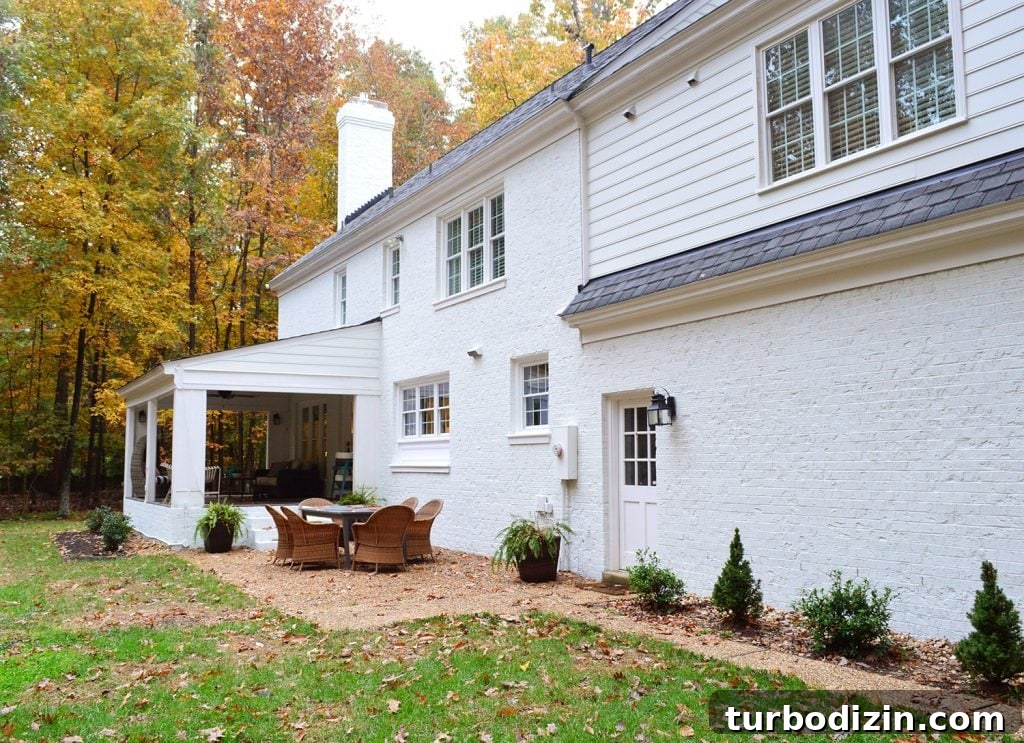

Before installing the wires the wall felt empty. We wanted a design that felt balanced with the door and surrounding elements, so we tested sizes and placement before drilling.

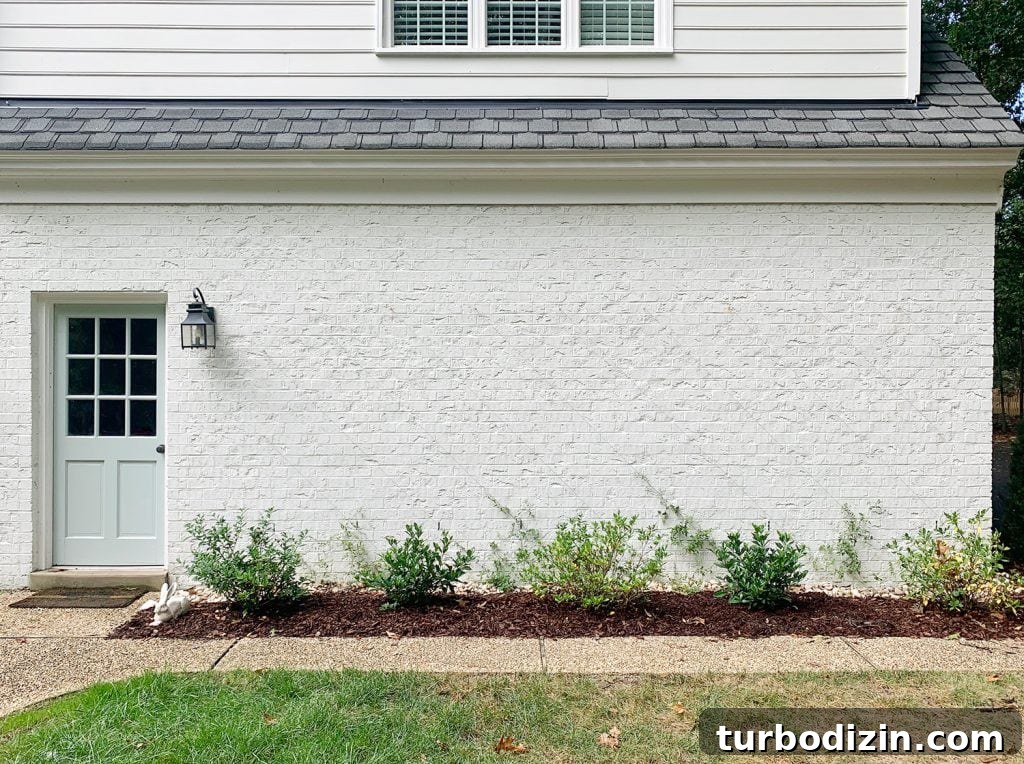

After installing the wire pattern the diamonds were visible, although the clematis we planted were still small at first.

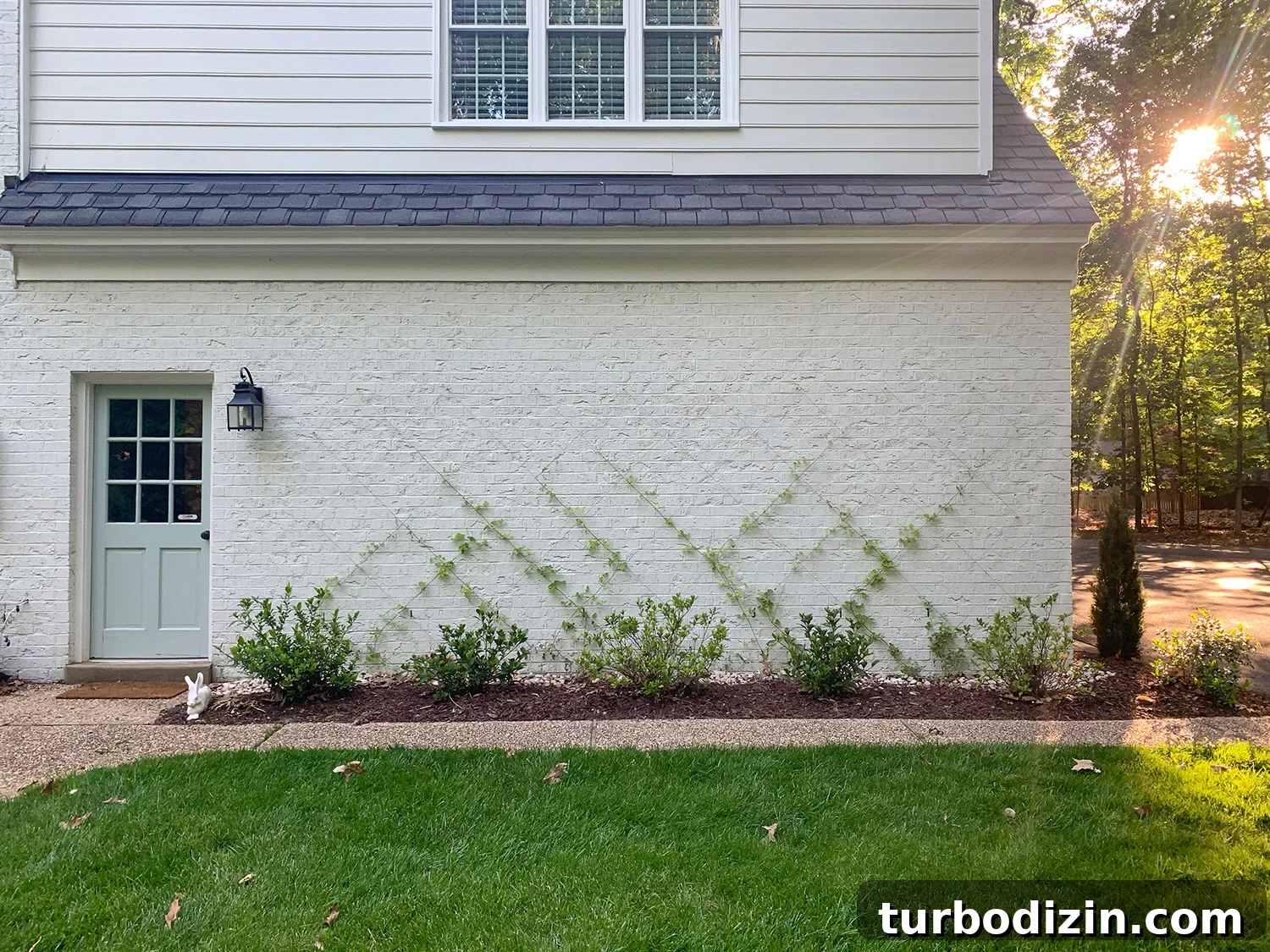

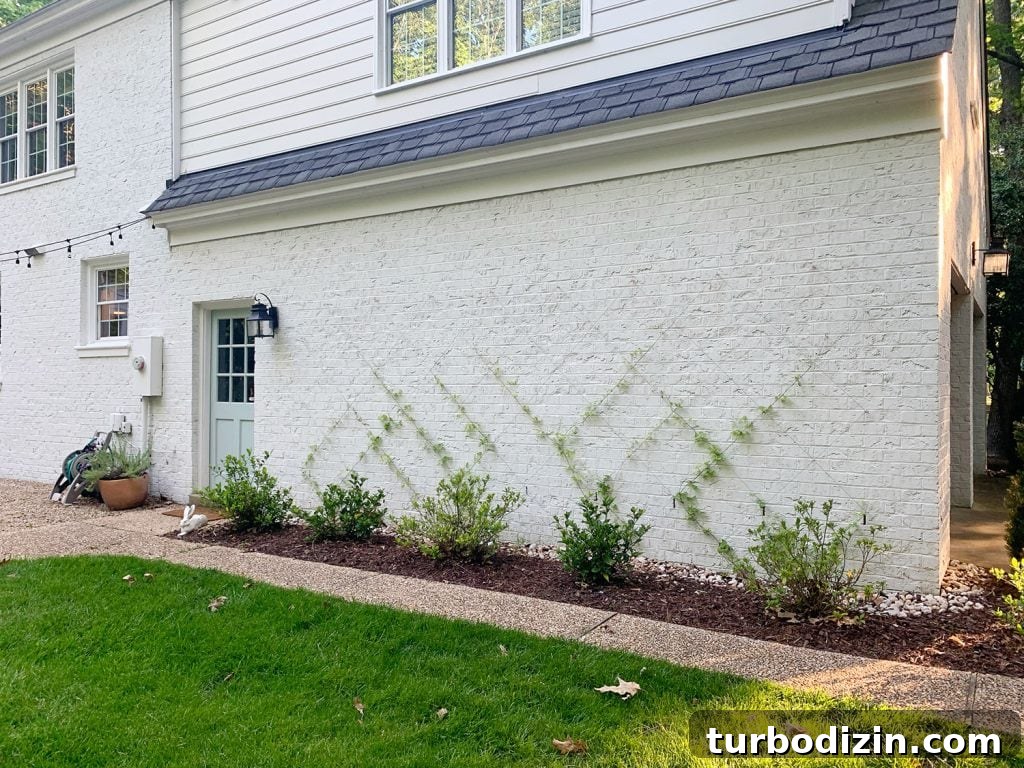

Just a couple months later the vines made impressive progress, filling the diamonds and softening the wall. It’s a great reminder that these projects grow into their full effect over a season or two.

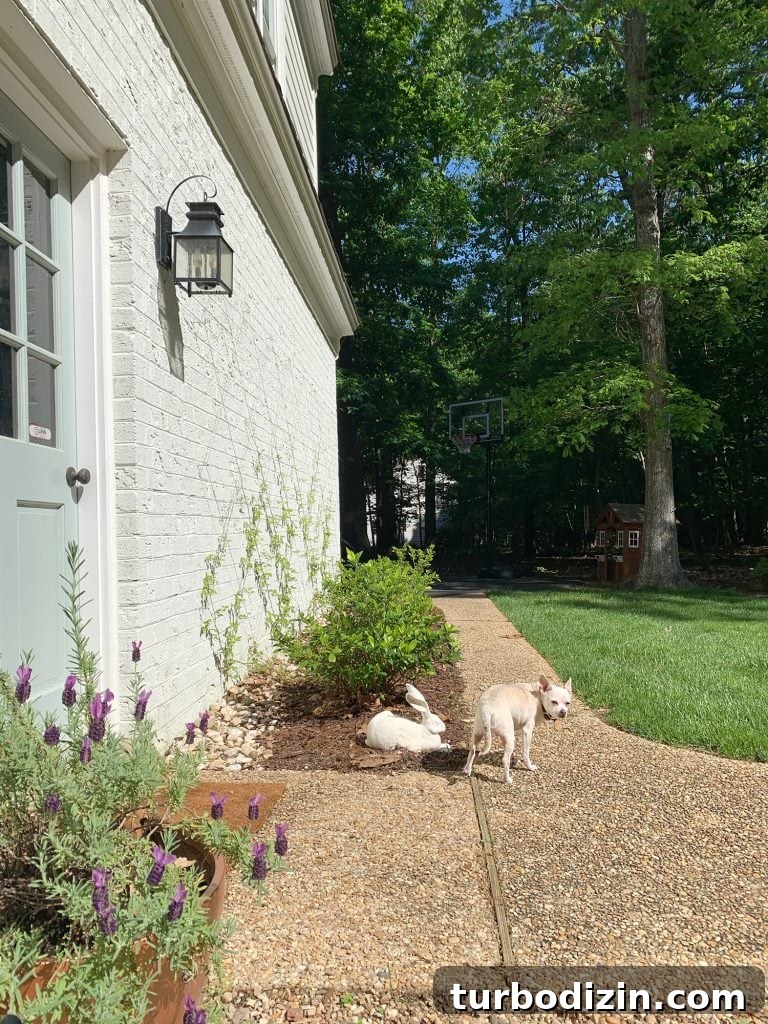

Friends even celebrated the small victory—which felt appropriate for a project that was both practical and pretty.
If you like this look, you can recreate it yourself. Below are the materials, steps, and tips we used for a neat diamond-pattern trellis on brick.
Materials & Tools
- 1/16″ galvanized steel wire rope (we used three 50 ft spools)
- 1/16″ aluminum ferrules (for crimped loops)
- Stainless steel screw eye hooks (we used about 22)
- Plastic brick anchors (for masonry installations)
- Hammer drill and masonry bits*
- Wire cutters
- Needlenose pliers
- Hammer
- Level
- Painter’s tape
- Marker or pen
- The climbing plant of your choice (we used clematis)
*Note: These tools are for installing on brick. Other siding types may require different anchors or a standard drill.
Step 1: Plan Your Trellis

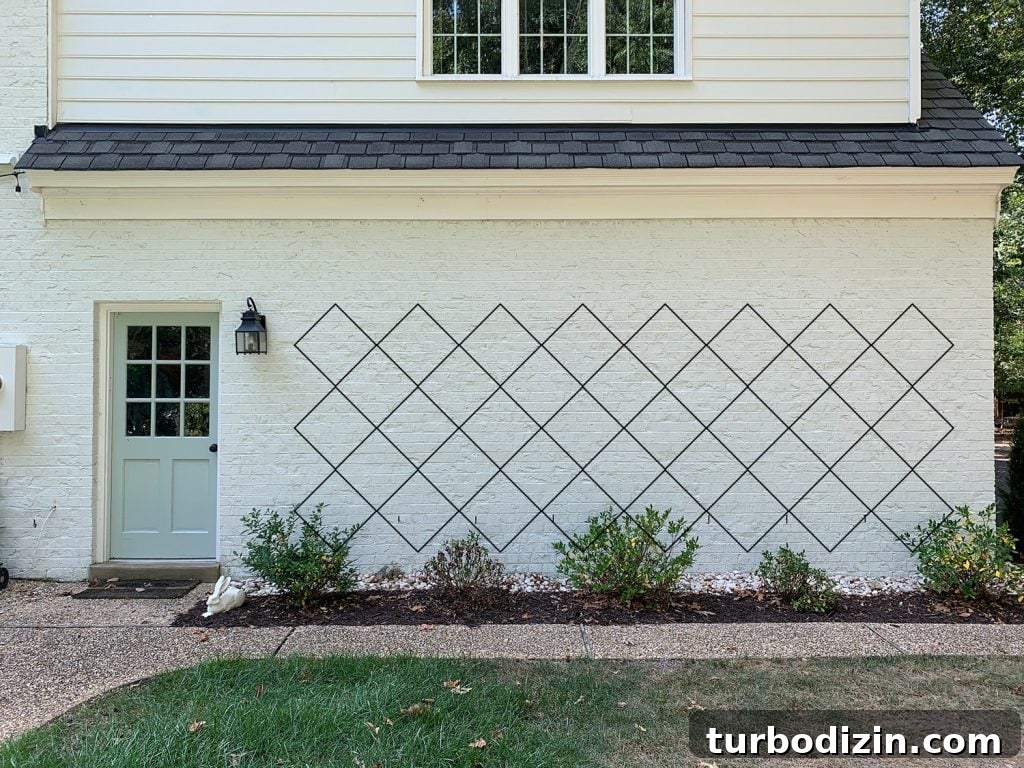

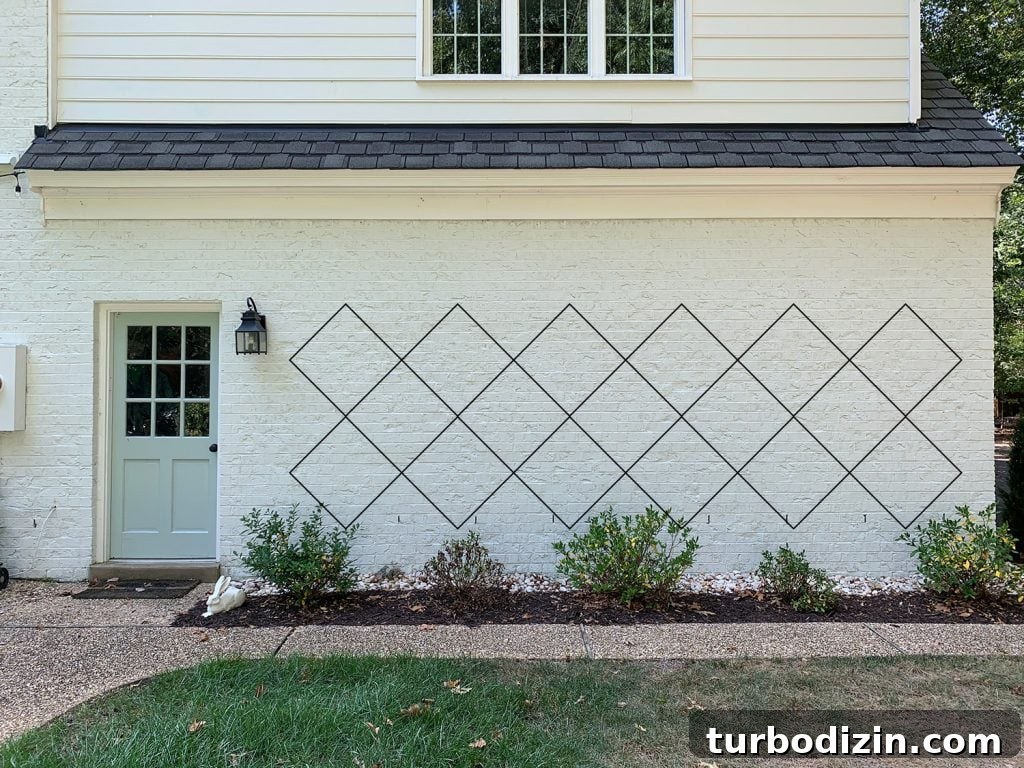

Decide the size, placement and pattern before you start. We mocked up several options digitally to test scale and alignment with nearby features like the door. Planning helps you determine spacing, anchor count and the amount of wire you’ll need. Including a measuring stick in a reference photo can make transferring dimensions to the wall easier.
Step 2: Map the Pattern on the Wall

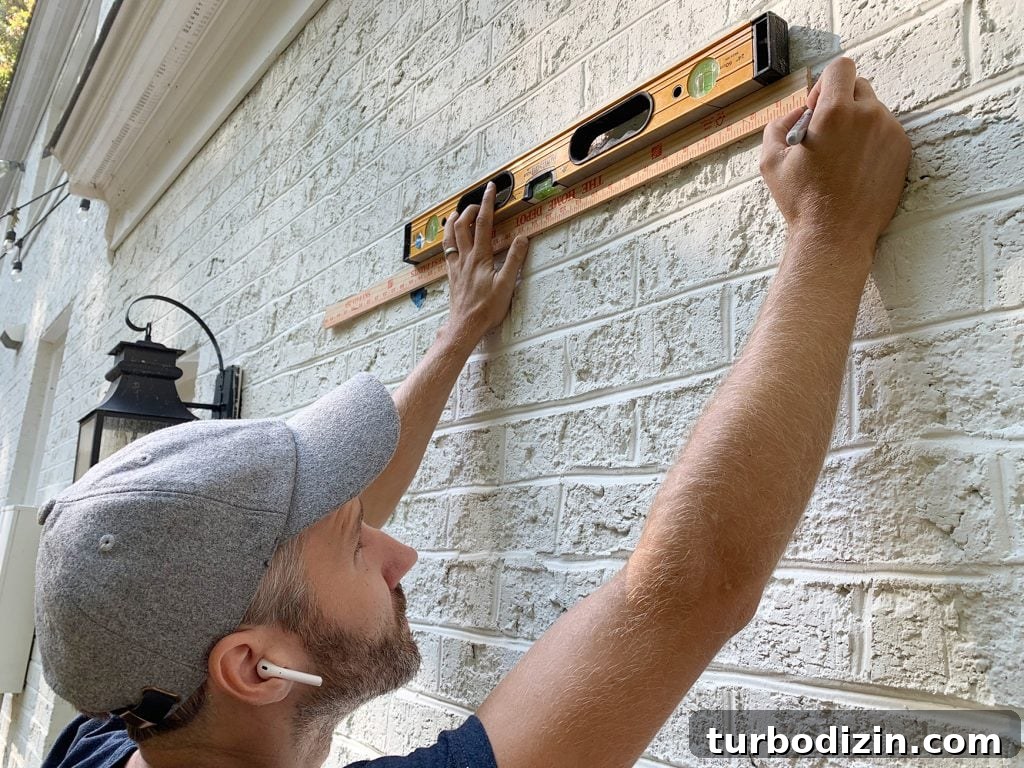

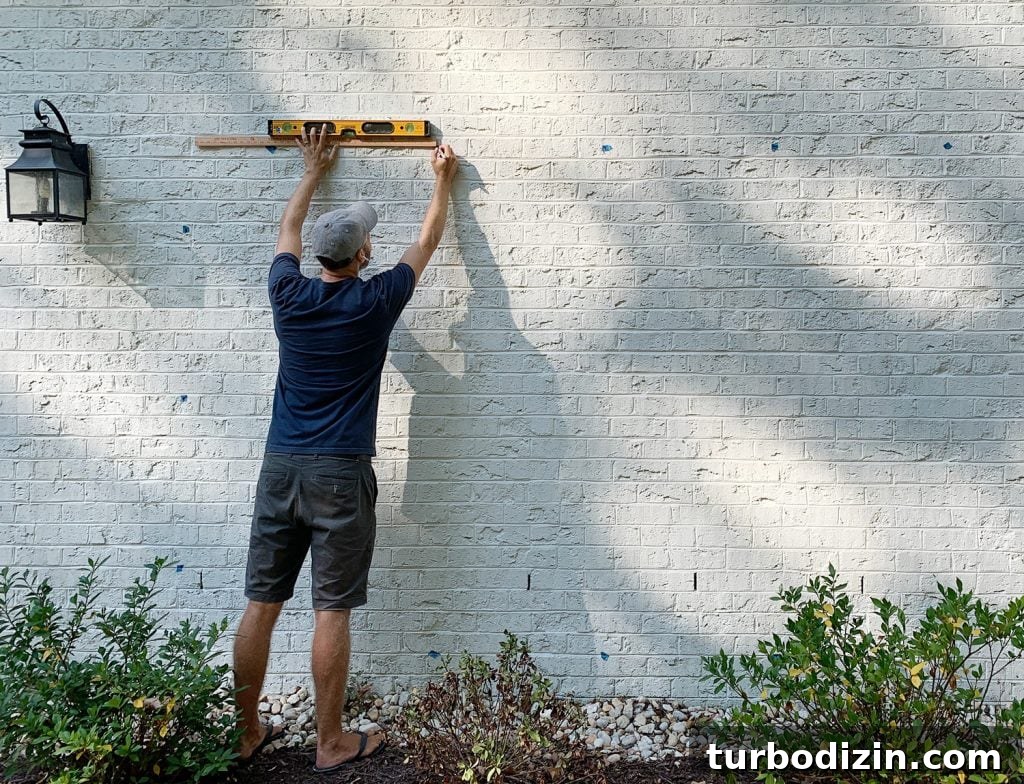

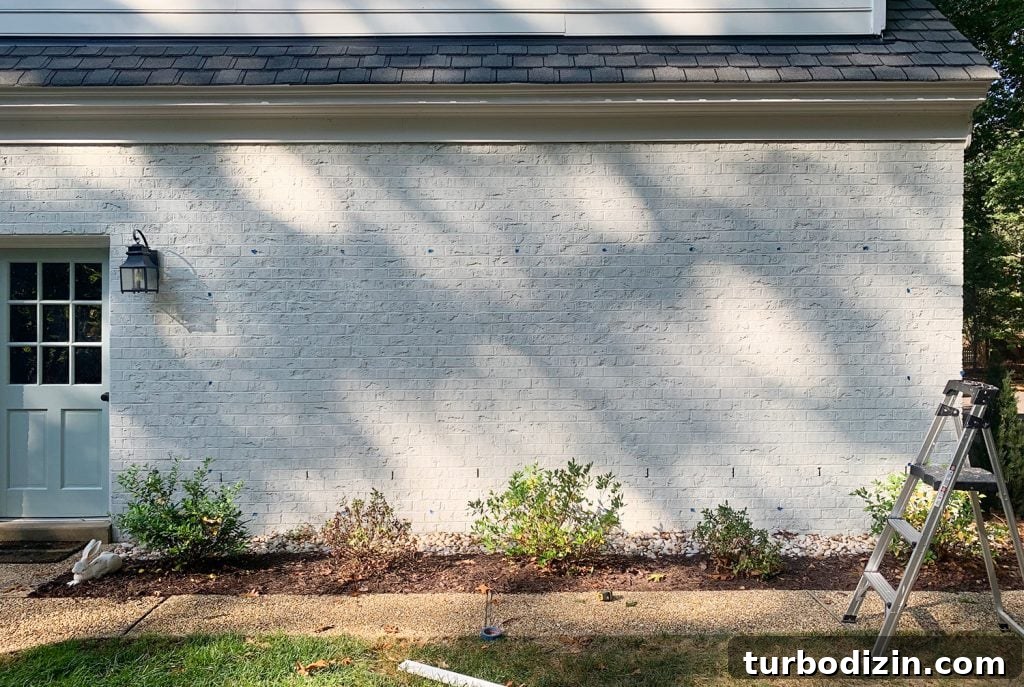

Transfer your design to the brick by marking anchor points with painter’s tape and a marker. Use a level and a yardstick to keep spacing consistent. We settled on 25″ between diamond points. Double- and triple-check measurements—precision matters for a symmetrical pattern.
Step 3: Install Anchor Points

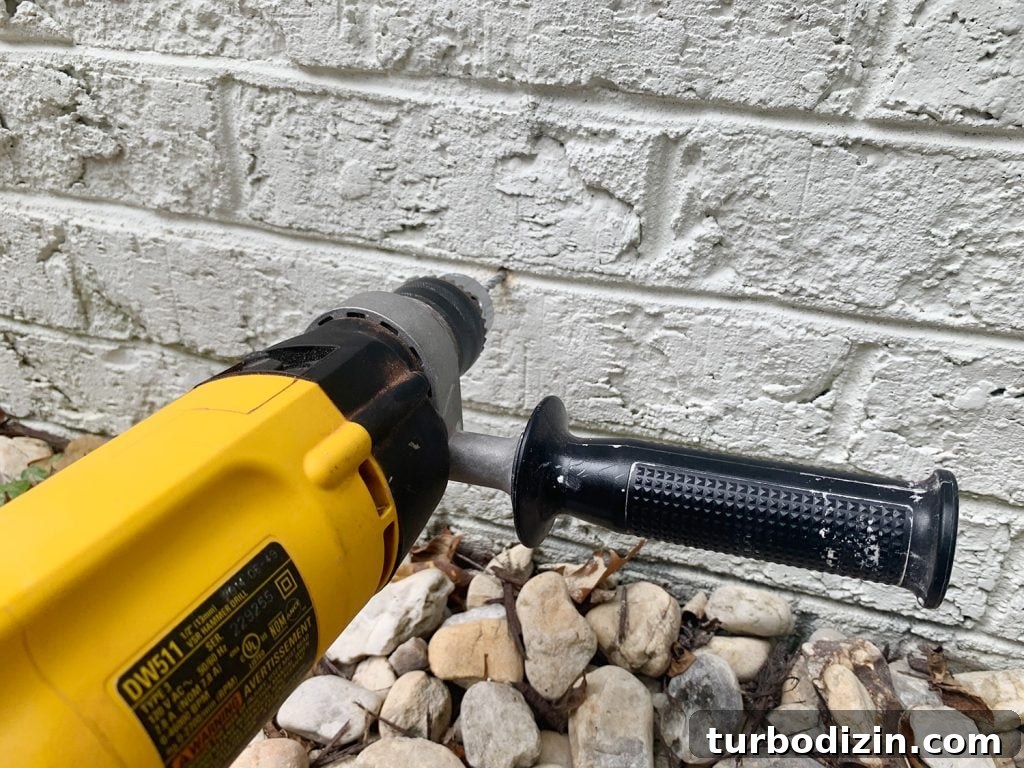

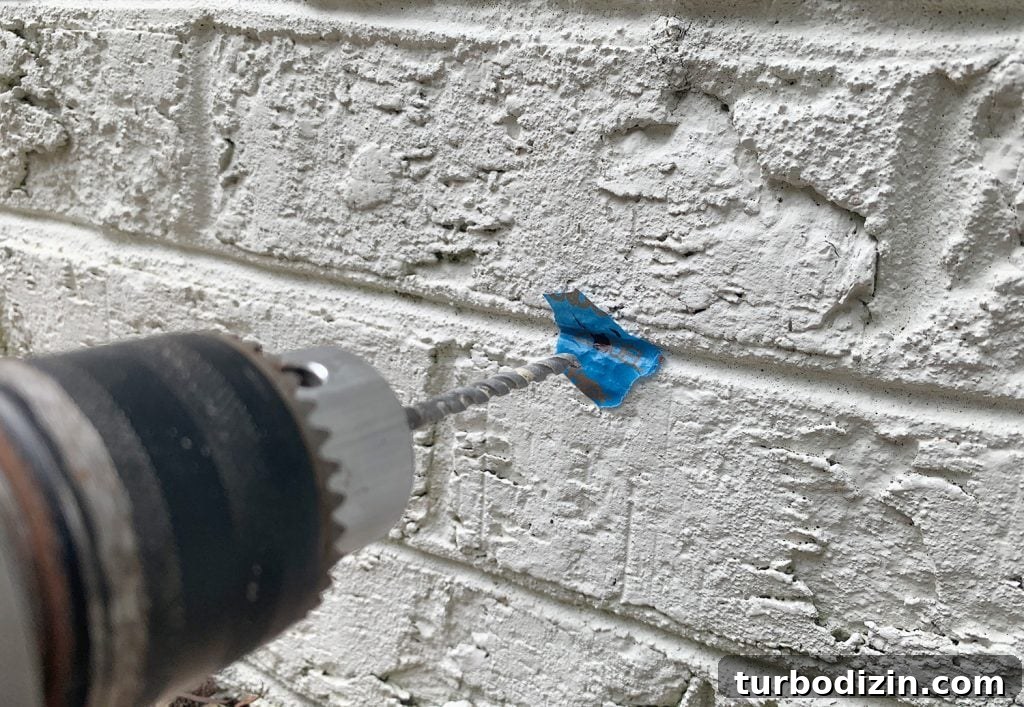

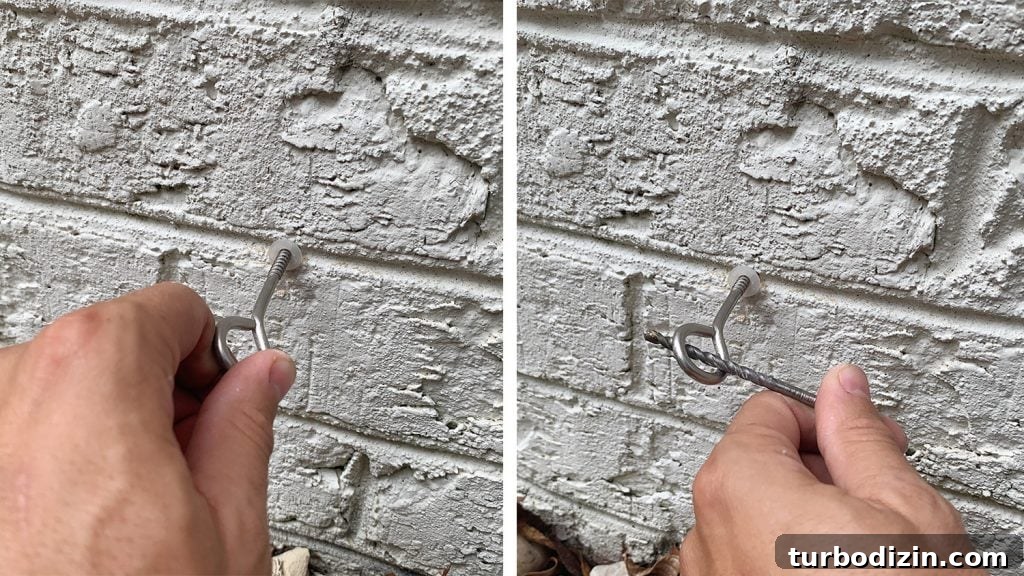

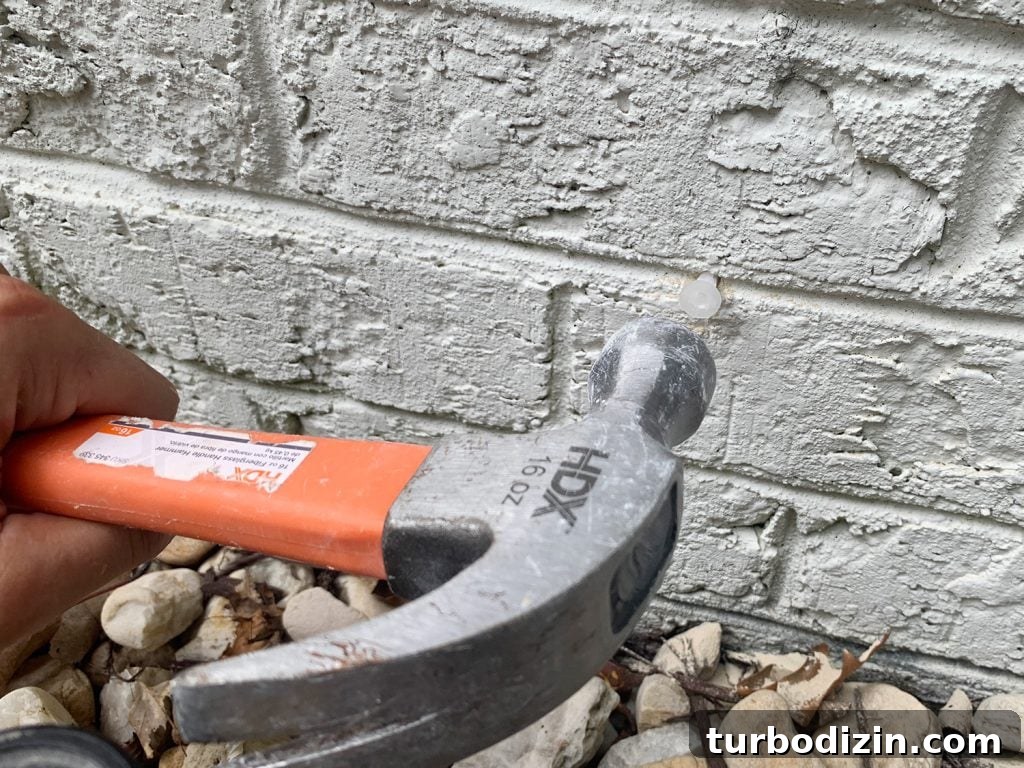

Start with a small pilot hole at each marked point, then drill larger holes for the anchors. A hammer drill with a masonry bit makes the work straightforward. Tap plastic masonry anchors into the holes, then screw in eye hooks. We used 3″ eye hooks so the wires would sit a bit off the wall, giving the vines room to wrap around both sides of the wire.
Step 4: Prepare and Attach Wire

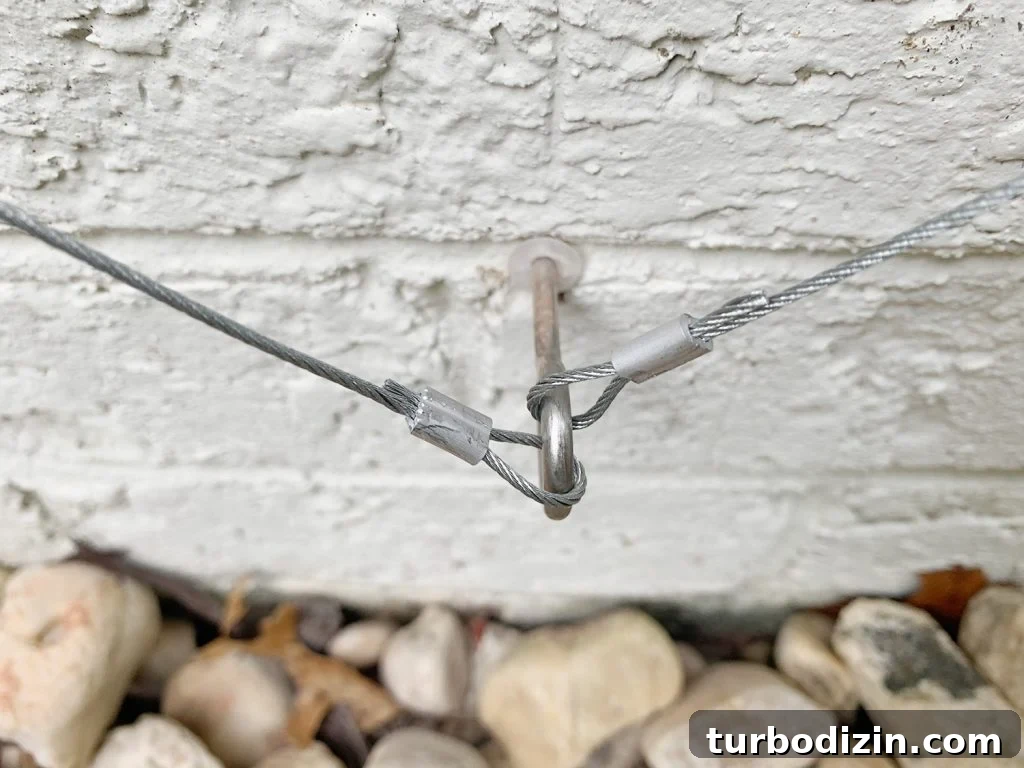

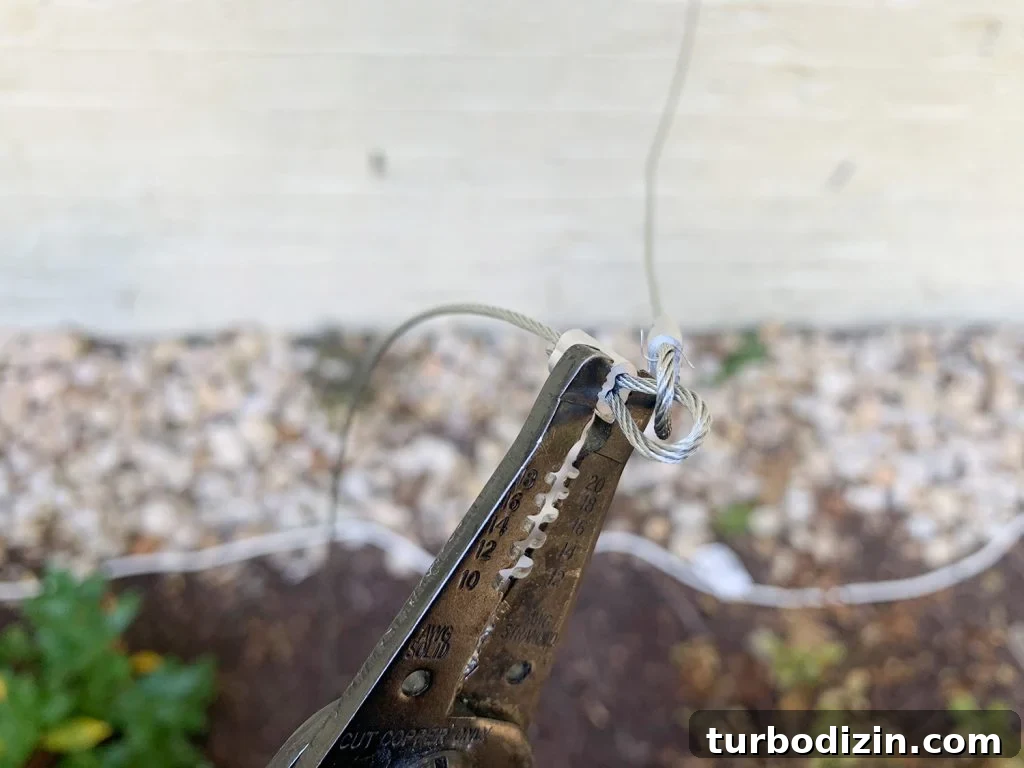

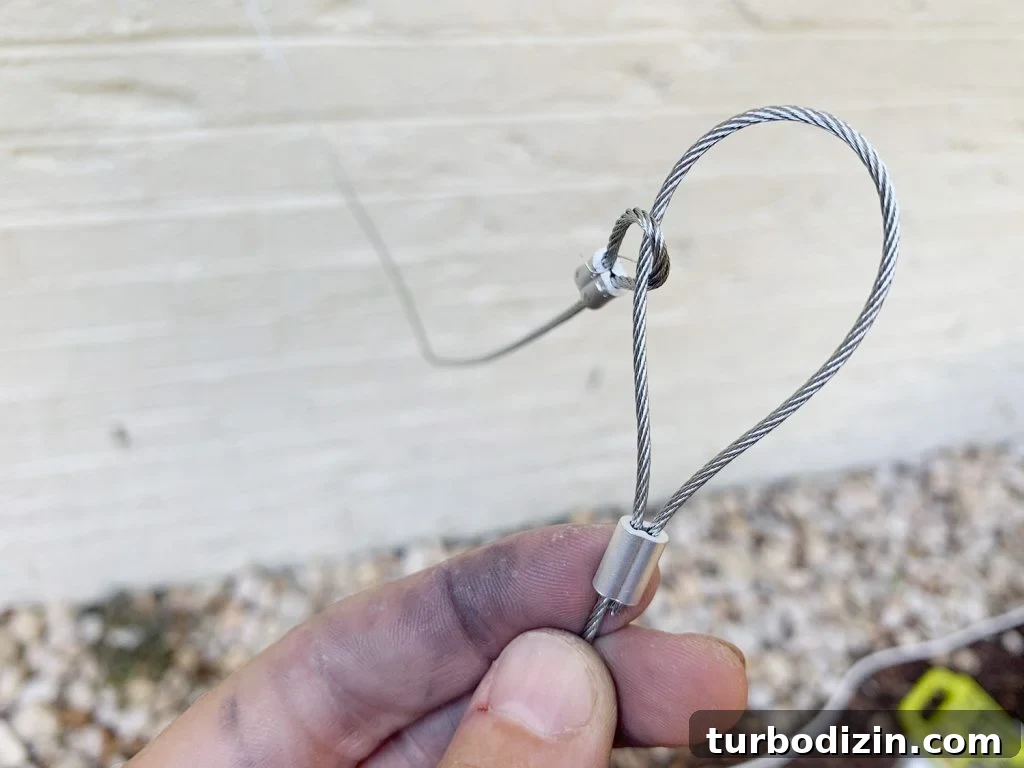

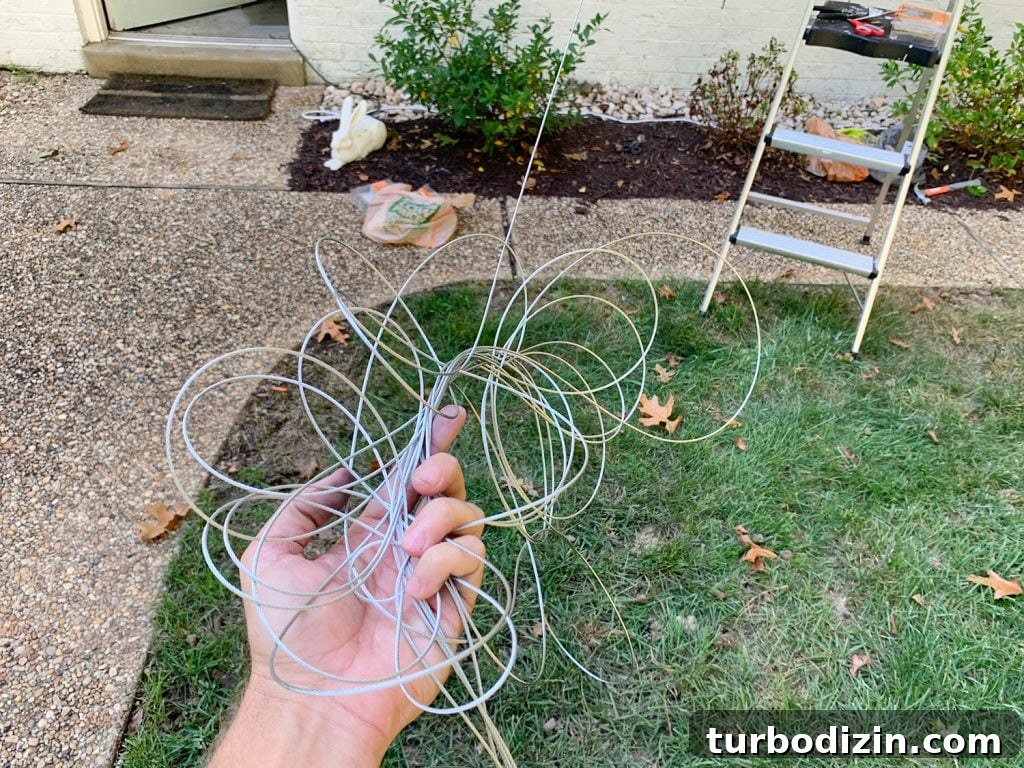

Unwind your galvanized wire and cut lengths as needed. Make looped ends by threading the wire through an aluminum ferrule and back through its other side, then crimp the ferrule to secure the loop. This creates a reliable connection point to hook onto the eye screws.

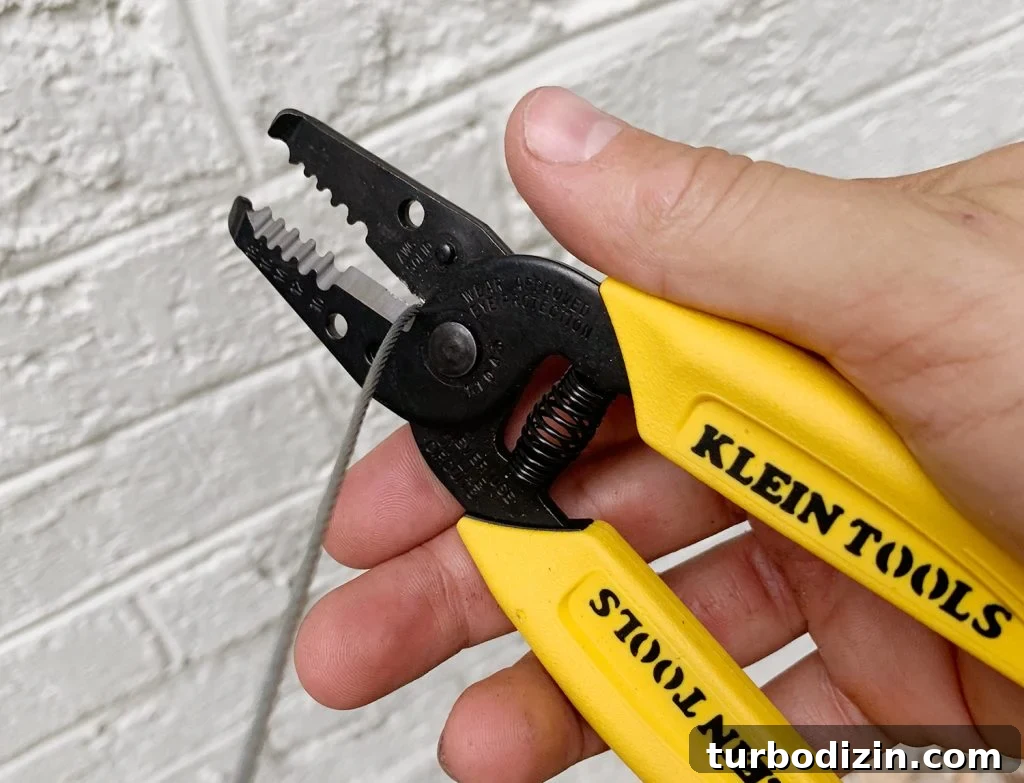

If you need to cut wire, use quality snips. We found an alternate method of placing the wire on a hard surface, positioning a chisel at the cut point and striking with a hammer yields a clean cut without dulling cutters—just protect the surface underneath.
Step 5: String the Wire

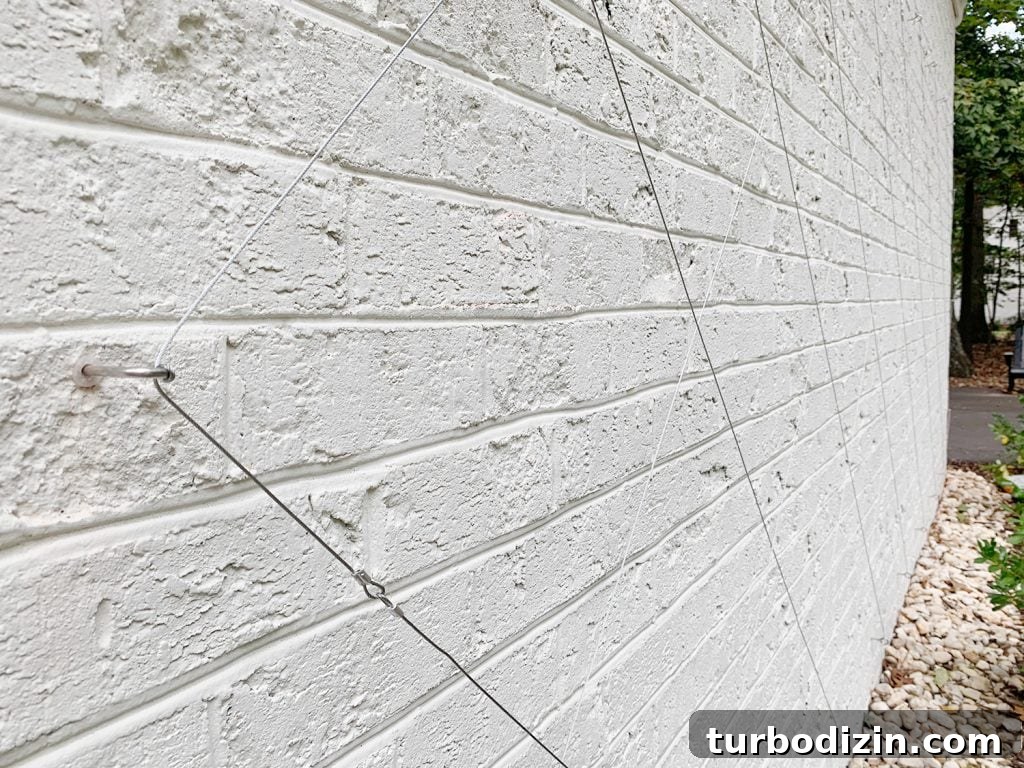

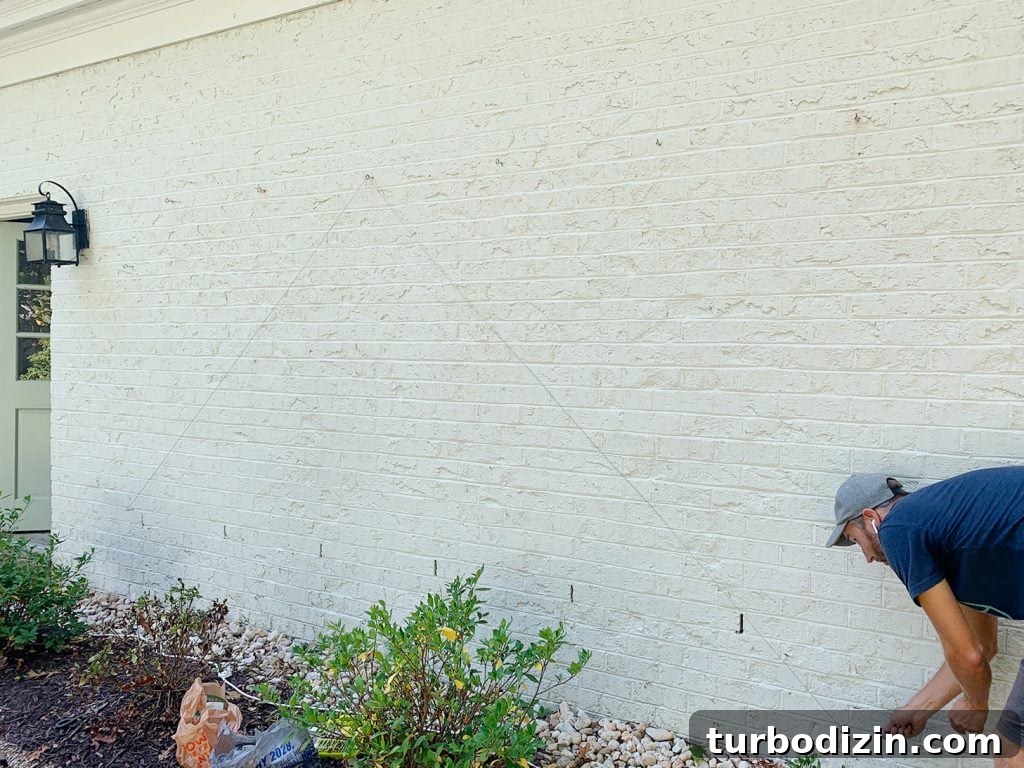

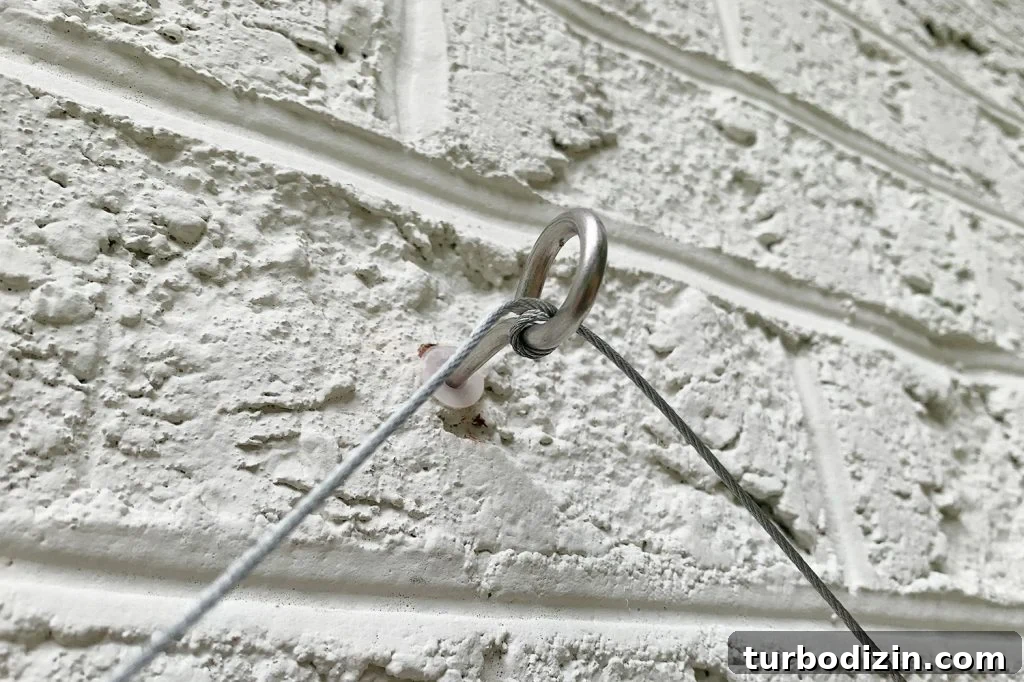

Thread the wire through the eye hooks to form the diamond pattern. Work methodically so you connect the correct sequence of hooks—this keeps diamonds even. We looped the wire through each eye twice to help maintain tension as we worked. A turnbuckle can be added later if you need to tighten the system over time.
Having a second person makes this step easier: one holds tension while the other crimps ferrules or secures ends.
Step 6: Plant Your Vine

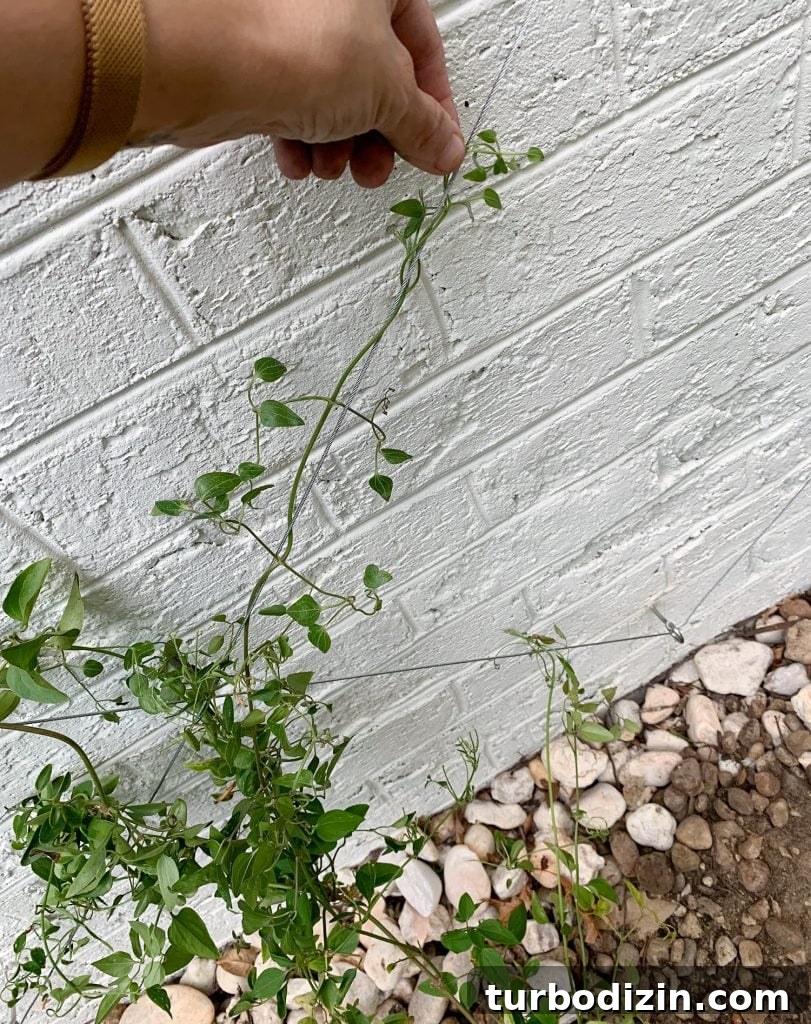

Choose a climber suited to your climate and surface. Clematis was recommended to us because it grows quickly, flowers beautifully and is generally gentle on brick. Plant several vines spaced along the base of the trellis, gently guide shoots onto the wires, and secure them with plant tape if needed. Water regularly while plants establish and mulch the base to conserve moisture.
Step 7: Watch It Grow

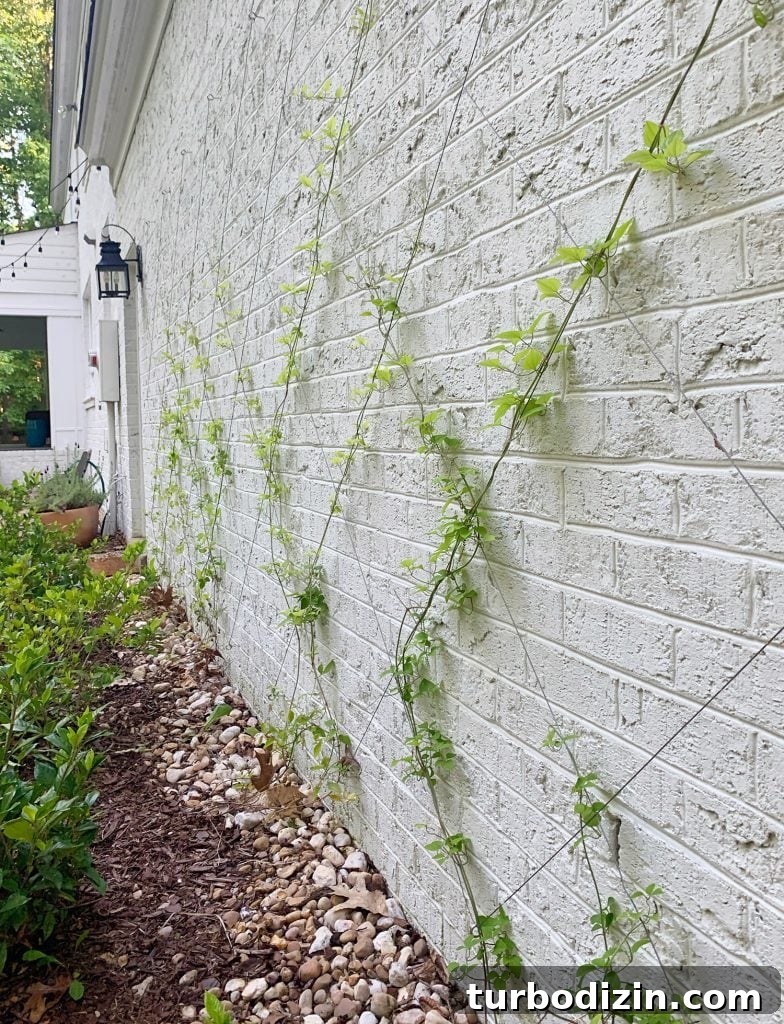

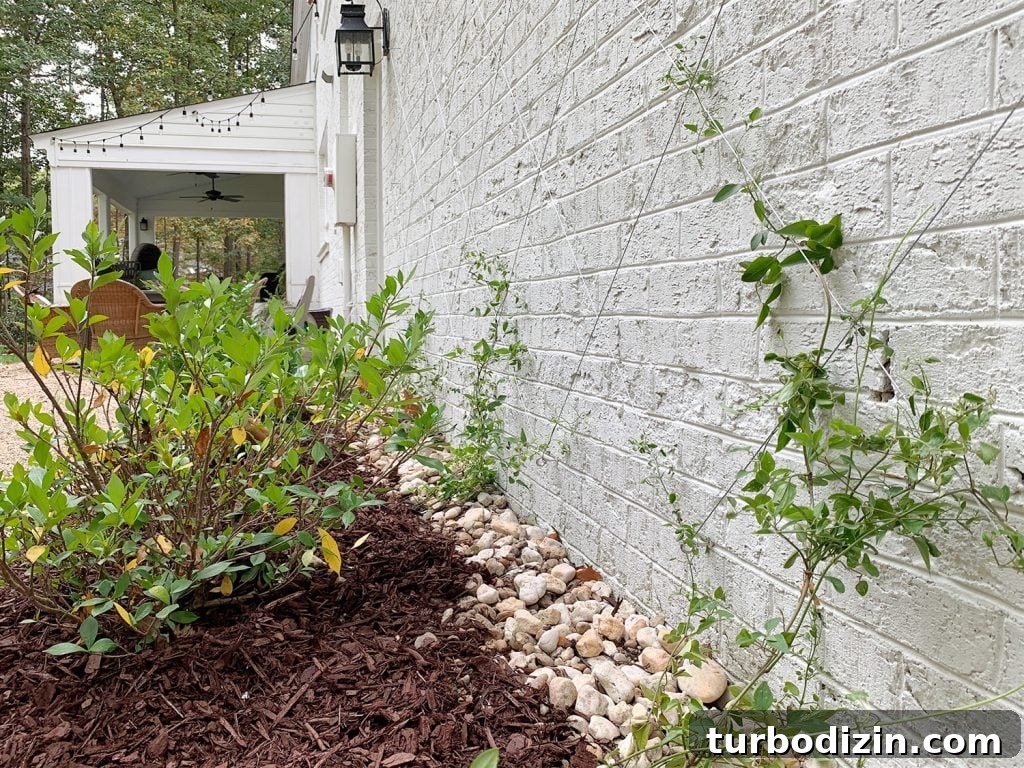

Patience is required, but within weeks you’ll see new growth climbing the wires. Over a season the trellis will fill in and add texture to the wall. Regular care—watering, light pruning and guidance of shoots—keeps things tidy and helps the plants cover the pattern evenly.

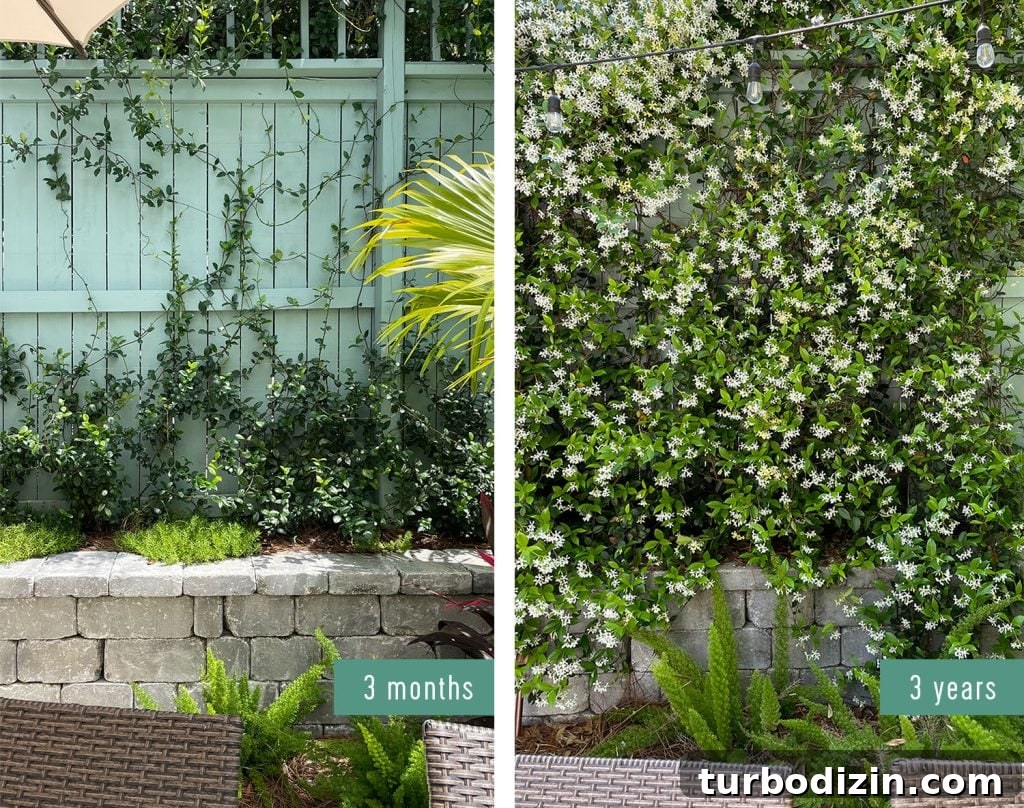

We later used a similar technique on a pool fence with horizontal wires for star jasmine, which filled in beautifully over a few years. Whether you choose diamonds or horizontals, wire trellises offer a low-profile, modern support for many climbers.
More Trellis & Plant Projects
- Easy DIY privacy trellis
- DIY outdoor plant shelf
- Window plant shelf build
- Installing drip irrigation
- Protecting outdoor plants in a freeze
- Fiddle leaf fig care guide
- Tree philodendron care guide
- Monstera deliciosa care guide
- Snake plant care guide
With careful planning, accurate marking and the right materials, a wire trellis is an affordable way to add vertical interest to brick or other sturdy surfaces. Enjoy watching your wall come alive as your vines climb and bloom.
